JUBILEE (Gottlieb 1955) Schematic
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

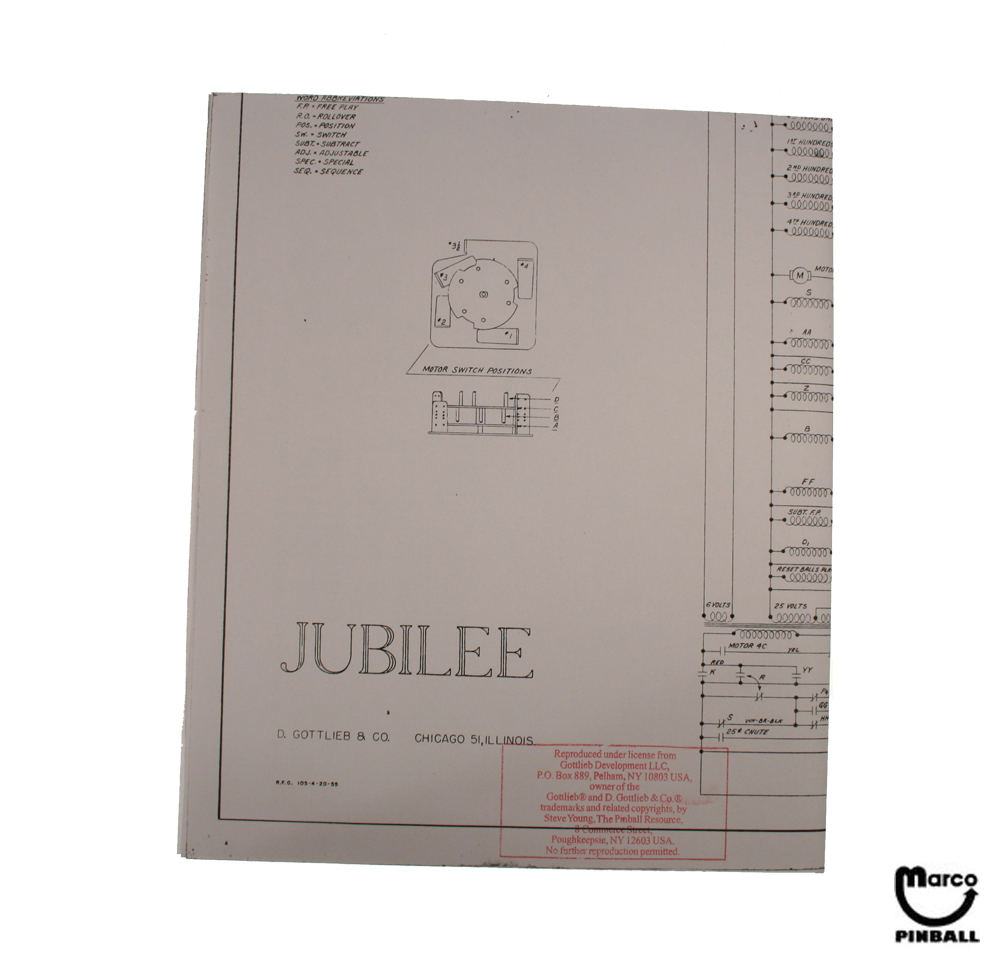

Full size electrical schematic wiring diagram for 1955 Gottlieb JUBILEE pinball machine.
