X's & O's (Bally) Backbox tech chart

#DOC1736-TC

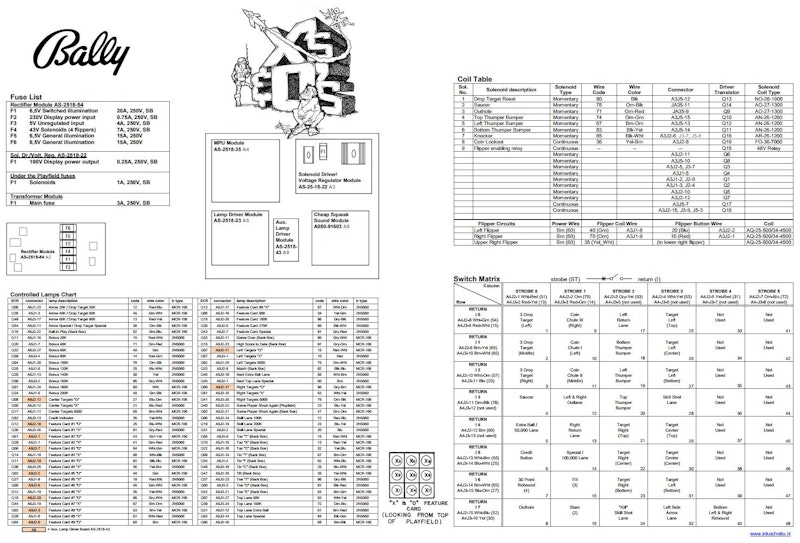

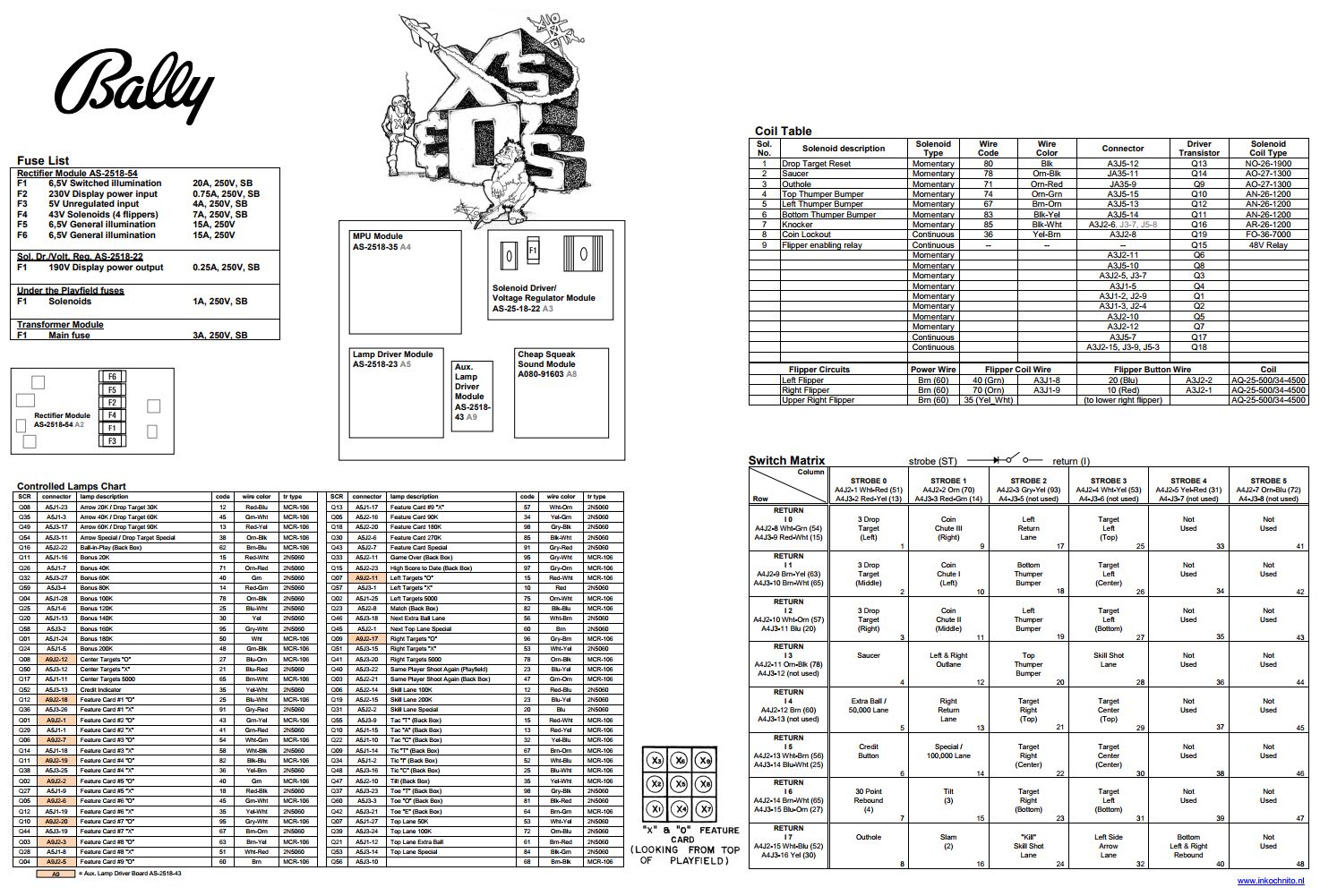

Bally X's & O's pinball machine backbox technical information matrix chart

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

  • DOC1736-TC
0.8 lb

$9.95

In Stock
