GOLD BALL (Bally) Backbox tech chart

#DOC1266-TC

Bally GOLD BALL pinball machine backbox technical information matrix chart

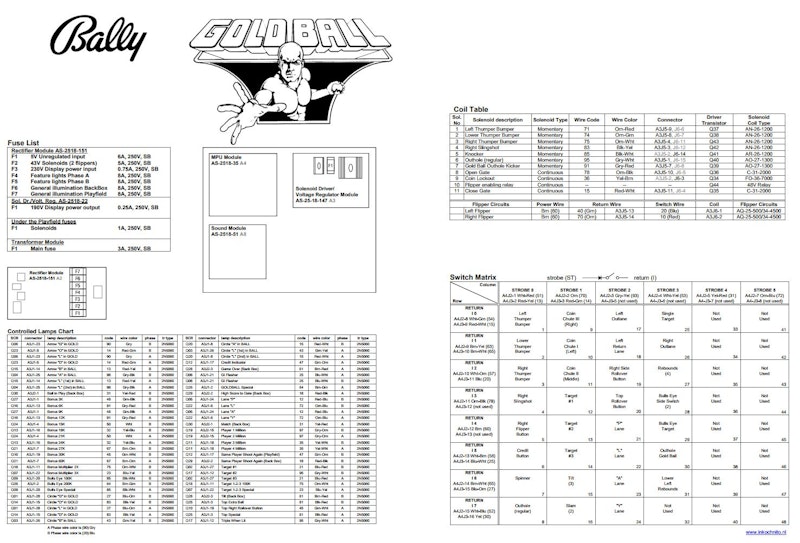

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

2 oz

$9.95

In Stock
