ESCAPE FROM LOST WORLD (Bally) Backbox Tech Chart
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

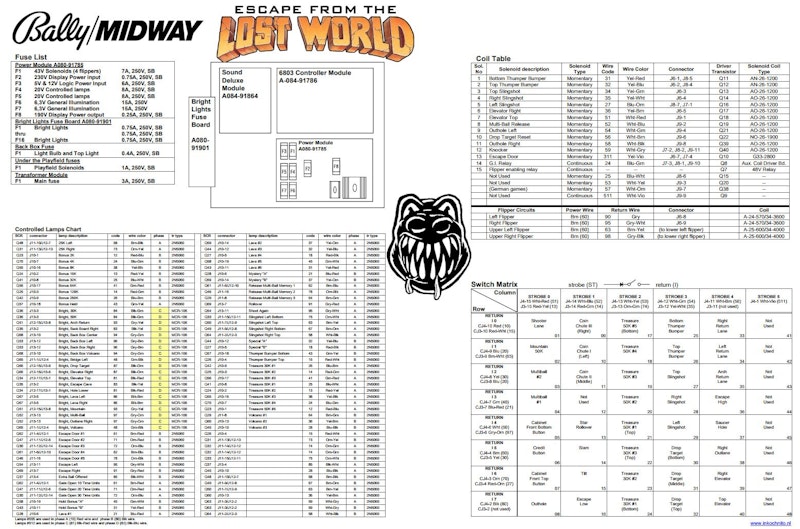

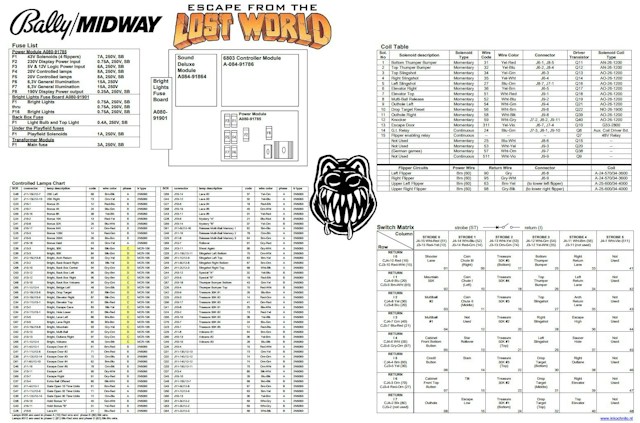

Bally/Midway ESCAPE FROM THE LOST WORLD pinball machine backbox technical information matrix chart. 11 x 17 inch peel & stick vinyl.
Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.
Reference:
DOC1203-TC
Select manufacturer to view game compatibility
ESCAPE FROM LOST WORLD (Bally) Flyer
38 piece white rubber ring kit for Bally ESCAPE FROM THE LOST WORLD pinball machine includes...

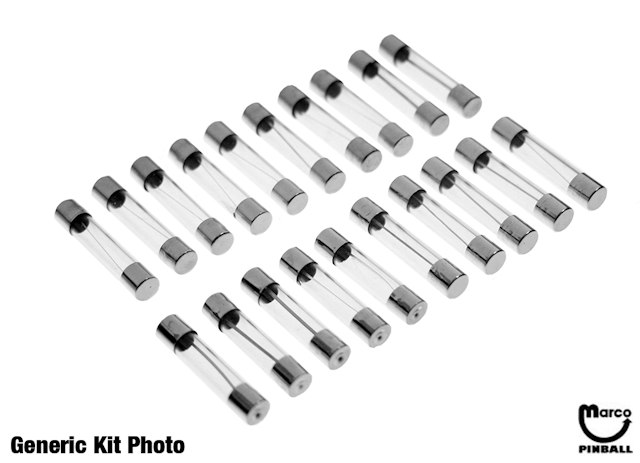

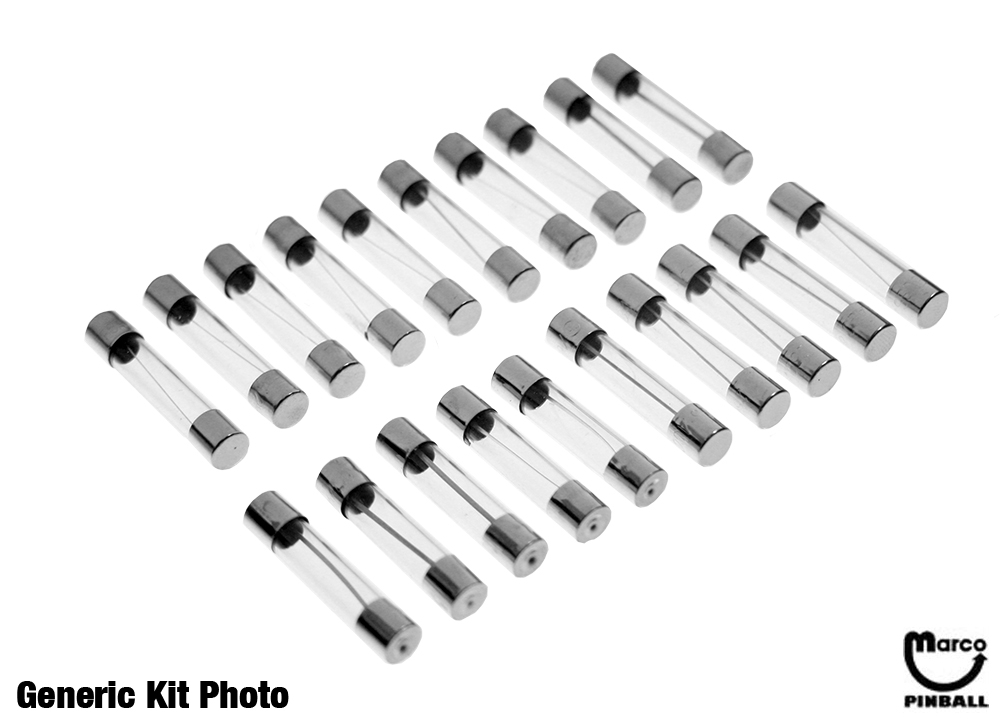

Assortment of 7 different value fuses customized for Bally ESCAPE FROM THE...

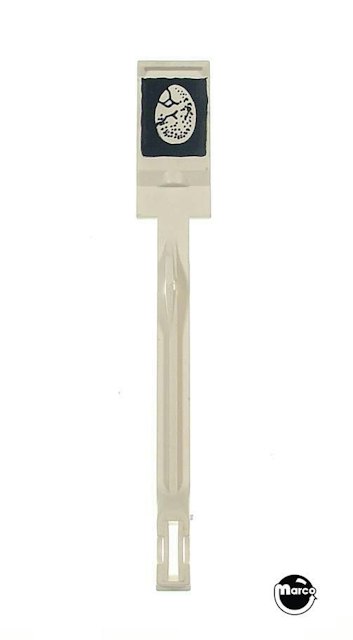

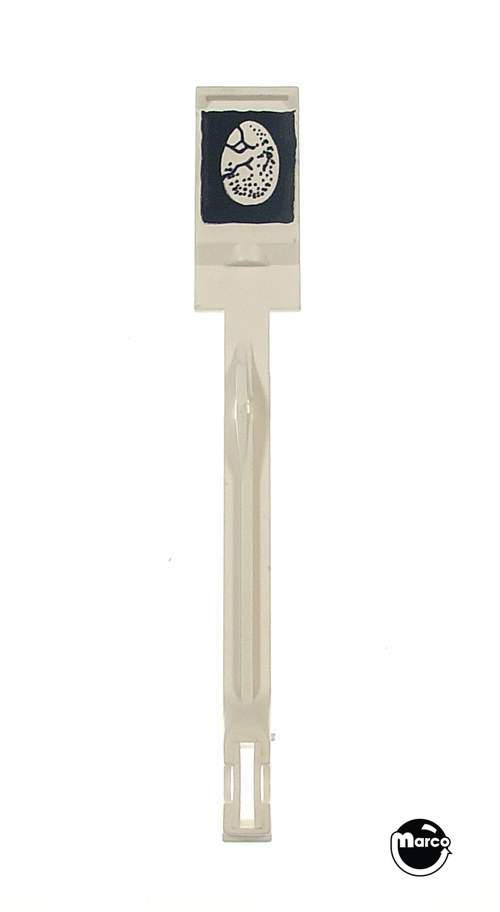

Bally ESCAPE FROM THE LOST WORLD pinball machine drop target with egg imprint.

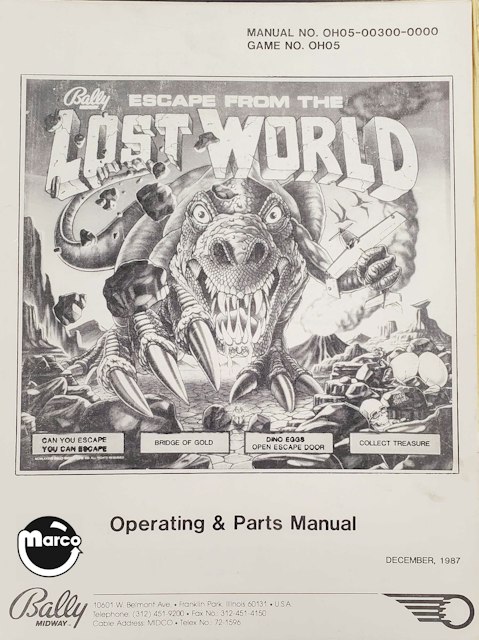

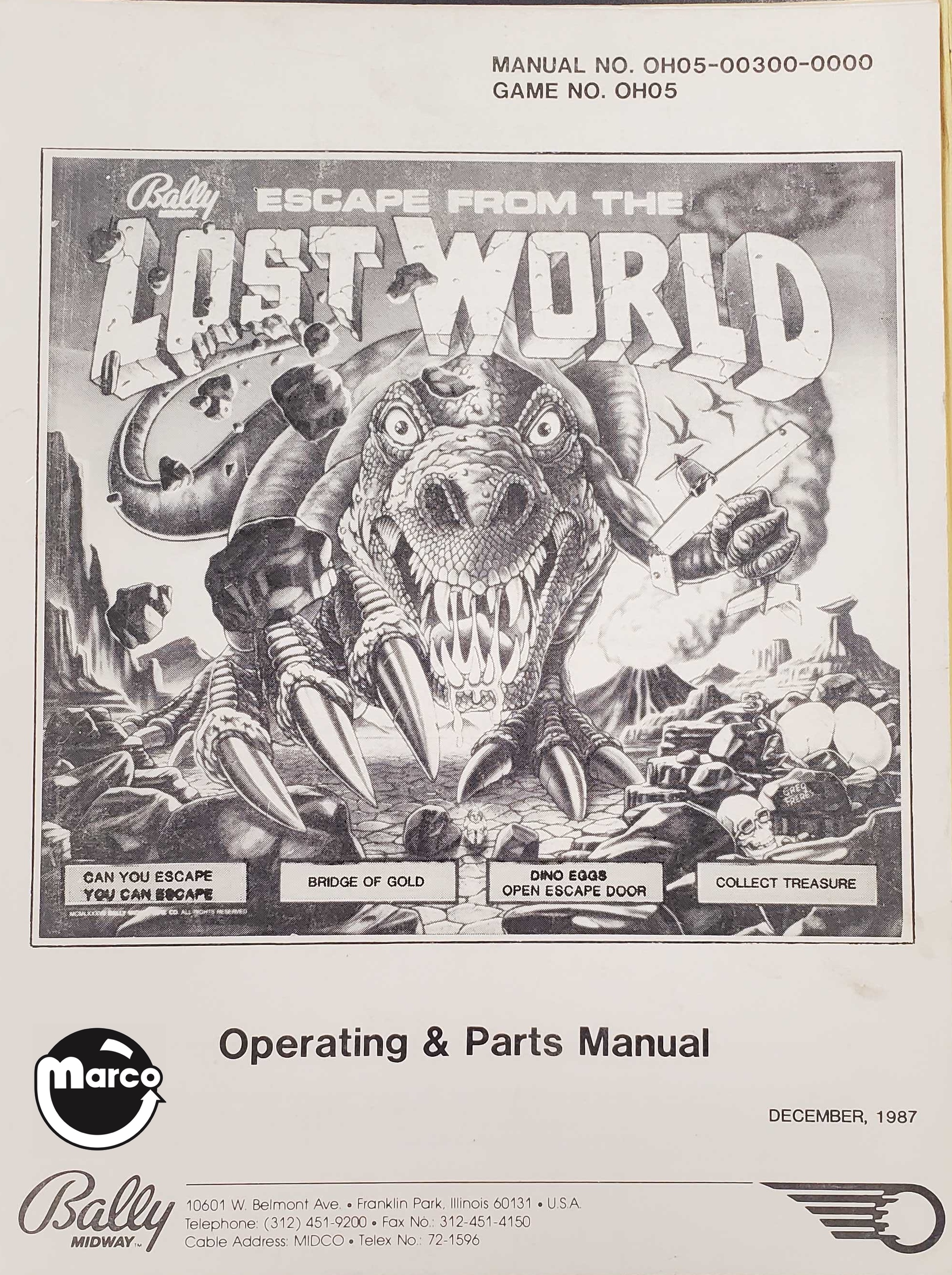

Manual and schematic diagrams for 1988 Bally ESCAPE FROM THE LOST WORLD pi...

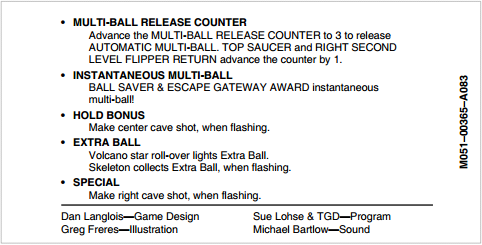

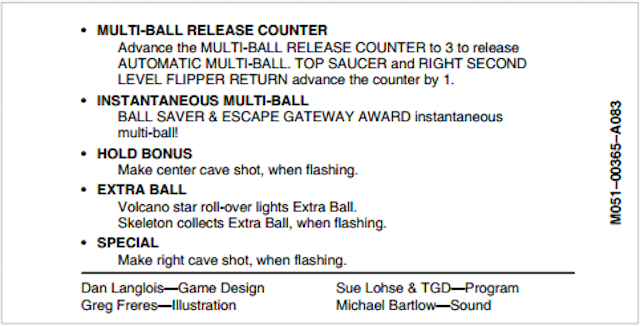

ESCAPE FROM LOST WORLD (Bally) Score Cards

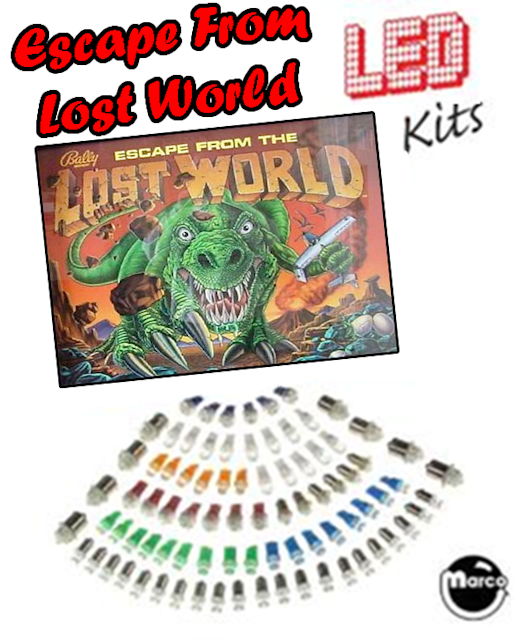

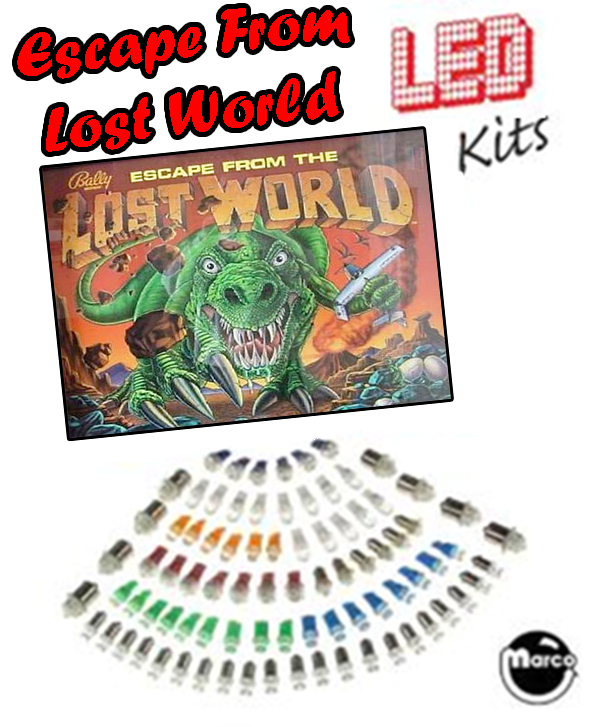

ESCAPE FROM LOST WORLD (Bally) LED kit
