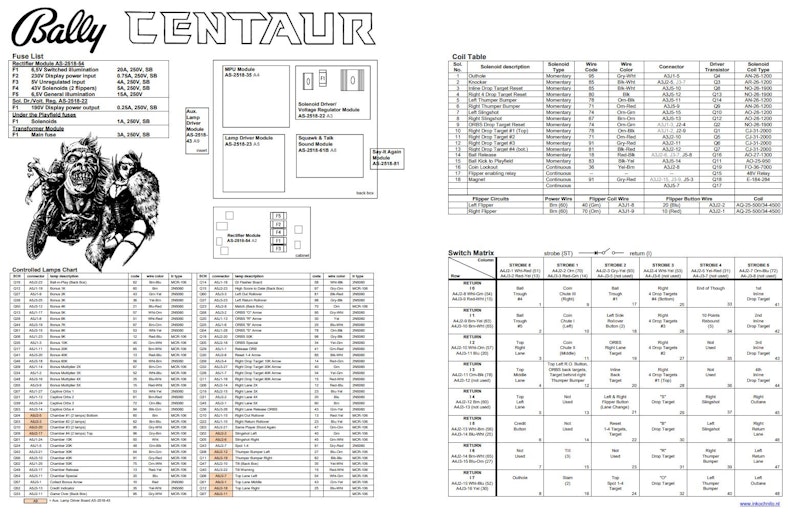

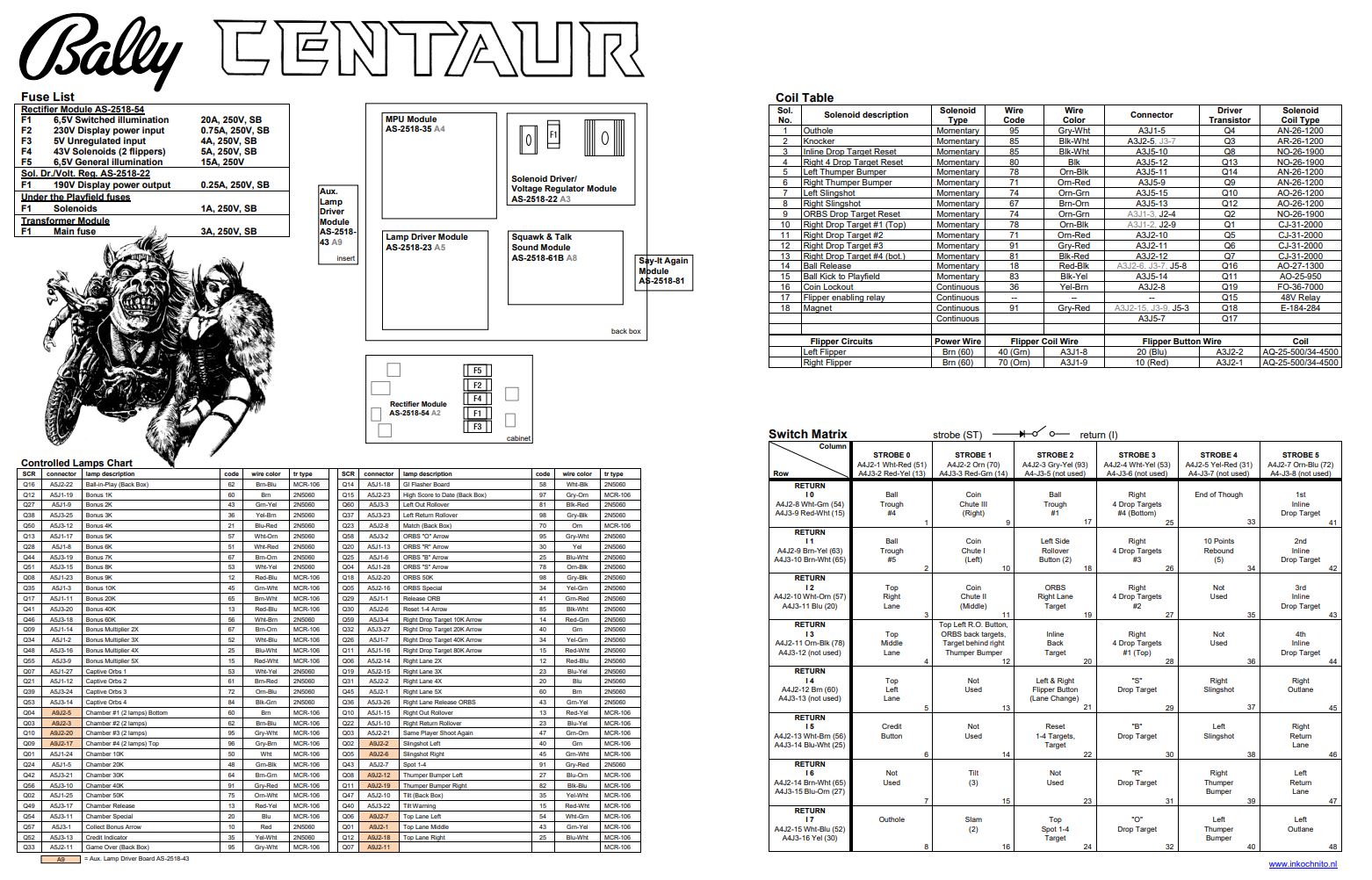

CENTAUR (Bally) Backbox tech chart

#DOC1118-TC

Bally CENTAUR pinball machine backbox technical information matrix chart.

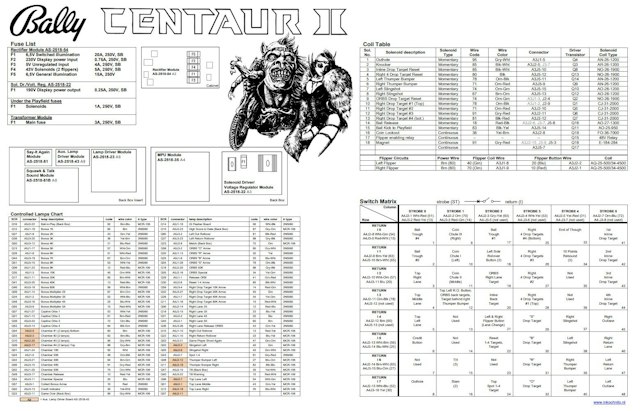

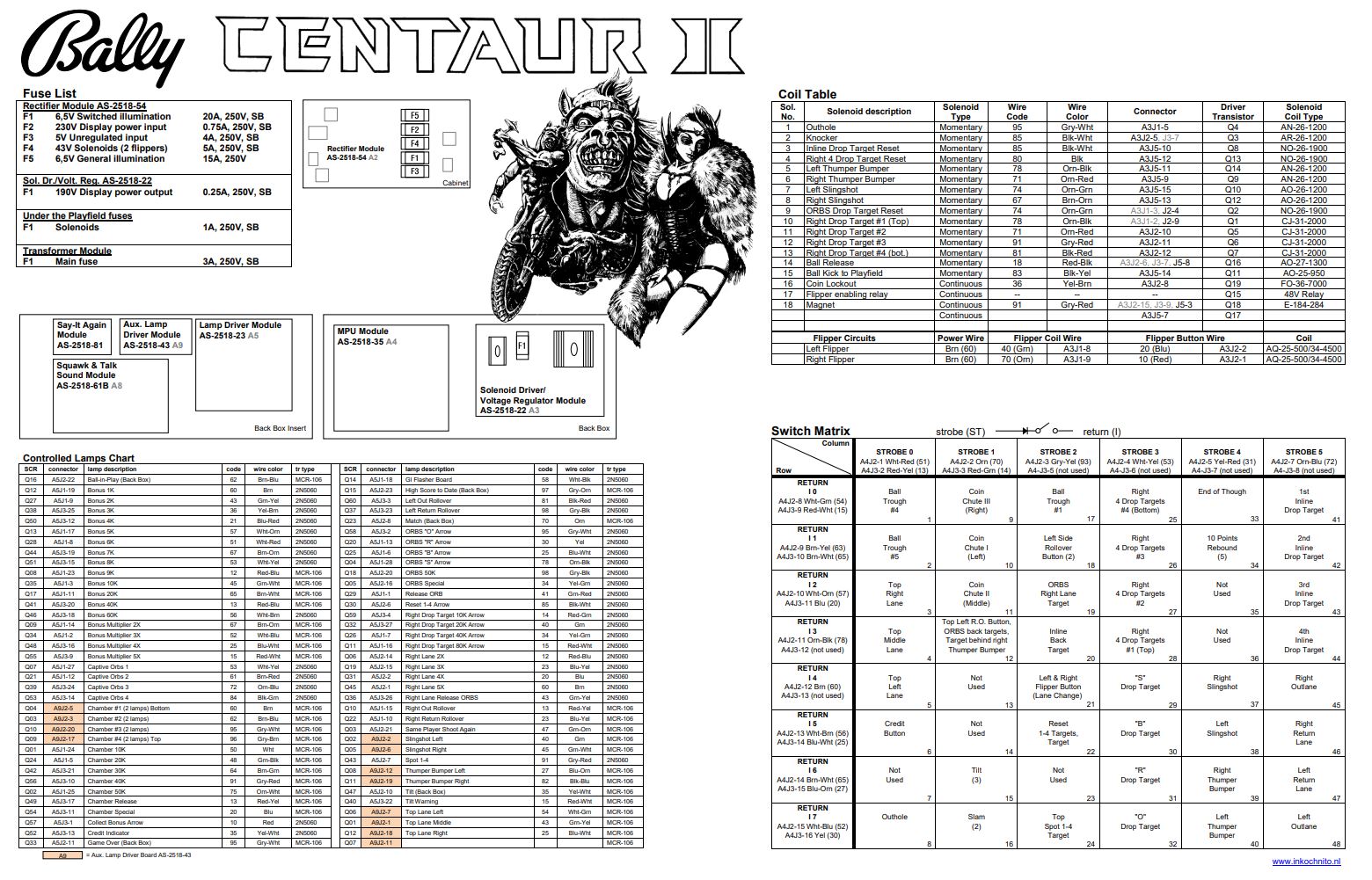

For CENTAUR II use DOC1120-TC.

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

  • DOC1118 Manual & schematic

0.8 lb

$9.99

In Stock
