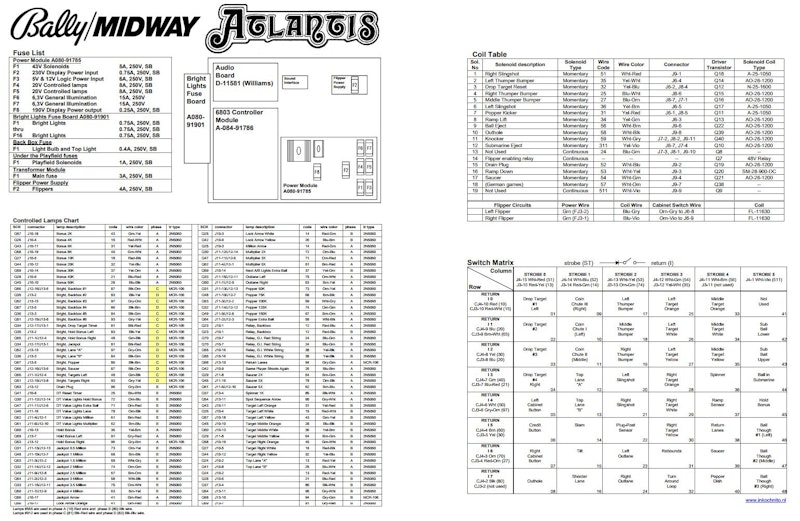

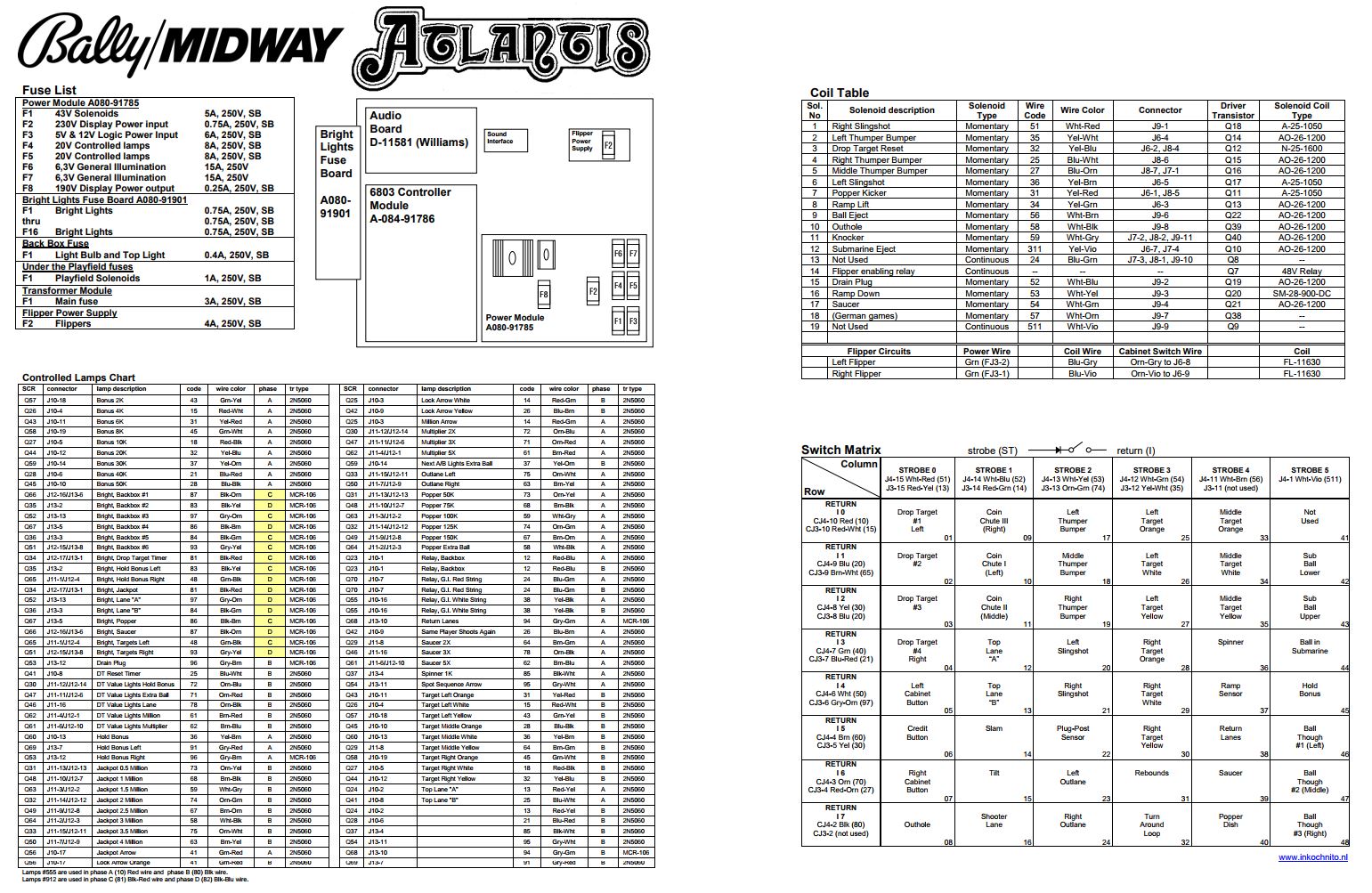

ATLANTIS (Bally) Backbox tech chart
#DOC1033-TC
Bally/Midway ATLANTIS pinball machine backbox technical information matrix chart
Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.
11 x 17 inch peel & stick vinyl
Reference:
- 0C70-00300-0000
0.5 lb
