WHIRLWIND (Williams) Wheels drive assembly
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

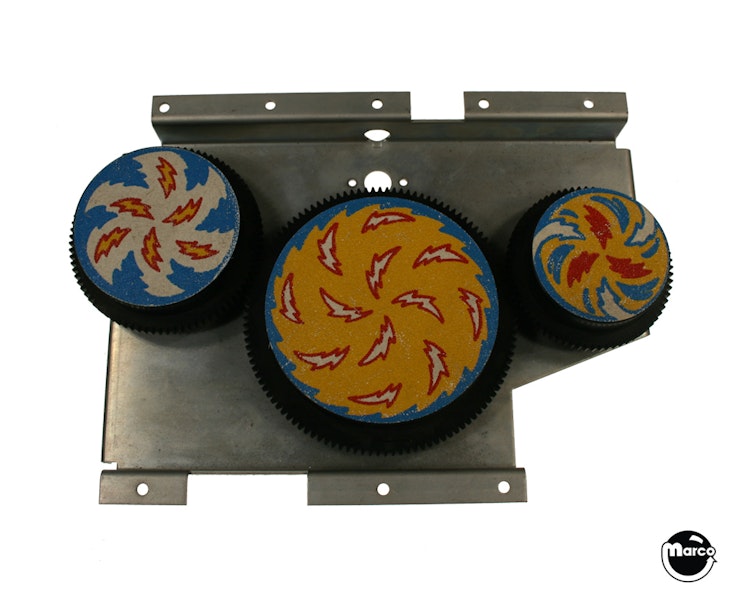

Williams WHIRLWIND pinball machine playfield spinning disc wheels drive assembly.
Ships un-assembled
Reference:
D-13199 wheels drive assembly
01-9406 mounting bracket
03-8346 gear 115 T
03-8345 gear 84 T
03-8344 gear 72 T
03-8343 pinion
03-4419 adjusting screw (3)
02-4418 shaft
03-8347 gland (3)
20-9610 flange bearing (6)
31-1536-574-3 decal small
31-1536-574-2 decal medium
31-1536-574-1 decal large
14-7955 motor
4008-01041-10 machine screw (3)
4008-01017-08 machine screw (3)
4108-01004-06 sheet metal screw (9)
20-9639 metric screw (2)
set screw 6-32 x 1/4 inch (2)
16-8587-1000 adjustment label
Select manufacturer to view game compatibility
WHIRLWIND (Williams) Spinner assembly bracket
Shaft 1/4 x 2-1/2 inches
Adjusting screw Bally
Pinion gear
WHIRLWIND (Williams) Spinner wheel small
WHIRLWIND (Williams) Spinner wheel medium
WHIRLWIND (Williams) Spinner wheel large
Flange - plastic
Locking nut - plastic
Bally/Williams motor used in Williams WHIRLWIND Disc Motor Bally DR DUDE
Flange bearing
Machine Screw M3 x .5 x 6mm lg p-ph
This is the 3 piece self-adhesive decal set for the Williams WHIRLWIND pla...
Set screw 6-32 x 1/4 inch sh-cp
Machine screw 8-32 thread x 1/2" long phillips round head with sems extern...
Machine screw 8-32 thread x 5/8" long phillips flat head.
Washer .187 x .437 x .053 inch #8 SAE
Locking nut - plastic
