Capacitor kit video Wells Gardner K4600
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Electrolytic capacitor rebuild kit for the Wells Gardner K4600 19 inch CRT video monitor.
25 piece capacitor set includes capacitors for the following circuit board locations and their values:
Location | Capacitor

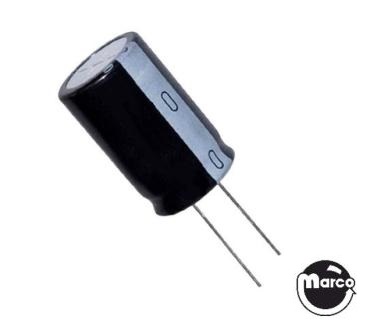

c201 IF = 1000uf 16vc203 IF not found on all interface boards = 470uf 16vc306 X/Y = 2.2uf 50vc310 X/Y = 22uf 25vc311 X/Y = 1000uf 35vc313 X/Y = 47uf 50vc315 X/Y = 10uf 50vc356 X/Y = 4.7uf 25vc359 X/Y = 4.7uf 160vc362 X/Y = 10uf 50vc501 P = 10uf 160vc503 P = 22uf 25vc551 P = 220uf 25vc607 = 10uf 250vc608 = 47uf 160vc613 = 220uf 25vc614 = 33uf 25vc617 = 1uf 50vc619 = 1uf 50vc623 = 470uf 25vc624 = 100uf 25vc625 = 10uf 160vc632 = 47uf 25vc633 = 2.2uf 50v Non-Polarizedc662 = 1000uf 50v
Radial terminal circuit board mount 1000 uf @ 35 volt capacitor.18mm dia.
Radial terminal circuit board mount 1000 uf @ 35 volt capacitor.18mm dia.
Capacitor 100uf @ 25 volts with radial leads.
Electrolytic capacitor Reference: Stern 125-5037-00
Capacitor 10 uF 160V radial XO-208
Capacitor 150 uf @ 10 volts with axial leads.
Capacitor 10 uf @ 250 volts measures 7/8" tall x 3/8" diameter and has rad...
7/16" x 3/16" diameter 1 uf 50 volt radial lead capacitor.
Capacitor 470 uf @ 25 volts measures 5/8 tall x 3/8inch diameter XO-220
Capacitor 10 uf @ 50 volts with radial leads.
Capacitor 2.2 uF 50v radial non-polarized

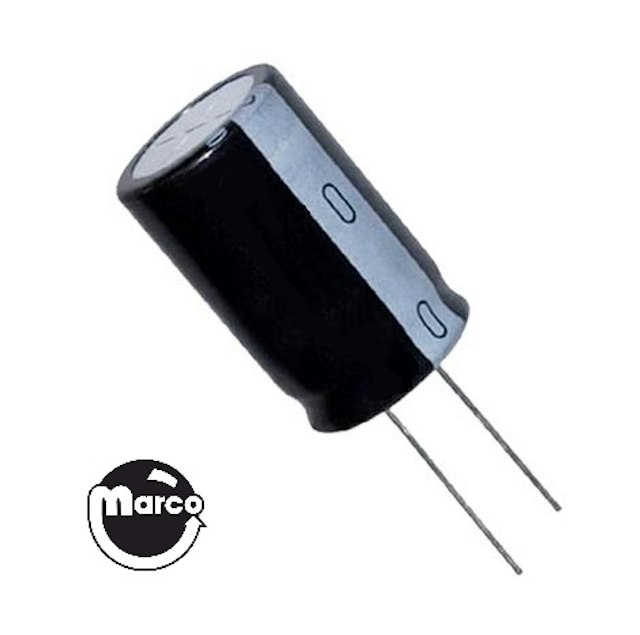

Capacitor 220 uF 25v radial

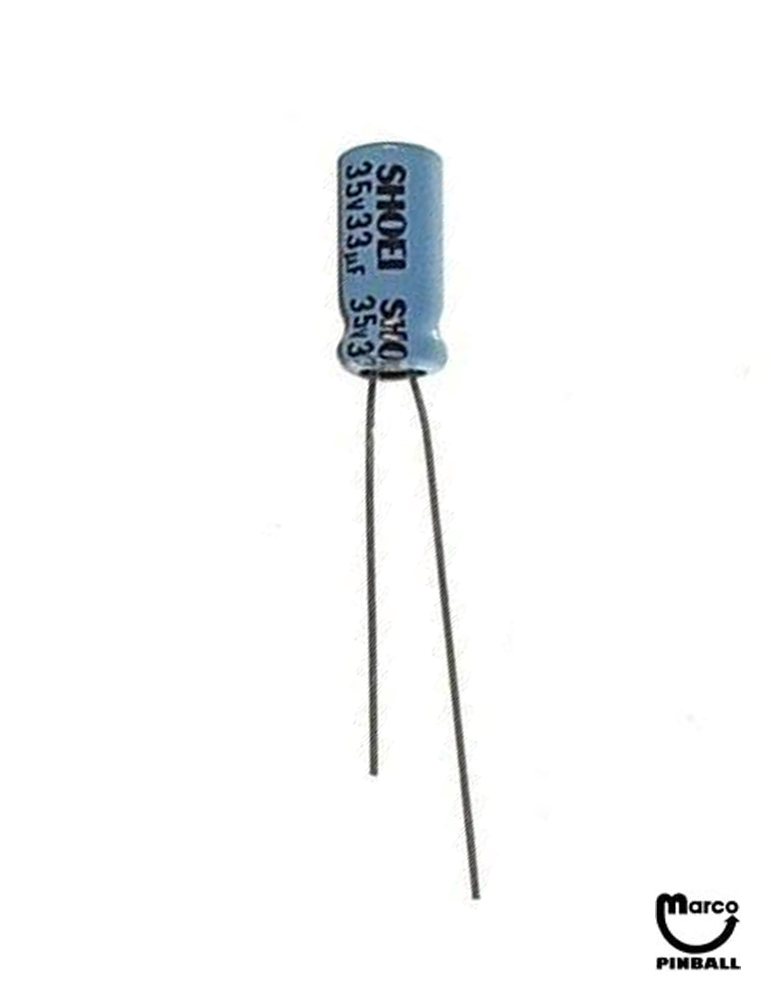

Capacitor 33 uF 35v radial
Capacitor 2.2 uF 50v radial
5/16 tall x 3/16 inch diameter 22 uf @ 25 volts radial lead capacitor.
Capacitor 4.7 uF 160v radial
Capacitor 4.7 uF 25v radial
Capacitor 47 uF 160v radial
Capacitor, 47uf 25 volt radial leads. XO-219
Capacitor 47 uF 50v radial XO-210

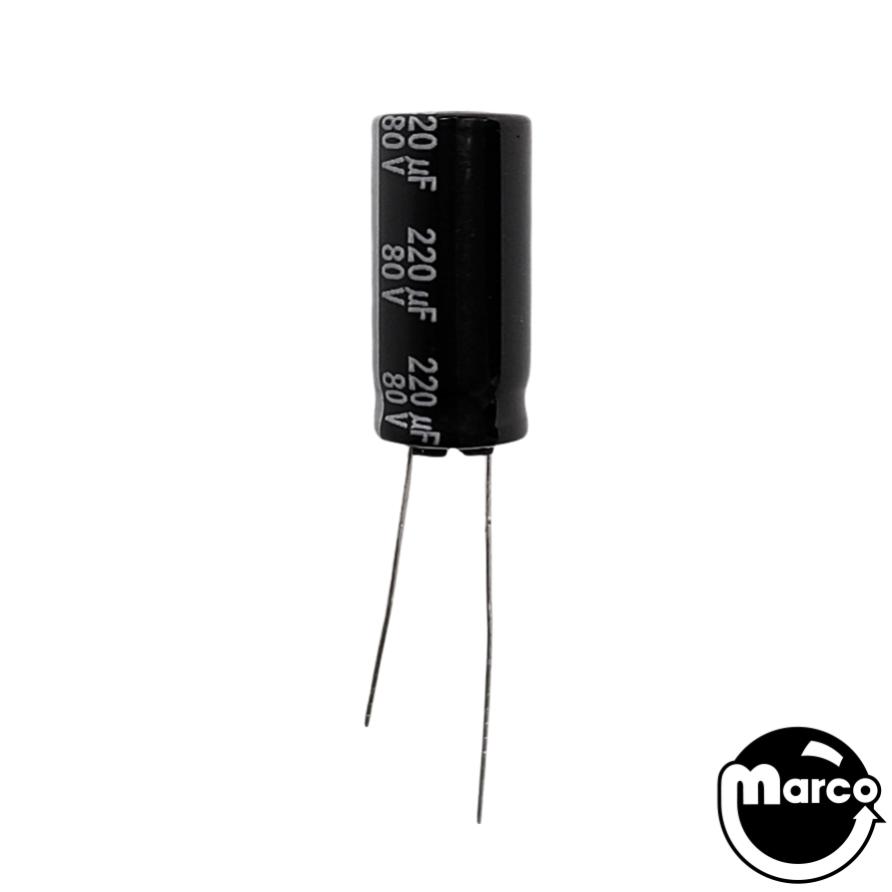

Capacitor 220 uF 80v radial
