Capacitor kit - Electrohome G07-CBO
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Electrolytic capacitor rebuild kit for the Electrohome G07-CBO model 19 inch CRT video monitor.
19 piece capacitor set includes capacitors for the following circuit board locations and their values:
Location | Capacitor
c107 (on neck board) = 10uf 250vc301 = 3.3uf 50v Non-Polarizedc302 = 220uf 16v *(Caution-circuit board mark error)c403 = 220uf 16vc407 = 4.7uf 63vc408 = 4.7uf 50vc411 = 100uf 160vc412 = 3.3uf 200vc504 = 1uf 50vc506 = 33uf 16vc511 = 47uf 160vc517 = 47uf 16vc518 = 220uf 16vc520 = 3.3uf 50v Non-Polarizedc521 = 2200uf 25vc523 = 1uf 160vc701 = 100uf 16vc904 = 600uf 200v FilterCapc905 = 10uf 250v
Installation Note:
The polarity of C302 is marked incorrectly on the bottom of the chassis.
100 uf @ 160 volt radial lead electrolytic capacitor
Capacitor 3.3 uF 200v radial
Capacitor 3.3 uF 50 v radial non-polarized
Capacitor 4.7 uF 160v radial
Capacitor 3.3 uF 160v radial
Capacitor 47 uF 160v radial
Capacitor 470 uF 50v radial
Capacitor 470 uf @ 25 volts measures 5/8 tall x 3/8inch diameter XO-220
Capacitor 4.7 uF 63v radial
Capacitor 100uf @ 16 volts measures 1/2" tall x 1/4" diameter and has radi...
Capacitor 10 uf @ 250 volts measures 7/8" tall x 3/8" diameter and has rad...
7/16" x 3/16" diameter 1 uf 50 volt radial lead capacitor.
Capacitor 1-3/8" tall x 5/8" diameter with radial leads for circuit board

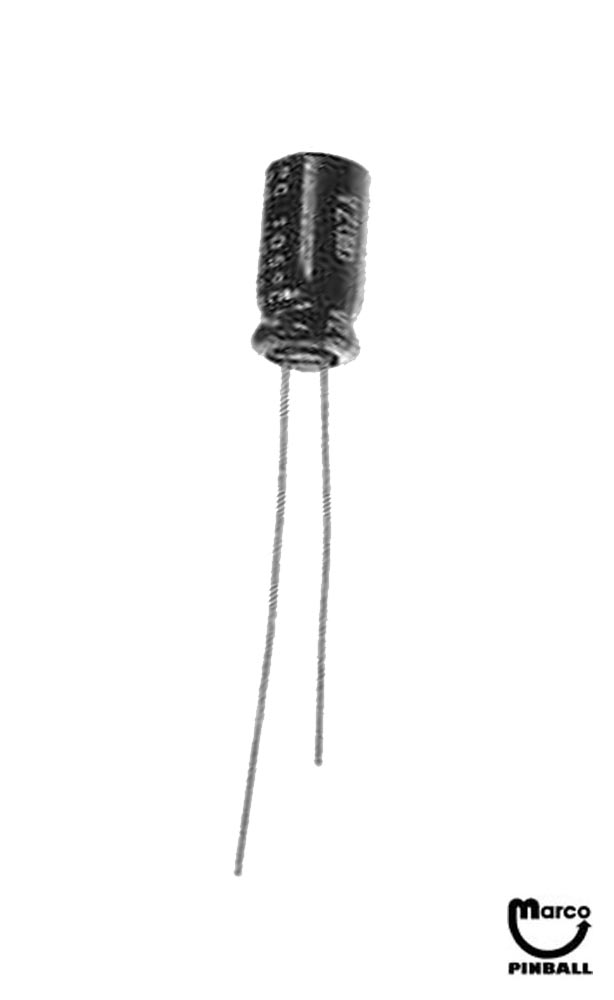

220 uf @ 16 volt capacitor has radial leads.
Capacitor 1 uF 160v radial
Capacitor 220 uF 25 v radial non-polarized
