Capacitor kit - A-One Korea AM-0629
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

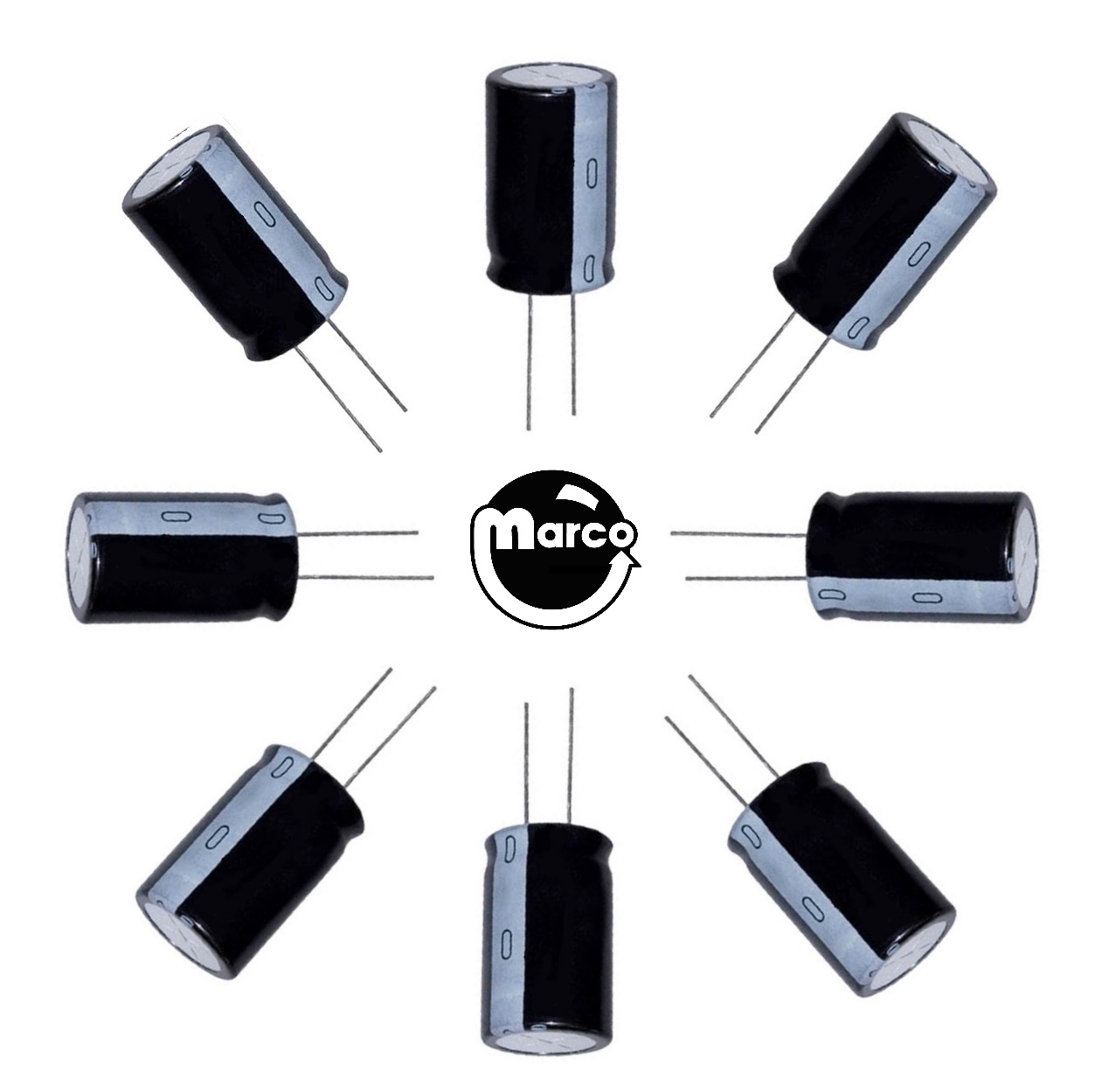

Electrolytic capacitor rebuild kit for the A-One Korea Model AM-0629 19 inch CRT video monitor.
19 piece capacitor set includes capacitors for the following circuit board locations and their values:
Location | Capacitor
c05 = 22uf 160vc07 = 47uf 160vc08 = 4.7uf 160vc11 = 10uf 250vc12 = 1000uf 25vc16 = 10uf 50vc17 = 4.7uf 63vc18 = 10uf 50vc19 = 470uf 50vc20 = 3.3uf 160vc21 = 1uf 50vc22 = 1uf 50vc29 = 100uf 50vc35 = 10uf 50v Non-Polarizedc36 = 470uf 25vc37 = 1uf 50vc40 = 100uf 16vc41 = 100uf 16vc42 = 100uf 63v
Capacitor 100uf @ 16 volts measures 1/2" tall x 1/4" diameter and has radi...
Capacitor 4.7 uF 160v radial
Capacitor 10 uf @ 250 volts measures 7/8" tall x 3/8" diameter and has rad...
Capacitor 100 uf 50v radial

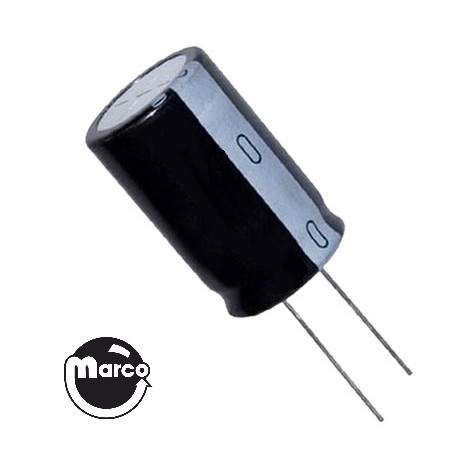

Capacitor 10 uF 50 v radial non-polarized
7/16" x 3/16" diameter 1 uf 50 volt radial lead capacitor.
Capacitor 22 uF 160v radial
Capacitor 3.3 uF 160v radial
Capacitor 47 uF 160v radial

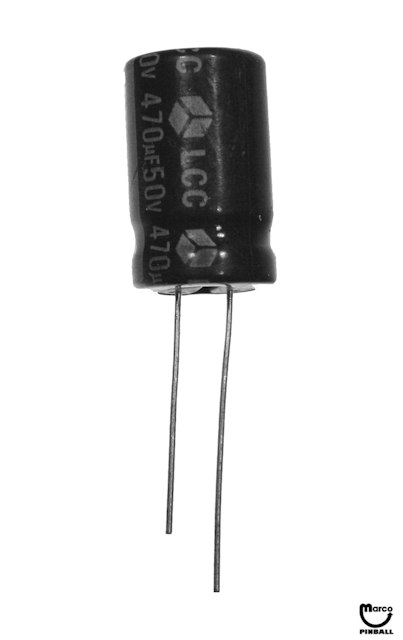

Capacitor 470 uF 50v radial
Capacitor 470 uf @ 25 volts measures 5/8 tall x 3/8inch diameter XO-220
Capacitor 100uf @ 25 volts with radial leads.
Capacitor 10 uf @ 50 volts with radial leads.

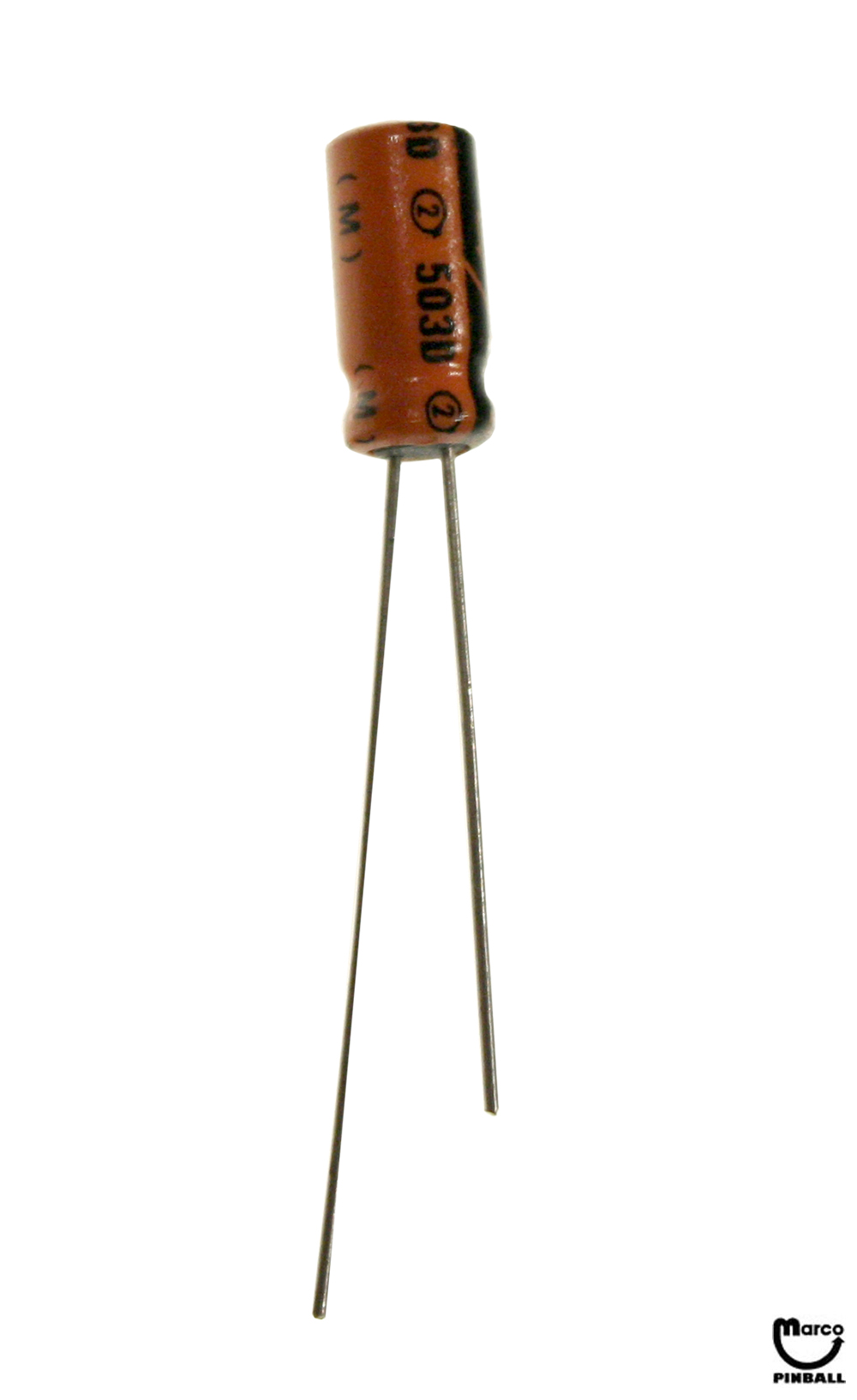

Capacitor 100 uF 63v radial
Capacitor 4.7 uF 63v radial
