Shuffle pin panel motor assembly Williams
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Pin panel motor assembly with 48 volt, dual armature motor used on Williams shuffle alleys.
Reference:

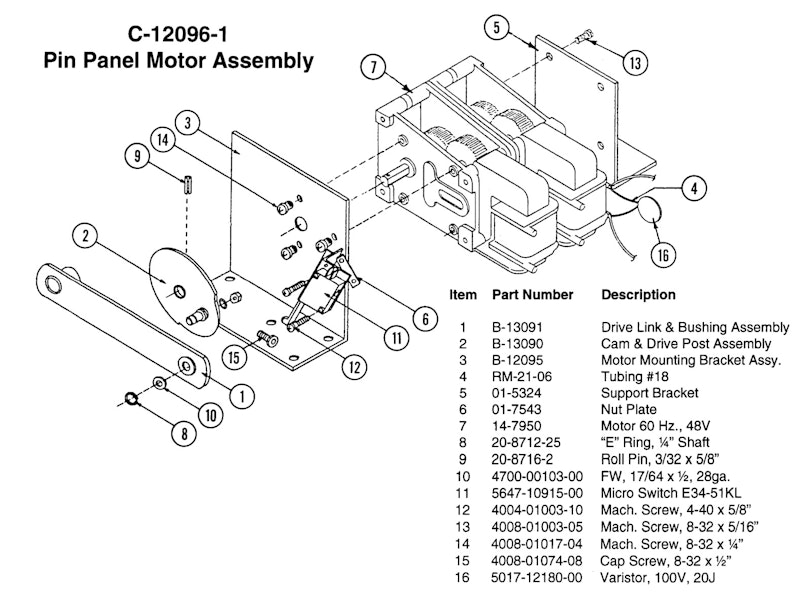

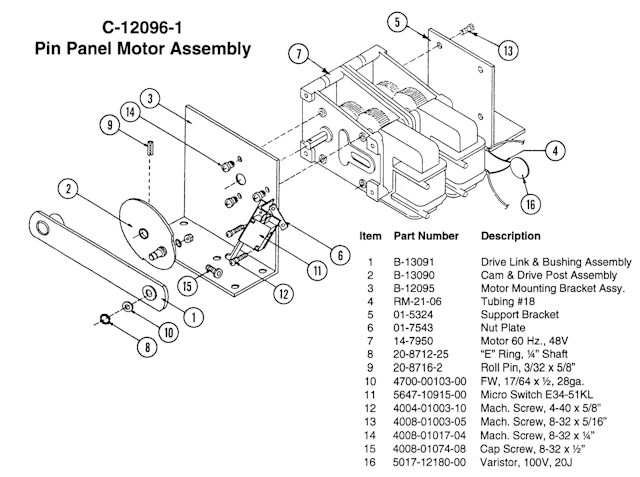

C-12096-1 pin panel motor assembly
14-7950 motor and gearbox
C-12096-1 Pin Panel Motor assembly
B-13091 Drive link & bushing
B-13090 Cam and drive post
5017-12180-00
Select manufacturer to view game compatibility
Cam assembly. Reference: B-13090
Cam & drive post assembly
Nut plate bracket. 1 3/8" long and 1/4" wide Reference:...
PVC tubing No.18
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00
Microswitch with roller actuator used on shuffle alley pin reset motor assemblies.
Varistor MOV 100V 20 joule
48 volt, dual armature motor used on Funhouse Games Inc. LEAGUE CHAMP shuffle
Washer .265 x .500 x .015 inches
Bracket - shuffle motor support
3/32" diameter x 5/8" length slotted spring roll pin. Reference: 20...
Cap Screw 8-32 x 1/2 inch socket hd nylock
Manual for Funhouse LEAGUE CHAMP Shuffle Alley. Reprint. Reference:...
