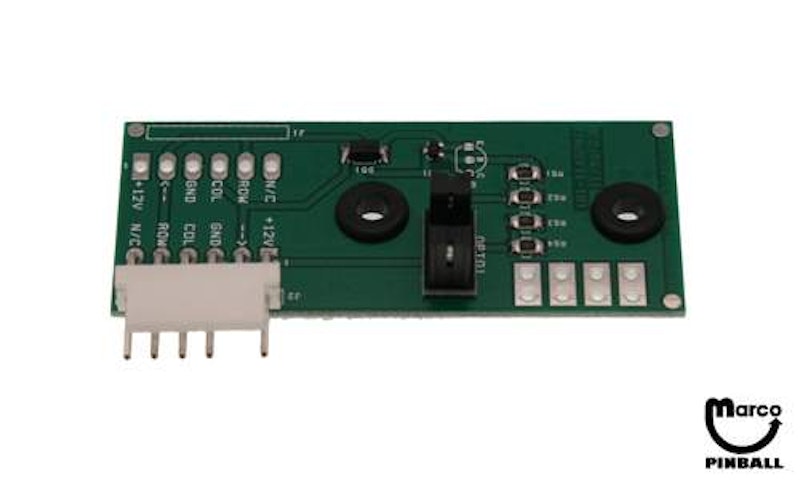

Opto board - single drop target

New design opto assembly for single drop target assembly C-11212-2.

Reference:

• C-11903
• C-11903-R
• C-11212-2 assembly
• 5768-12222-00 circuit board
• 5768-12222-00 PC Board
• 5490-10159-00 Opto Interruptor, Mdl, SIG
• 5070-08919-00 Diode, lN4148,150 mA (Dl)
• 5010-09162-00 Resistor, 100K, 5%, 114w (R4)
• 5010-09536-00 Resistor, 820R, 5%, 114w (R3)
• 5010-09324-00 Resistor, 27K, 5%, 114w (Rl)
• 5010-08930-00 Resistor, 470R, 5%, 112w (R2)
• 5190-10270-00 Transistor, 2N3906, PNP, TO92
• 16-8850-190 Label, PC Identification
• El-1 24 Cement, RTV Silicone
• 5791-10869-06 Header, 6-pin WA sq pin (J2)
