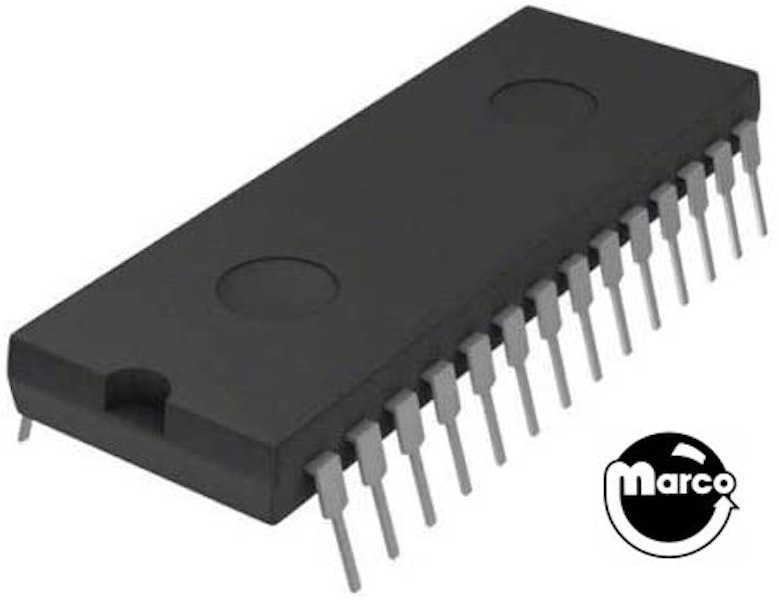

Programmable Sound Generator, 28 pin DIP made by General Instrument and MicroChip. Used in several 1980's vintage machines.
The AY-3-8912 is a LSI circuit that produces a wide variety of sounds under software control. Requirements to operate this programmable sound generator include, a single 5.0V power supply, A TTL compatible clock , and microprocessor controller.
DC CHARACTERISTICS:
Input Voltage Levels- Low Level: 0.7V max.- High level: 2.2V min.Output Voltage Levels (except Analog Channel Outputs)- Low Level: 0.4V max.- High Level: 2.4V min.Analog Channel Outputs: 2000uA max.Power Supply Current: 85mA max.
AC CHARACTERISTICS:
Clock Input- Frequency: 2.5MHz max.- Rise Time: 50ns max.- Fall Time: 50ns max.- Duty Cycle: 40% min.Reset- Pulse Width: 5us min.- Bus Control Delay Time: 100ns min.
Reference:
AY-3-8912
AY-3-8912A
AY38912
0066-289BX-XXSX
