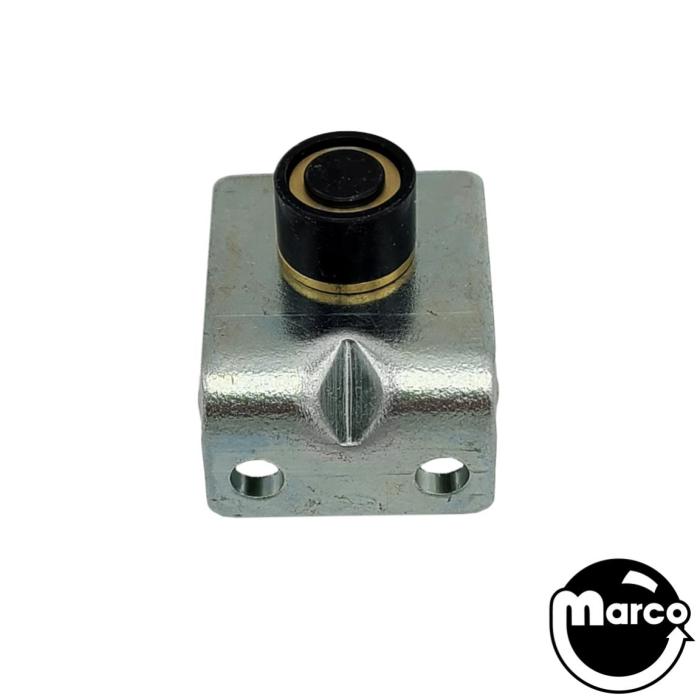

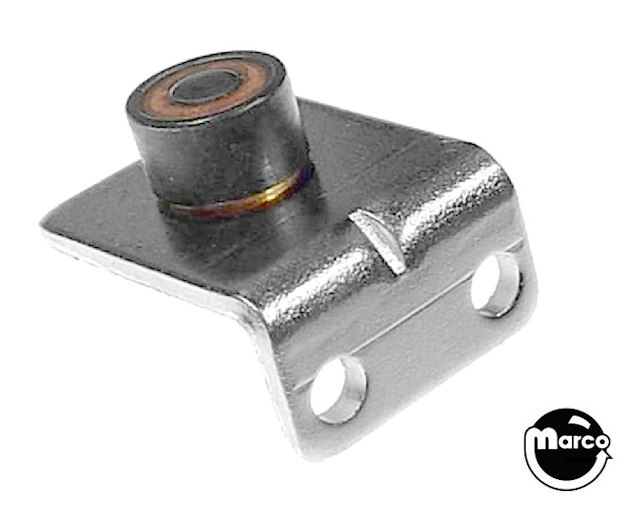

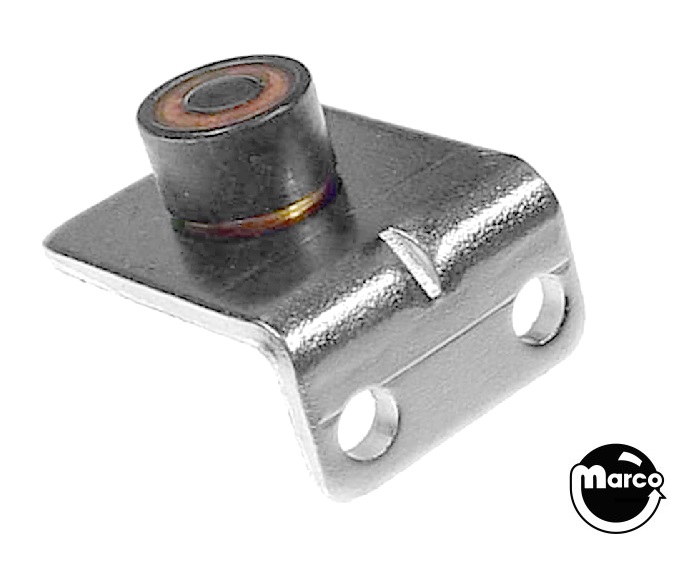

Coil stop for electromechanical stepping units has 9/16 inch on center mounting holes. Plate thickness is 1/16 inch
Overall length of bracket is 7/8in, overall width of bracket is 1in, overall depth of bracket is 13/16in, distance from screw hole to hole measures 9/16in, and core length is 5/16in.
Reference:
- A-613-67
- A-613-89
- A-613-133
0.7
oz
