Eject Assembly for Williams MONSTER BASH
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

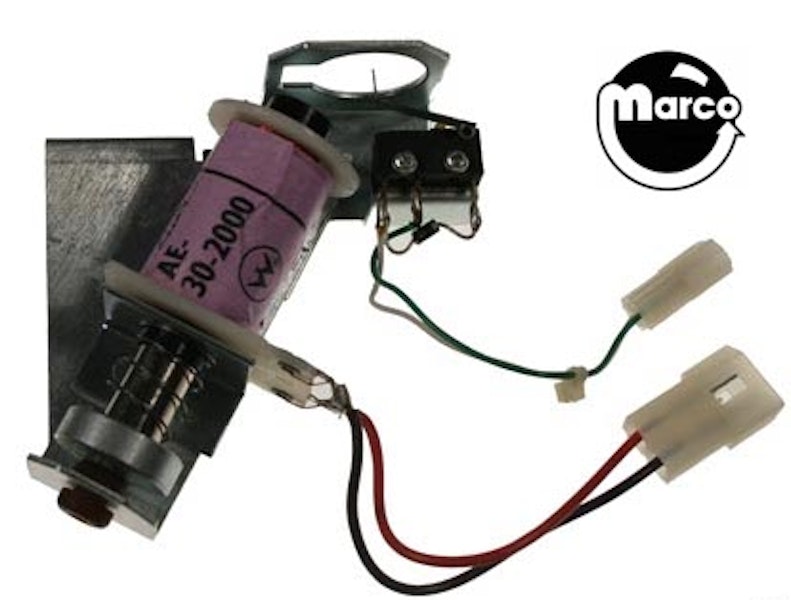

Eject assembly for Williams MONSTER BASH pinball machine.
Includes bracket, coil, plunger, switch. Wire harness not included.
Ships un-assembled.
Reference:
A-22449 eject assembly
03-7067-5 (1) tubing-coil
03-7520-2 (1) tie wrap-nylon 3 7/8
04-10322-2 (1) bracket-coil
04-10702.2-1 (1) bracket-eject
10-135 (1) spring-plunger
23-6420 (1) grommet
4002-01105-06 (2) ms 2-56x3/8 p-ph-s
4408-01119-00 (2) nut 8-32 esn
5070-09054-00 (1) diode-1N4004 1.0a
5647-12693-66 (1) switch-sub mini micro
5791-10772-00 (1) 2P11625 03-06-2023
5820-09078-00 (2) pm1560 02-06-2101
A-15371 (1) plunger
AE-30-2000 (1) coil
CW-30022-5 (3) wire 22awg green
CW-30022-9 (3) wire 22awg white
H-16437 (1) mini switch cable
Select manufacturer to view game compatibility
Used in A-22302 Mummy Assembly.
For late model Bally / Williams games. Often used in Popper Assemblies.
Eject bracket Williams / Bally
face plate
This is the 163 piece LED Lamp complete conversion kit for the Williams M...

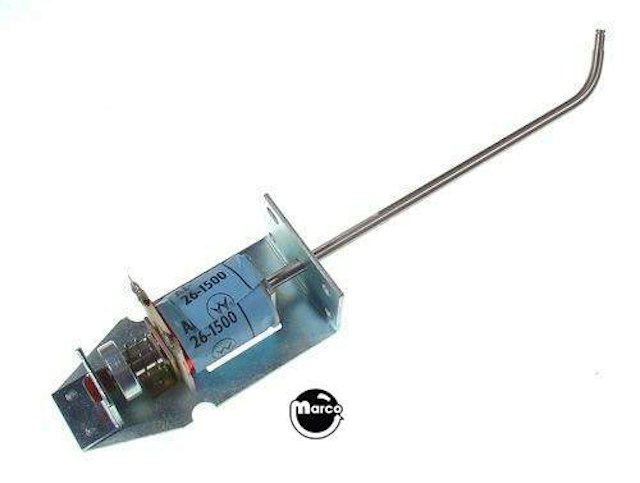

Williams MONSTER BASH bride mechanism
