SAFECRACKER (Bally) Spin disc assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

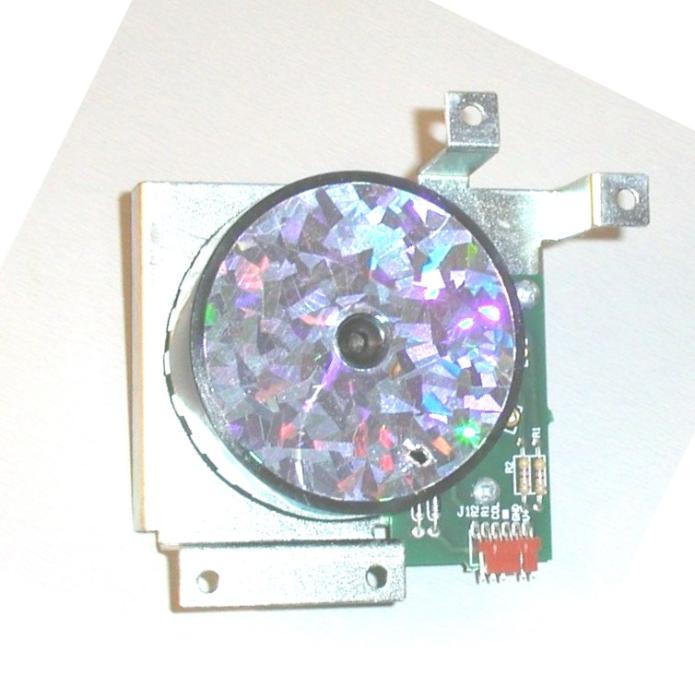

Bally SAFECRACKER Safe Dial spin target assembly
Ships unassembled.

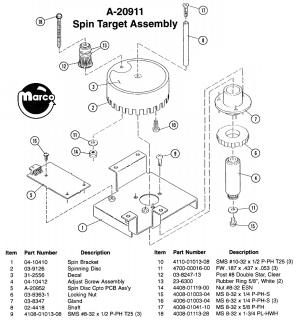

Reference:
A-20911 spin disc assembly02-4418 (1) shaft03-8247-13 (1) post No.8 double star-clear03-8347 (1) gland03-8363-1 (1) nut-locking03-9126 (1) spinning disc04-10410 (1) bracket-spin04-10412 (1) adjust screw assy23-6300 (2) white rubber ring 5/16"31-2556 (1) decal-spinning disc4006-01003-04 (3) ms 6-32X1/4 p-ph-s4008-01003-04 (1) ms 8-32x 1/4 p-ph s4008-01041-10 (1) ms 8-32X5/8 p-flh4008-01113-28 (1) ms 8-32x1-3/4 pl-hwh4108-01013-08 (3) sms No.8x1/2 p-ph type 254110-01013-08 (3) sms No.10x 1/2 p-ph t-254408-01119-00 (1) nut 8-32 esn4700-00016-00 (2) fw .187X.437X.053A-20952 (1) spin disc opto pcb assembly
Select manufacturer to view game compatibility

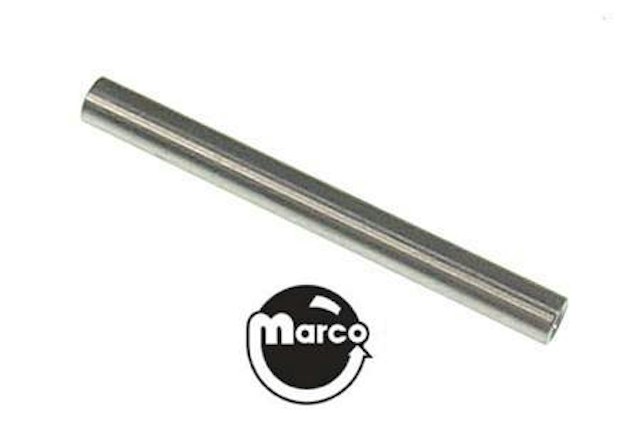

Shaft 1/4 x 2-1/2 inches

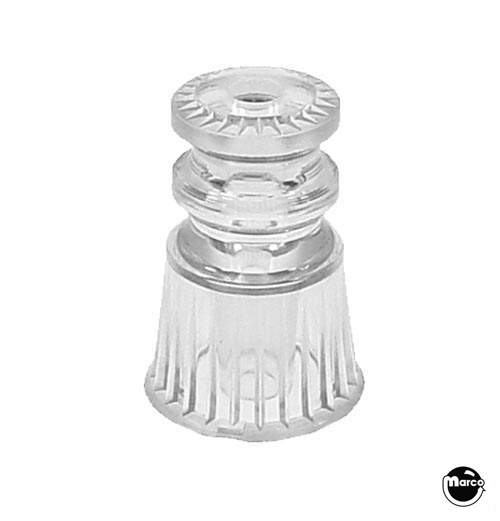

Post - star double clear 1-1/16 inch

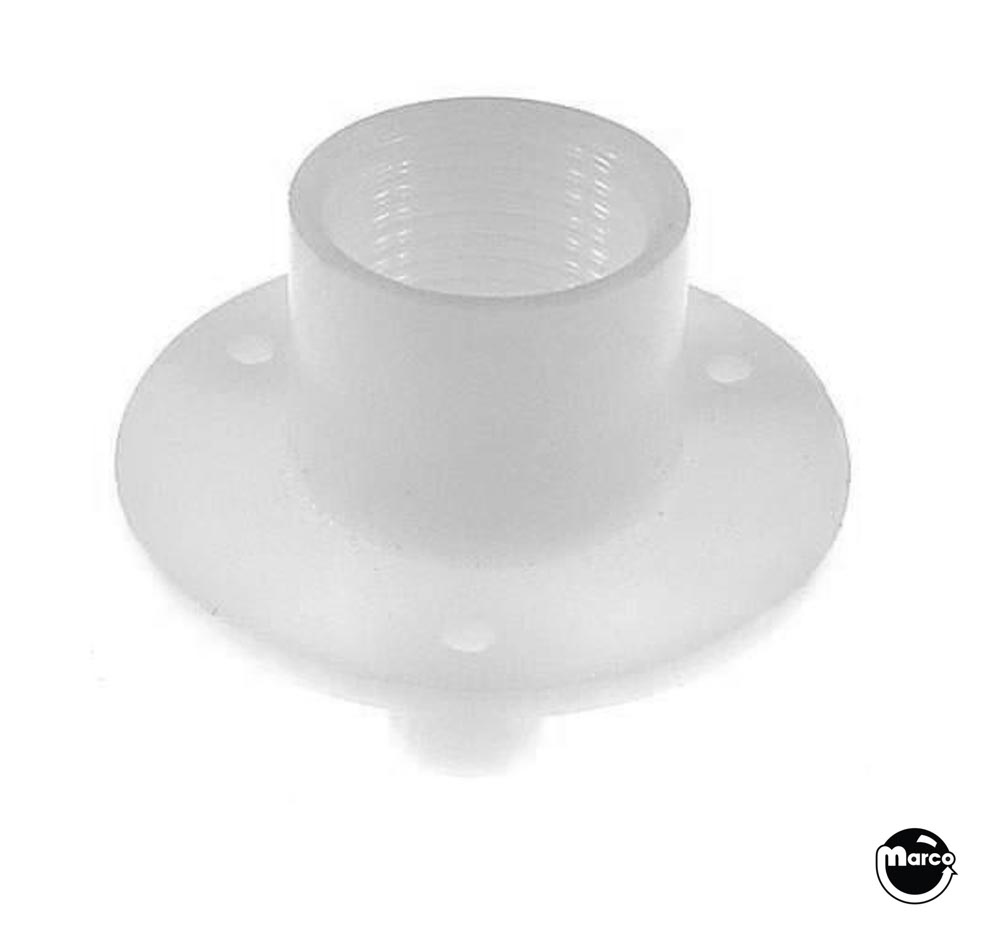

Flange - plastic
Locking nut - plastic
Bally SAFE CRACKER pinball machine plastic spinning disc opto interrupter
Bracket-spin

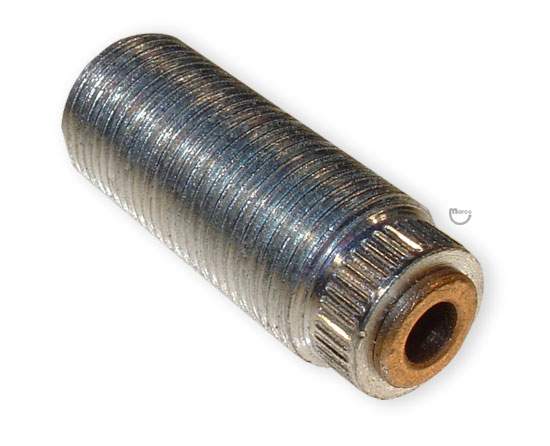

Screw adjust assy
Most common white rubber O-ring. Used on all plastic posts by all manufacturers.
SAFECRACKER (Bally) spinning disc decal
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...

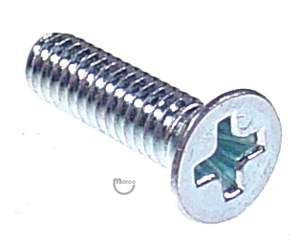

Machine screw 8-32 thread x 5/8" long phillips flat head.
Sheet metal screw No.10 x 1/2" p-ph t-25

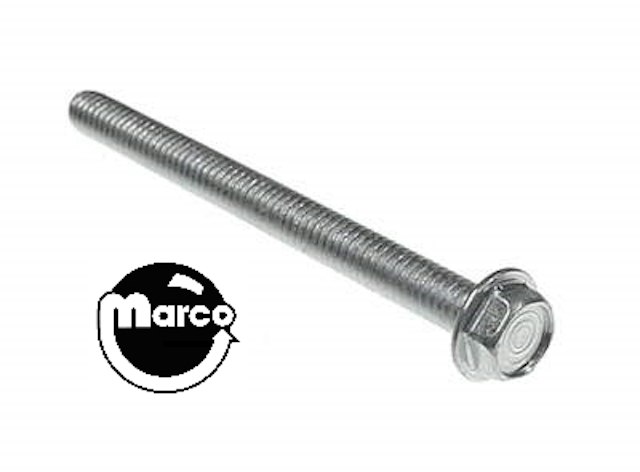

Zinc plated 8-32 x 1-3/4 inch long unslotted hex washer head machine screw.

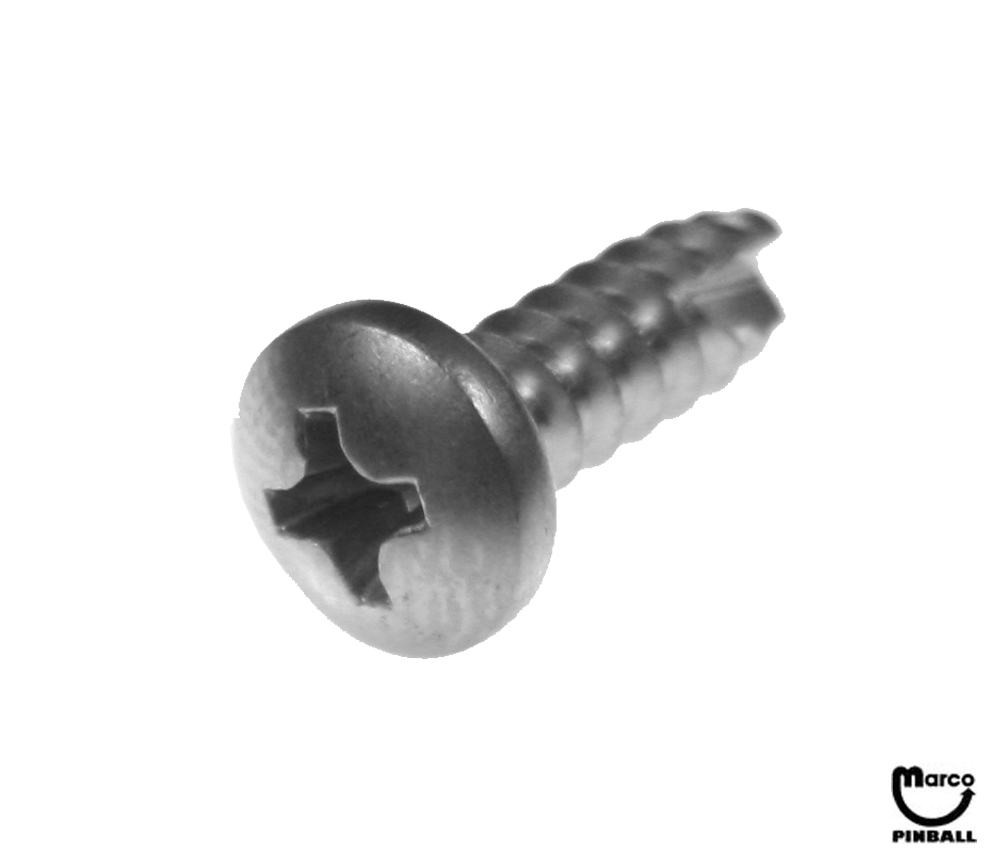

Sheet Metal Screw No.8 x 1/2" p-pn type 25
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
Washer .187 x .437 x .053 inch #8 SAE
Spinning disc opto board assembly for Bally SAFE CRACKER pinball machine
