TALES ARABIAN NIGHTS ramp guard assy

#A-20811

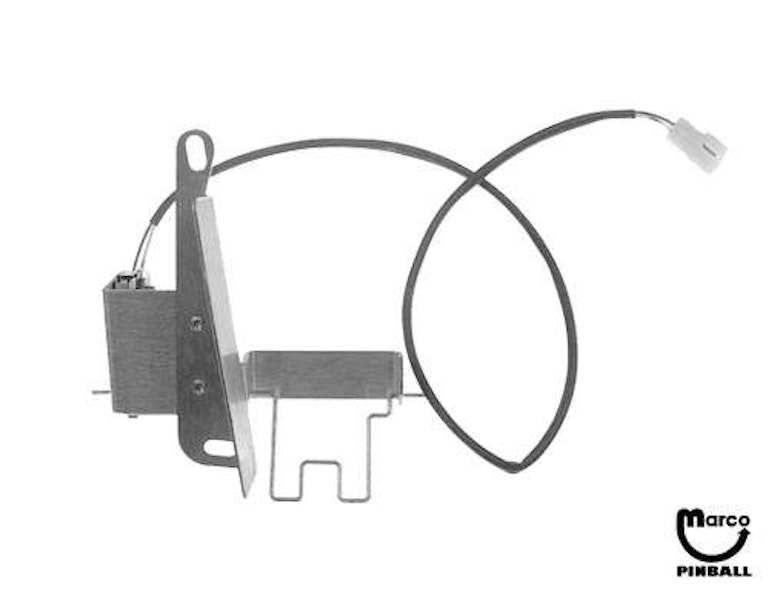

Williams TALES OF THE ARABIAN NIGHTS ramp guard ball gate with cable and switch assembly.

Ships un-assembled.

Reference:

  • A-20811
  • 01-14263.1 (1) guard-ramp
  • 01-14274 (1) bracket-gate
  • 01-8240 (1) plate-nut #2-56
  • 07-6688-17N (2) rivet 5/32X1/8 nickel

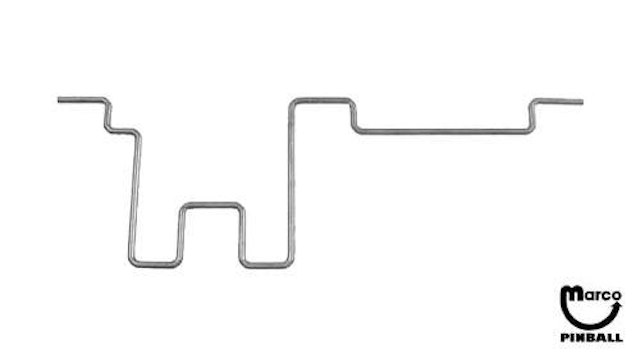

  • 12-7337 (1) gate-wireform-ramp guard
  • 4002-01105-07 (2) ms 2-56x7/16 p-ph-s
  • 4700-00003-00 (1) fw .125X.281X.032
  • 5070-09054-00 (1) diode-1N4004 1.0a
  • 5647-12693-36 (1) switch sub mini micro
  • 5791-10772-00 (1) 2P11625 03-06-2023
  • 5820-09078-00 (2) pm1560 02-06-2101
  • CW-30022-51 (19) wire 22awg grn/brn
  • CW-30022-95 (19) wire 22awg wht/grn
  • H-20861 (1) ramp enter
  • RM-23-01 (16) tubing-heat shrink-1/8 poly

3.03 oz

NOT CURRENTLY AVAILABLE. Listed for reference.
