TALES ARABIAN NIGHTS (WMS) Back panel assembly
Reference:
A-20798 back panel assembly gameNo.50047
01-12569 (2) backet-gusset back panel
03-7520-2 (10) tie wrap-nylon 3 7/8
03-7655-4 (2) clamp cable 1/4" dia
03-7655-8 (1) clamp cable 1/2" dia
03-8171-16 (1) dome-twist lock mini transparent-yellow
03-8171-26 (1) dome-twist lock mini transparent-green
03-9255-3 (4) spacer No.8 x .541
11-1315 (1) wood back panel-50047
17-1116-4 (4) jumper wire 22ga. cut 4"
24-8802 (2) bulb No.906 13V 0.69
31-2545-11 (1) plfd plastic-arab night

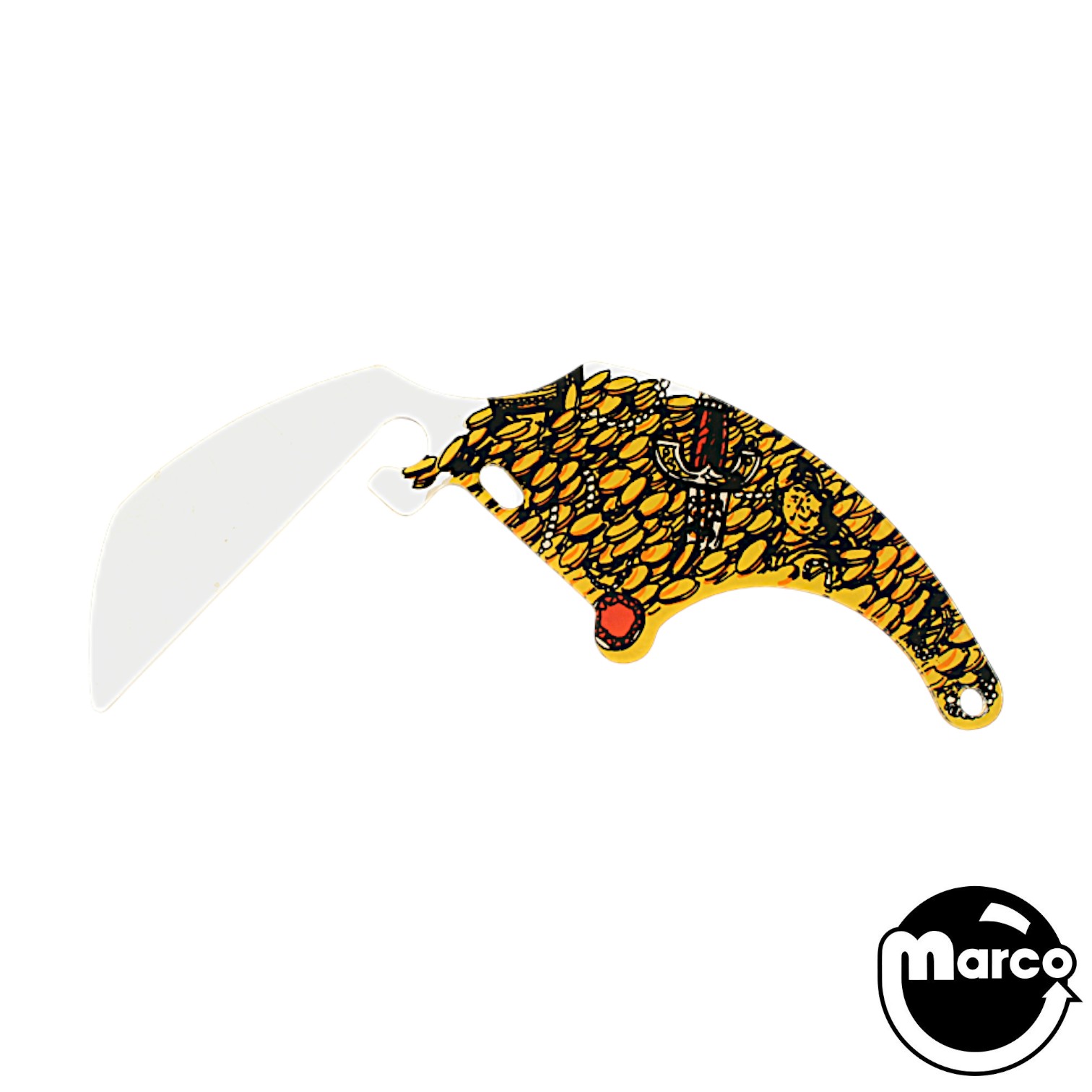

31-2545-12 (1) plfd plastic-arab nights
31-2546-1 (1) decal-top side
4008-01113-20 (4) ms 8-32x 1 1/4 pl-hwh
4008-01168-10 (8) ms 8-32X 5/8 pl-hh-s
4106-01114-08 (14) tcs No.6X1/2 pl-hwh t-17
4408-01118-00 (8) nut 8-32 tee 3/8 l
5791-09111-00 (1) 3p1396 03-09-2032
5791-09400-00 (1) 4P1490 03-09-2042
5820-13237-00 (7) male term pin .093 18-22
A-11905 (4) socket & No.44 bulb assy
A-14265-13 (2) receptacle & skt-clear
CW-30022-1 (35) wire 22awg brown
Select manufacturer to view game compatibility
CW-30022-4 (35) wire 22awg yellow
CW-30022-91 (35) wire 22awg wht/brn
CW-30022-94 (19) wire 22awg wht/yel
H-20859.1 (1) back panel cable
HW-30018-29 (35) wire 18awg red/wht
HW-30018-61 (15) wire 18awg blu/brn
HW-30018-62 (30) wire 18awg blu/red
RM-23-01 (4) tubing-heat shrink-1/8 poly
