Shop parts by
ATTACK FROM MARS (Bally) Motor assembly 3-bank
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Bally ATTACK FROM MARS pinball machine 3-bank motor assembly
Ships un-assembled
Reference:

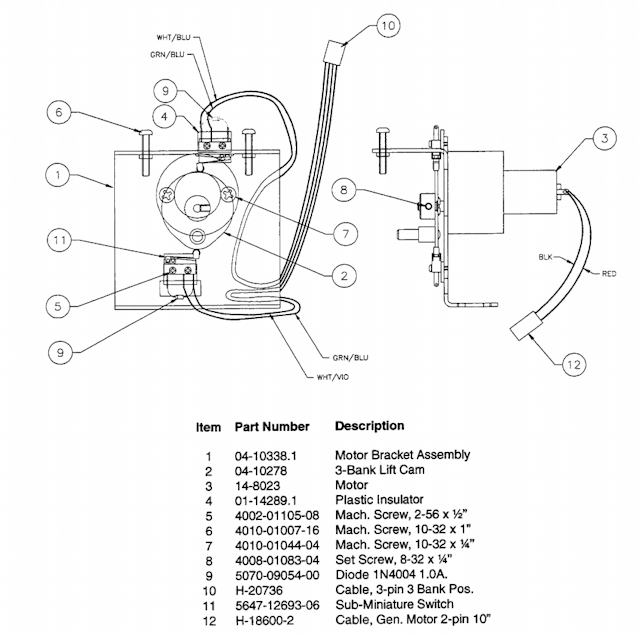

A-20572 motor assembly 3-bank
01-14289.1 (2) insulator-plastic
03-7520-2 (1) tie wrap-nylon 3 7/8
04-10278 (1) cam-3 bank lift
04-10338.1 (1) bracket-motor (3-bank)
14-8023 (1) motor-visor drive
4002-01105-08 (4) ms 2-56x1/2 p-ph-s
4008-01083-04 (1) ss 8-32x1/4 sh-cp-n
4010-01007-16 (2) ms 10-32x1 p-ph (unf)
5070-09054-00 (2) diode-1N4004 1.0a
5647-12693-06 (2) switch sub mini micro
5791-10770-00 (1) 3p11625 03-06-2032 nmt sm
5792-10817-02 (1) 2r mt end 22/156
5820-09078-00 (3) pm1560 02-06-2101
CW-30022-0 (10) wire 22awg black
CW-30022-2 (10) wire 22awg red
CW-30022-56 (12) wire 22awg grn/blu
CW-30022-96 (7) wire 22awg wht/blu
CW-30022-97 (9) wire 22awg wht/vio
H-18600-2 (1) general motor 2 pin-10"
H-20736 (1) 3 pin 3 bank position cable
Select manufacturer to view game compatibility

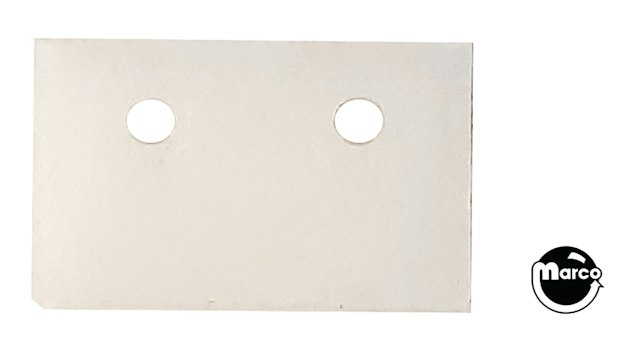

ATTACK FROM MARS (Bally) Insulator
Cable tie 3-7/8 inch nylon - single white
cam-3 bank lift
Bracket-motor (3-bank)
Target assembly motor Bally/Williams
E-63 switch with micro roller. REPLACES the 180-5119-00 and 180-5119-01
This is the small phillips panhead screw used to secure most playfield mic...
Set screw 8-32 x 1/4 inch sh-cp-nylon
Machine Screw 10-32 x 1 p-ph (unf)

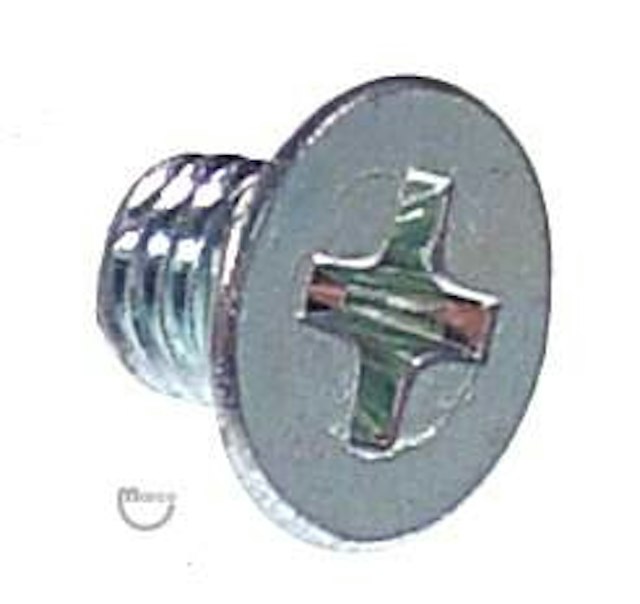

Machine Screw 10-32 x 1/4 inch p-flh
3 position plug uses .062 inch crimp terminals.

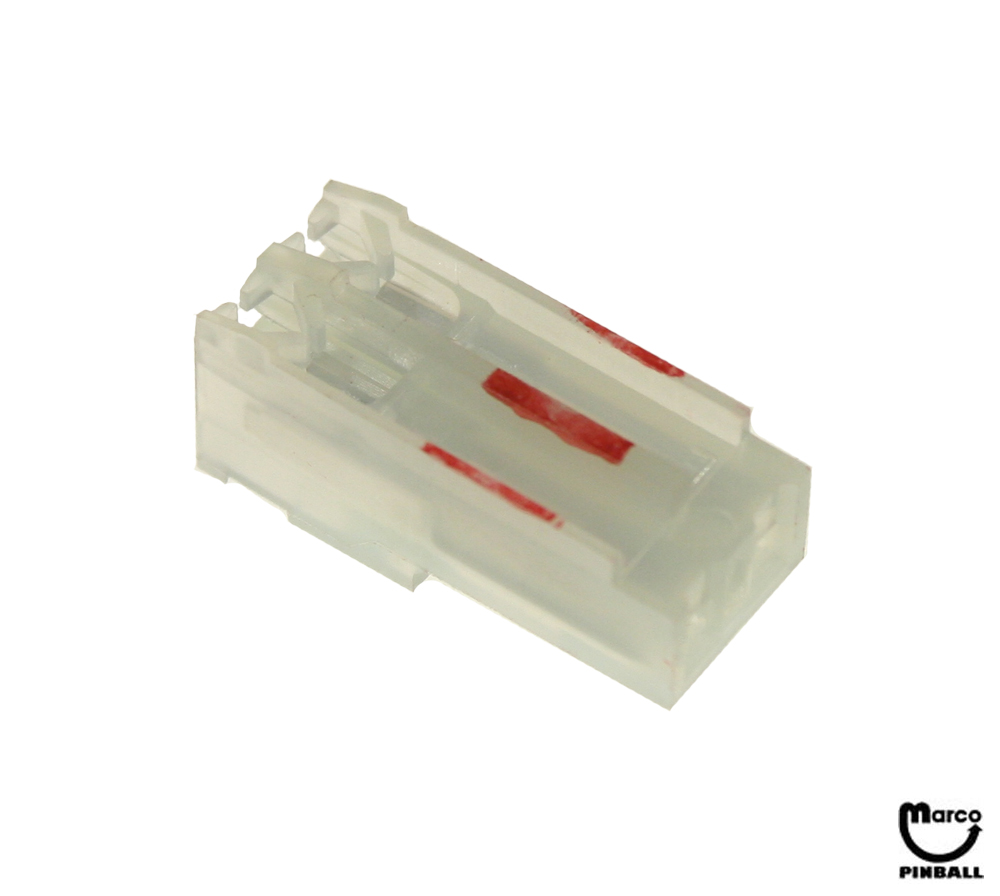

2r mt end 22/156
Crimp terminal .062 inch male
Wire 22 awg black / ft
Wire 22awg red / ft

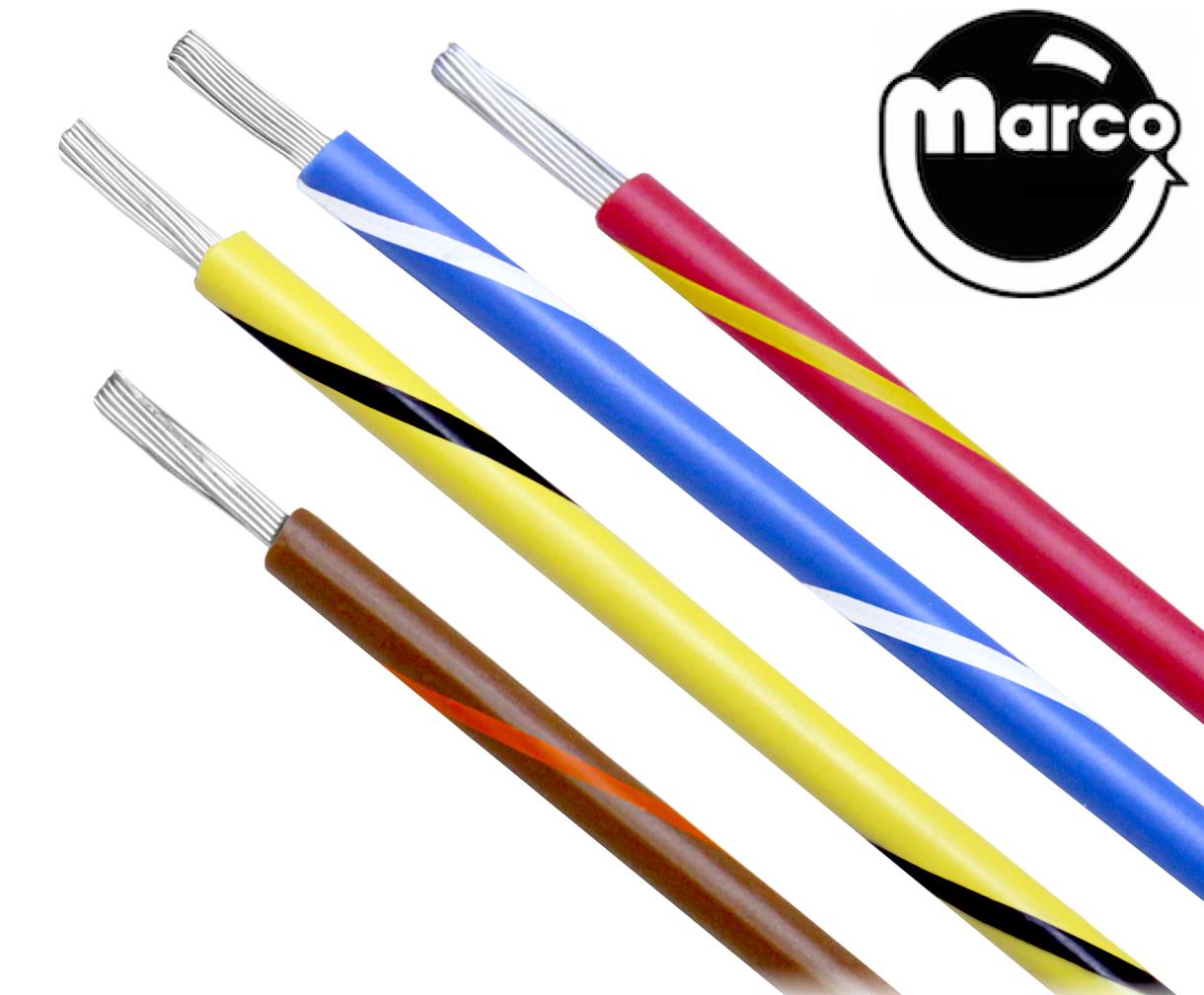

wire 22awg grn/blu
wire 22awg wht/blu
wire 22awg wht/vio

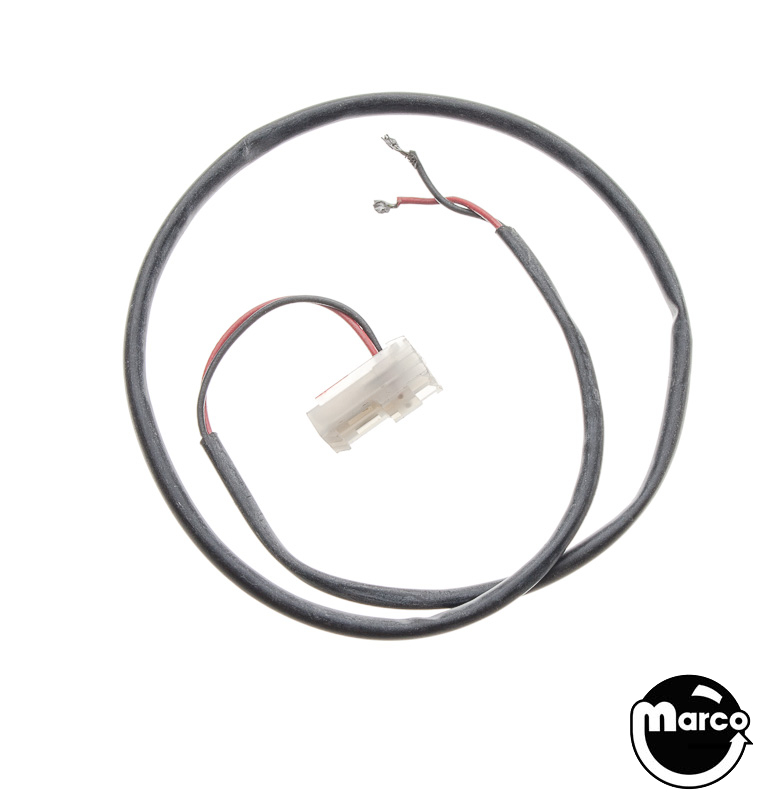

general motor 2 pin-10 inch USE H-18600-6
