INDY 500 (Bally) Ball popper assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

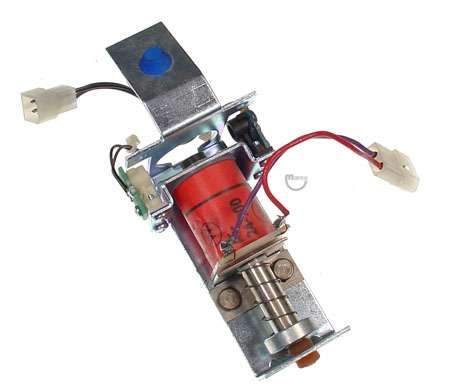

Bally INDY 500 pinball machine ball popper assembly
Ships un-assembled.
Reference:
A-20159 (1) ball popper assembly
03-7067 (1) tubing-coil
03-7520-2 (3) tie wrap-nylon 3 7/8
04-10072 (1) bracket-ball popper
04-10086.1 (1) bracket
10-135 (1) spring-plunger
23-6420 (1) grommet
23-6702 (1) pad-bumper plug
4106-01013-06 (4) sms No.6 x 3/8 p-ph t-25
4408-01119-00 (2) nut 8-32 esn
5791-10774-00 (1) 4P2004 03 06-2044
5791-12570-00 (1) 1545-Z 03-09-20225820-09078-00 (4) pm1560 02-06-2101
5820-09078-00 (2) terminal
CT093M - Crimp Terminal
A-16908 (1) opto led
A-16909 (1) opto p/t
A-17767 (1) bell armature
AE-24-900 (1) coil sub-assy
Select manufacturer to view game compatibility
Nylon coil sleeve, 1-7/8 inch long with 3/16 inch flange.
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
Cable tie 3-7/8 inch nylon - single white
Coil mounting bracket. Used in Bally ATTACK FROM MARS, Williams...
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
Used as plunger rest on up-kickers, knockers, pop bumper assemblies, etc.
Damper plug grommet 1 inch round blue
Sheet Metal Screw No.6 x 3/8 inch p-ph t-25
4 position plug uses .062 inch crimp terminals. Reference: 5791-10774-...
2 position plug with no mounting ears uses .093" crimp terminals.
Crimp terminal .062 inch male
Round .093 inch dia. male Molex connector pin terminal
Infrared Transmitter assembly in the white plastic housing.
Infrared receiver assembly in the black plastic housing.
Overall length is 3-3/8 inches with no hole in nylon tip.
Equivalent to A-24-900.
