DIRTY HARRY (Williams) Diverter assembly right
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams DIRTY HARRY pinball machine right diverter assembly.
Ships un-assembled.
Reference:

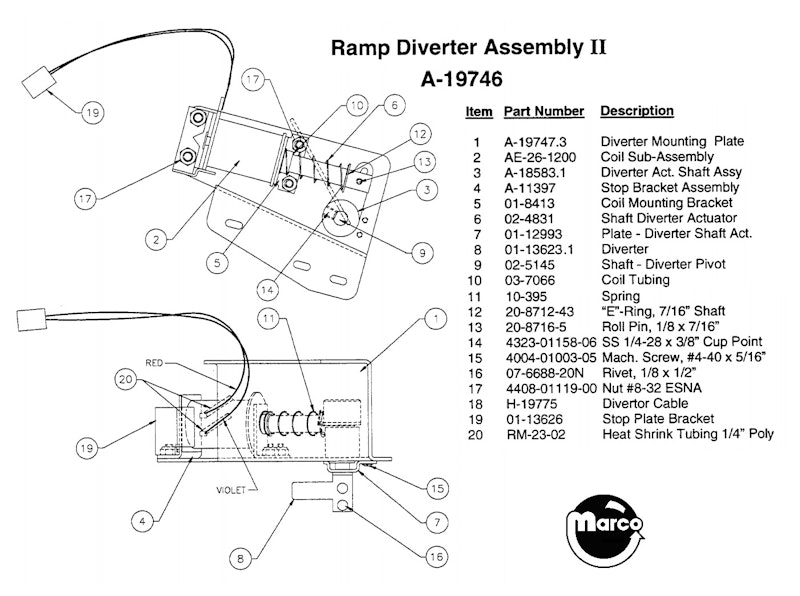

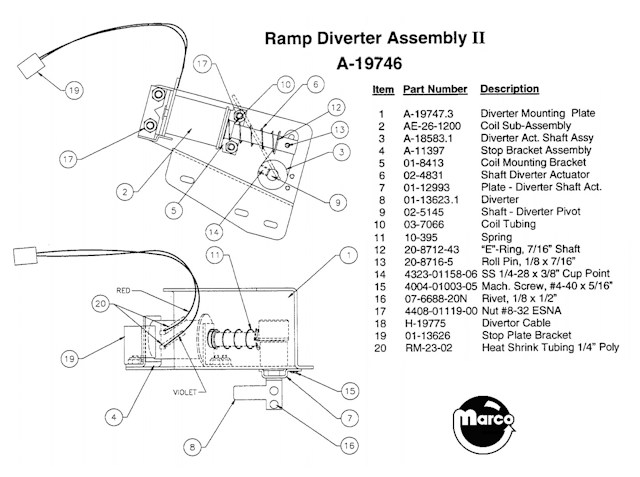

A-19746 diverter assembly-right
01-12993 (1) plate-diverter actuator
01-13623.1 (1) flag
01-13626 (1) bracket-coil hold
01-8413 (1) bracket coil mtg
02-4831 (1) shaft diverter actuator

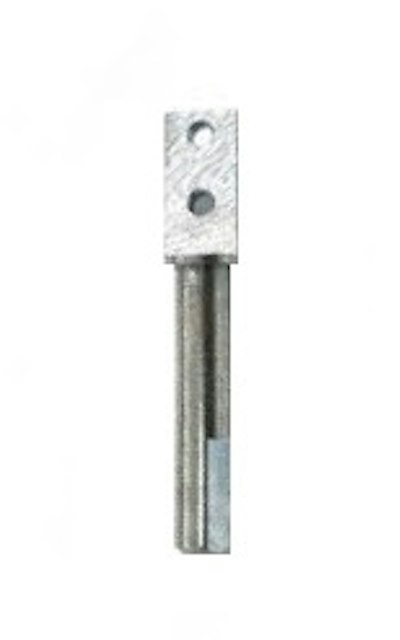

02-5145 (1) shaft-diverter
03-7066 (1) tubing-coil
07-6688-20N (2) rivet 1/4 x 1/8 nickel
10-395 (1) spring-red
20-8712-43 (1) e ring 7/16 shaft
20-8716-5 (1) pin roll 1/8 x 7/16
4004-01003-05 (2) ms 4-40 x 5/16 p-ph-s
4323-01158-06 (1) ss 1/4-28 x 3/8 sh-kn-cp
4408-01119-00 (4) nut 8-32 esn
5791-12570-00 (1) 1545-Z 03-09-2022
5820-09080-00 (2) terminal-pm1190 02-09-2101
A-11397 (1) drop target stop bracket
A-18583.1 (1) diverter shaft actuator
A-19747.3 (1) plate-diverter mtg
AE-26-1200 (1) coil
H-19775 (1) single coil cable 8"
HW-30018-2 (8) wire 18awg red
HW-30018-7 (8) wire 18awg violet
RM-23-02 (2) heat shrink tubing 1/4" poly
RM-23-03 (5) heat shrink tubing 3/16 dia
Select manufacturer to view game compatibility
Plunger - divertor actuator 2-3/8 inch long
Diverter shaft for Williams' DIRTY HARRY pinball machine...
Rivet - 1/8 x 1/4 inches nickel
Spring - compression
E-clip or e-ring commonly used on many mechanisms.
1/8" diameter x 7/16" length slotted spring roll pin. Reference:...
Machine screw with 4-40 thread and 5/16" long with phillips pan head and i...
Bracket - coil mounting
