CORVETTE (Bally) Engine assembly No.3
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
CORVETTE (Bally) Engine assembly No.3
Ships un-assembled.
Reference:

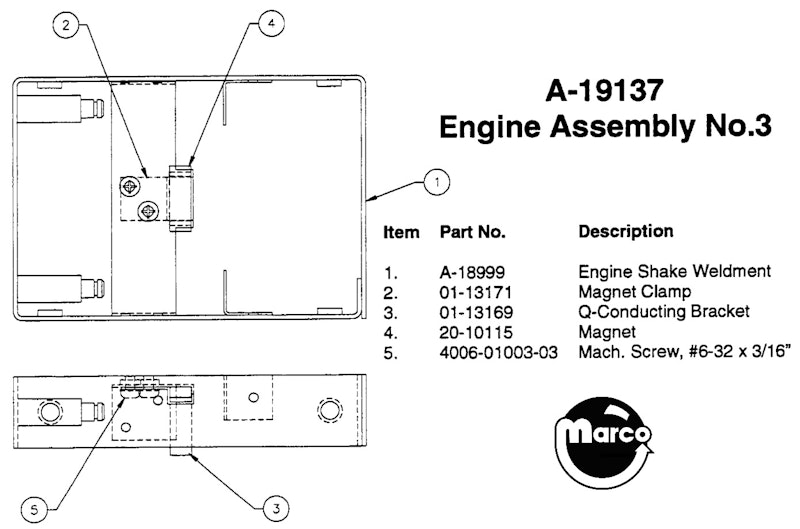

A-19137 engine assembly No.3
01-13169 (1) bracket-Q conducting
01-13171 (1) clamp-magnet
20-10115 (1) magnet-engine centering
4006-01003-03 (2) ms 6-32X3/16 p-ph-s
A-18999 (1) engine shake weldment
Select manufacturer to view game compatibility
Conducting Q bracket. Reference: 01-13169
Bally CORVETTE clamp magnet. Reference: 01-13717
CORVETTE (Bally) Magnet - engine centering
Machine screw with 6-32 thread and 3/16" long with phillips pan head and attached lockwasher.
Bally CORVETTE pinball machine engine shake weldment.
Bally CORVETTE clamp magnet. Reference: 01-13717
