Bally CORVETTE pinball machine racetrack opto board set upgrade kit.
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

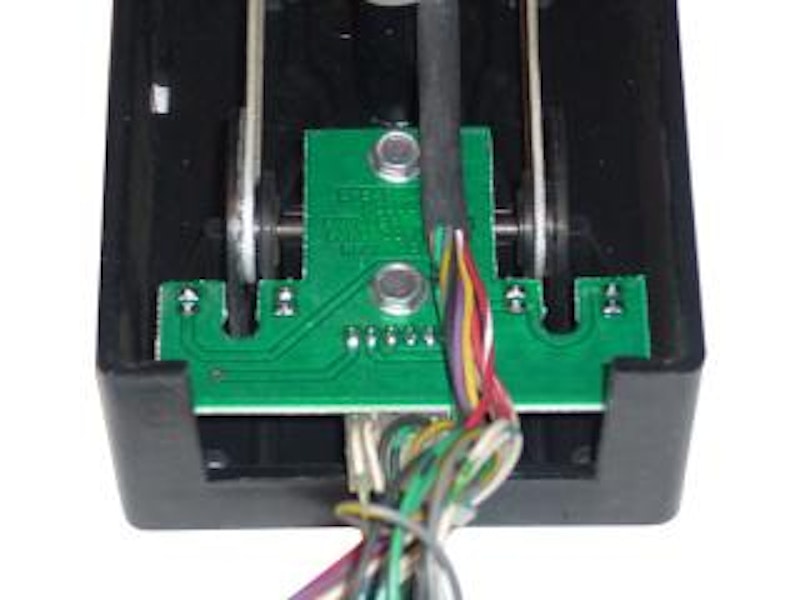

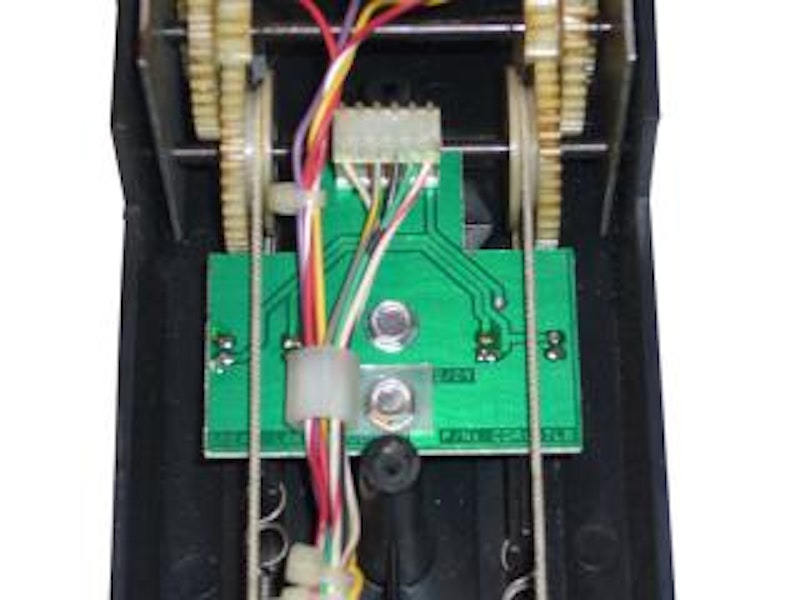

Bally CORVETTE pinball machine 2 piece racetrack opto board set upgrade kit.

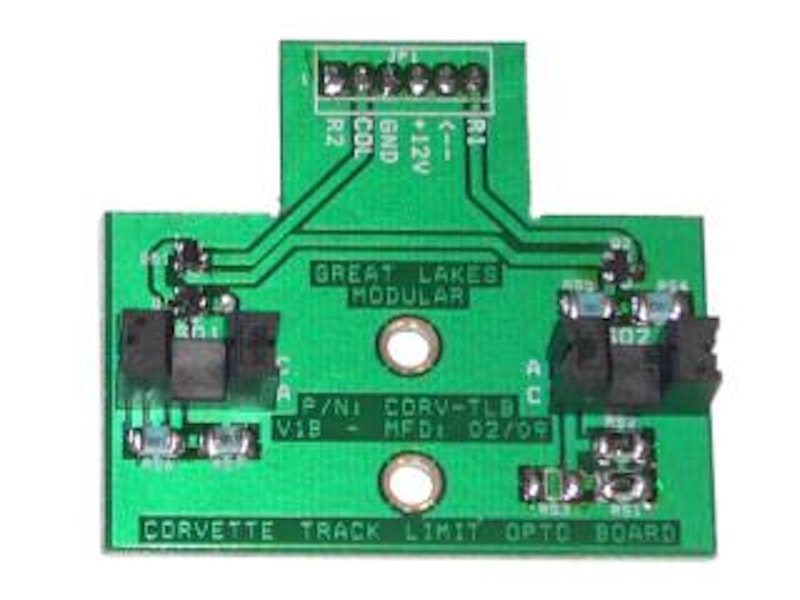

The set includes a new racetrack opto encoder board (A-18222) and a new track limit opto board (A-18221).
This new design board set has a number of significant advances:
New buffered optos are no longer directly connected to the switch matrix.
Lower current consumption and less heat, for longer life.
Reference:
A-18821 assembly
A-19606 assembly
5768-14142-02 board

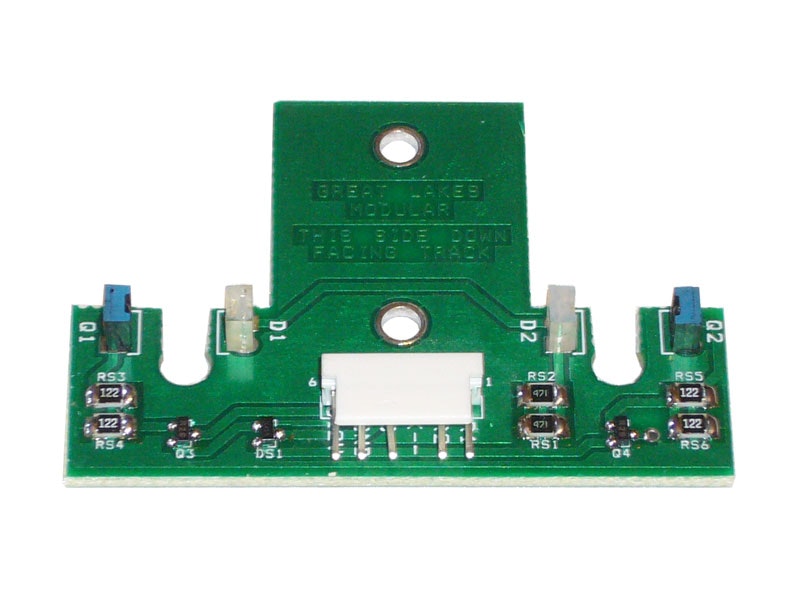

Track Encoder Board
A-18822
5160-10269-00 (2) transistor 2N3904 npn
5490-14327-00 (2) ic opto integrated with Schmidt trigger
5791-13830-06 (1) 6h str sq pin .100 solid tab
