SHADOW (Bally) Drop Target Assembly 4

#A-18783

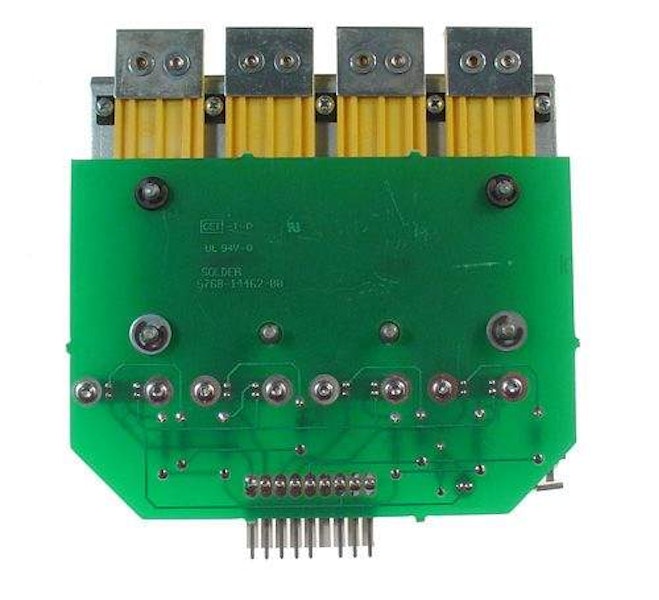

Bally THE SHADOW complete mini playfield drop target Battlefield assembly - includes bracket, coil, targets, PC board.

Ships un-assewmbled

Reference:

  • A-18783 drop target assembly
  • 01-9548 (1) brkt coil mtg
  • 03-7066-4 (1) tubing-coil
  • 03-8334-4 (1) target stop 5 3/16
  • 10-364 (4) spring-retractor
  • 10-392 (4) spring-extension
  • 20-8712-18 (4) e ring 3/16 shaft
  • 20-8712-25 (8) e ring 1/4 shaft
  • 23-6626 (4) grommet
  • 4004-01005-04 (5) ms 4-40X1/4 p-ph
  • 4408-01119-00 (4) nut 8-32 esn
  • 4700-00016-00 (2) fw .187X.437X.053
  • 4700-00072-00 (8) fw .265X.500X.032
  • A-11397 (1) drop tgt stop bkt
  • A-18781 (1) brkt & post assy
  • A-19552 (4) target cap assy
  • A-19651 (1) 4 bank reset plate assy
  • A-19666 (1) pcb assy-4 bnk d/tgt cornerd
  • AE-25-1000 (1) coil assy comp

3 lb

$90.00

Out Of Stock
