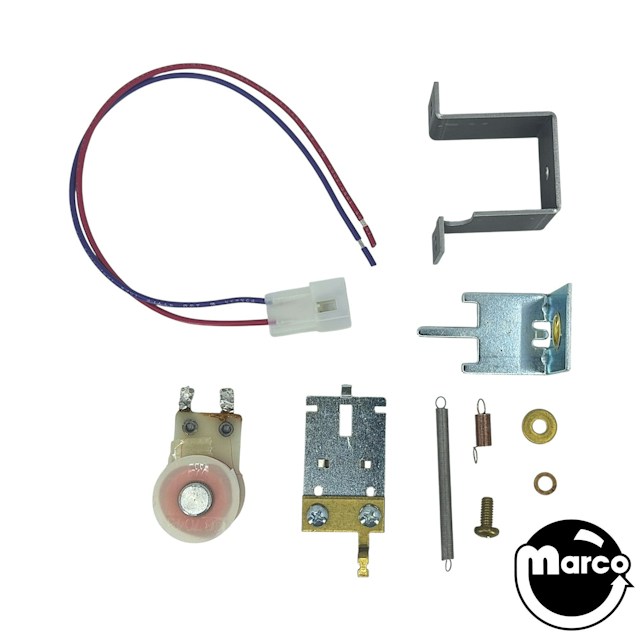

Ball gate actuator assembly

Ball gate actuator coil assembly

Cable is available separately. Ships un-assembled

Reference:

• A-17796

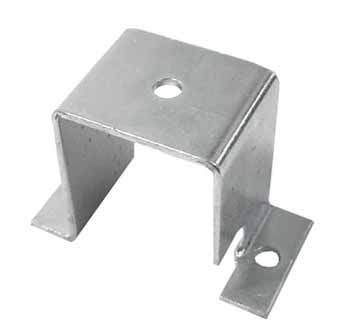

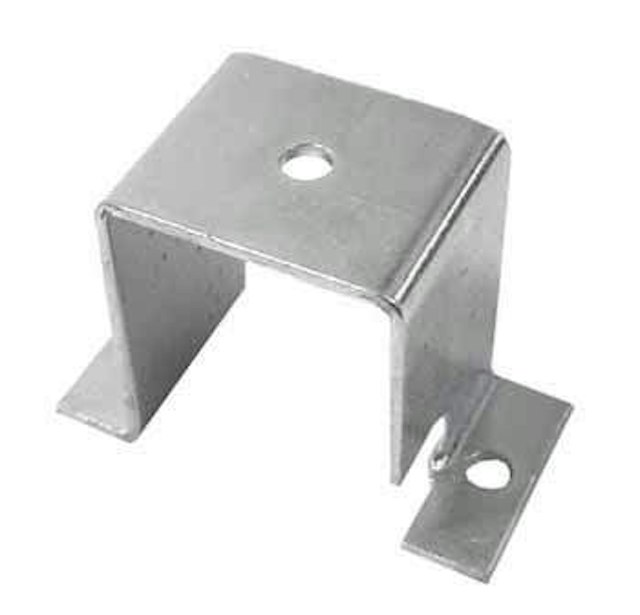

• 01-12348 (2) bracket-ball gate coil

• 10-120 (2) spring-armature

• 10-194 (2) spring-extension

• 4008-01021-07 (2) screw 8-32 x 7/16 p-rh-brass

• 4700-00089-00 (2) washer .172 x .437 x .062 brass

• 4701-00003-00 (2) lw No.8 split

• 5791-12570-00 (2) 1545-Z 03-09-2022

• 5820-09080-00 (4) terminal-pm1190 02-09-2101

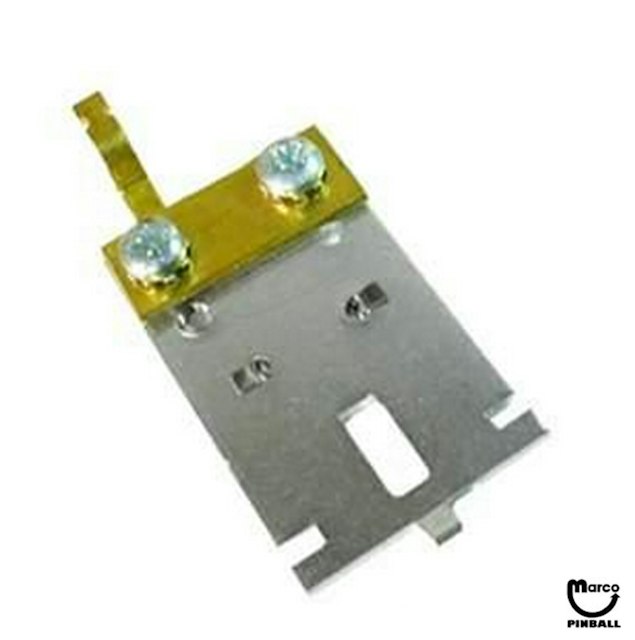

• A-11146 (2) ball gate armature assy

• A-14406 (2) coil assy

• A-6892 (2) frame & eyelet assy
