DEMOLITION MAN (Williams) Chute & ball popper assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams DEMOLITION MAN pinball machine chute & ball popper assembly
Ships un-assembled

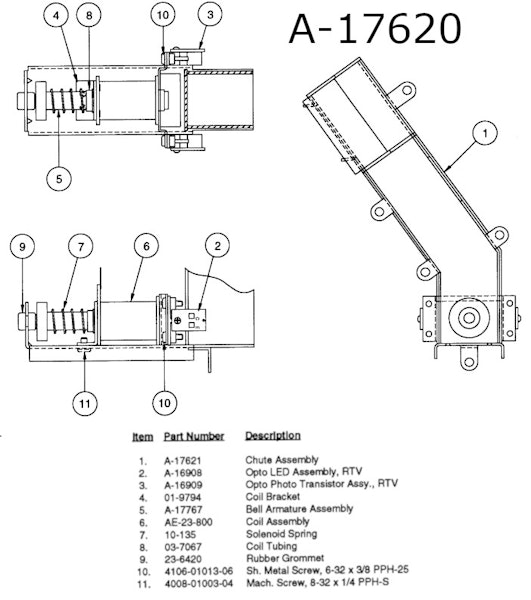

Reference:
A-17620 chute and popper assembly
01-9794 (1) bracket mounting
03-7067 (1) tubing-coil
10-135 (1) spring-plunger
23-6420 (1) grommet
4008-01003-04 (2) screw 8-32x 1/4 p-ph s
4106-01013-06 (4) sms No.6 x 3/8 p-ph t-25
5791-10774-00 (1) 4P2004 03 06-2044
5820-09078-00 (4) pm1560 02-06-2101
A-16908 (1) opto led
A-16909 (1) opto p/t
A-17767 (1) bell armature
A-18505 (1) chute weldment
AE-23-800 (1) coil
CW-30022-0 (4) wire 22awg black
CW-30022-3 (4) wire 22awg orange
CW-30022-8 (4) wire 22awg gray
CW-30022-84 (4) wire 22awg gry/yel
H-17609-4 (1) opto cable - square
