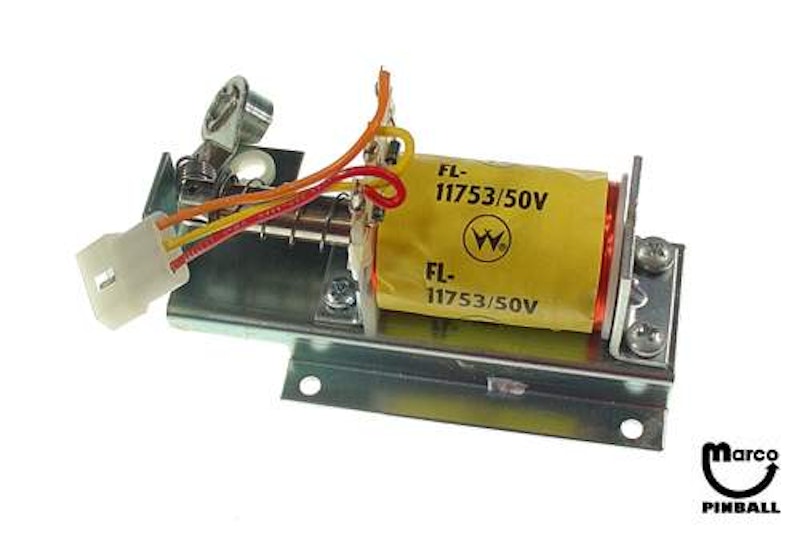

Ramp diverter assembly kit

#A-17241

Bally / Williams ramp diverter asembly.

Bracket, Fl-11753 coil, plunger included. Diverter arm A-20556 not part of this assembly.

Ships un-assembled

Reference:

  • A-17241 diverter assembly
  • 01-11957 (1) brkt ramp diverter mtg
  • 01-7695-1 (1) brkt-solenoid
  • 03-7066-5 (1) tubing-coil
  • 10-303 (1) spring-master
  • 20-8790 (1) nyliner bearing
  • 4006-01017-04 (2) ms 6-32X1/4 p-rh-s
  • 4010-01066-06 (2) cs 10-32 X 3/8 sh
  • 4010-01169-04 (1) ss 10-32X1/4 sh-cp-n
  • 4701-00004-00 (2) lw #10 split
  • A-12390 (1) flpr stop brkt
  • A-14185 (1) drive arm assy
  • A-16636 (1) diverter plunger assy
  • A-20099 (1) coil assy

1.05 lb

$107.99

Out Of Stock
