TWILIGHT ZONE (Bally) Mini playfield assembly
Ships un-assembled.
Reference:
A-16806 mini plfd assy
01-11217 (1) ball guide-mini plfd
01-11524 (1) mini plfd-protector
02-4425-1 (2) post fastner 8-32/8-32x5/8top
02-4426-1 (2) post-fastner No.8 ws 6-32 top
02-4426-2 (1) post-fastner No.8ws 6-32top
02-4660 (1) post-single bumper No.10
03-6047 (1) spacer 9/16
03-7520-2 (24) tie wrap-nylon 3 7/8
03-7655-4 (4) "clamp cable 1/4""dia"
03-7655-8 (5) "clamp cable 1/2""dia"
03-8022-1 (5) "spacer .541 L"""
03-8063-6 (1) sleeve lite-yellow
03-8319-13 (8) post No.8 starred-clear
03-8371 (3) spacer spool No.8
20-9247 (1) coil magnet
20-9247-1 (1) coil magnet
20-9672 (1) switch protect cover
20-9860 (4) switch protect cover
23-6303 (2) "white rubber ring 1 1/4"""
23-6305 (2) "white rubber ring 2"""
23-6535 (1) grommet-rubber white
23-6710-2 (3) "tubing-clear No.10 1 1/2"" long"
23-6710-4 (1) "tubing-clear No.10 2 1/2"" long"
Select manufacturer to view game compatibility
31-1002A-50020 (1) plfd scrnd-mini-twilight zone
31-1765-32 (1) plfd plastic-twilight zone
31-1765-33 (1) plfd plastic-twilight zone
36-50020-1 (1) scrn up plfd w/hrdct twlt zone
4008-01005-28 (4) ms 8-32X1-3/4 p-ph
4008-01005-32 (2) ms 8-32x2 p-ph
4106-01013-10 (2) sms No.6 x 5/8 p-ph t-25
4106-01114-08 (12) tcs No.6X1/2 pl-hwh t-17
4106-01115-06Y (16) sms No.6x3/8 pl-hwh-yel
4106-01115-16 (6) sms No.6X1 pl-hwh-a
4406-01119-00 (3) nut 6-32 esn
4408-01118-00 (8) nut 8-32 tee 3/8 l
4408-01119-01 (2) nut 8-32 esna/ntm
4410-01132-01 (1) nut 10-32 esna/ntm
4700-00021-00 (1) fw .203X.437X.032
5070-09054-00 (1) diode-1N4004 1.0a
5791-09138-00 (1) 9P1625 03-06-2092
5791-09192-00 (2) 6P1625 03-06-2061
5791-10772-00 (1) 2P11625 03-06-2023
5791-10774-00 (1) 4P2004 03 06-2044
5792-10771-00 (2) 3R11625 03-06-1032
5792-10773-00 (2) 2R11625 03-06-1023
5792-10775-00 (1) 4R2004 03-06-1044
5820-09078-00 (26) pm1560 02-06-2101
5821-09079-00 (12) pf1561 02-06-1101
A-12336-1 (1) socket & No.906 bulb assy
A-12753-2 (3) lug & diode assy
A-12887 (4) socket & No.555 bulb assy
A-13769A-50020 (1) mini plfd & insert-twilt zone
A-15257 (2) brkt & pole piece assy
A-16326 (1) mini plfd exit opto assy
A-16416-1 (2) mini plfd switch & brkt assy
A-16416-2 (1) mini plfd switch & brkt assy
A-16416-3 (1) mini plfd switch & brkt assy
A-16518 (1) ball guide opto assy
A-16519 (1) ball guide & switch assy
A-16632 (1) street light assy
A-16651-9 (1) plfd plastic assy
CW-30022-0 (35) wire 22awg black
CW-30022-03 (28) wire 22awg blk/org
CW-30022-2 (34) wire 22awg red
CW-30022-21 (22) wire 22awg red/brn
CW-30022-26 (17) wire 22awg red/blu
CW-30022-27 (17) wire 22awg red/vio
CW-30022-28 (19) wire 22awg red/gry
CW-30022-3 (19) wire 22awg orange
CW-30022-35 (24) wire 22awg org/grn
CW-30022-36 (20) wire 22awg org/blu
CW-30022-4 (7) wire 22awg yellow
CW-30022-47 (34) wire 22awg yel/vio
CW-30022-48 (22) wire 22awg yel/gry
CW-30022-54 (78) wire 22awg grn/yel
CW-30022-8 (44) wire 22awg gray
CW-30022-85 (19) wire 22awg gry/grn
CW-30022-86 (18) wire 22awg gry/blu
CW-30022-93 (19) wire 22awg wht/org
CW-30022-94 (22) wire 22awg wht/yel
CW-30022-95 (28) wire 22awg wht/grn
CW-30022-96 (44) wire 22awg wht/blu
H-16502 (1) mini plfd cable
H-16508 (1) lamp cable
HW-30018-61 (19) wire 18awg blu/brn
HW-30018-62 (17) wire 18awg blu/red
HW-30018-7 (19) wire 18awg violet
HW-30018-79 (17) wire 18awg vio/wht
RM-32-03 (1) label-light blue 3 1/2"x1"

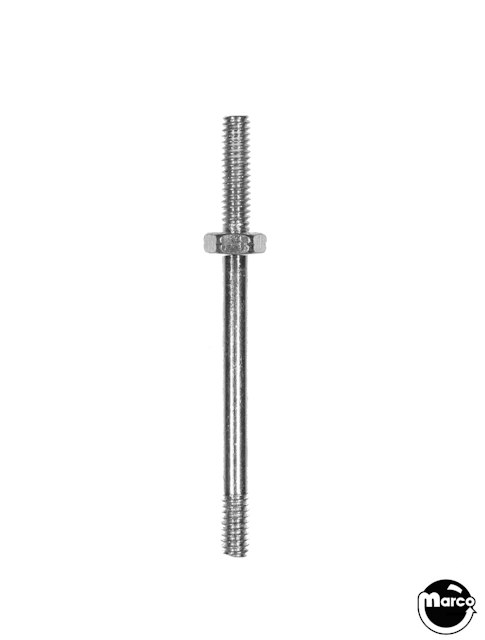

#8-32 top thread and #8-32 bottom thread with 5/16 inch hex collar steel/zinc.

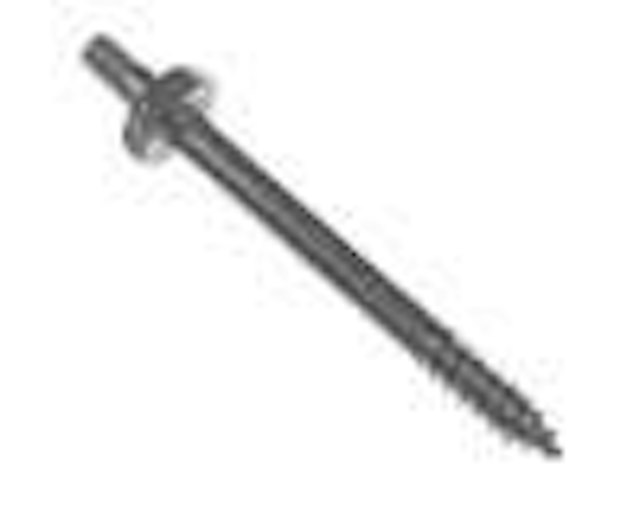

Post stud #8 x 1-1/2 inch wood screw USE 530-5010-01
Post stud No.8 x 2-1/16 inch wood screw with 6-32 top
Single post bumper #10 with 10-32 thread.
