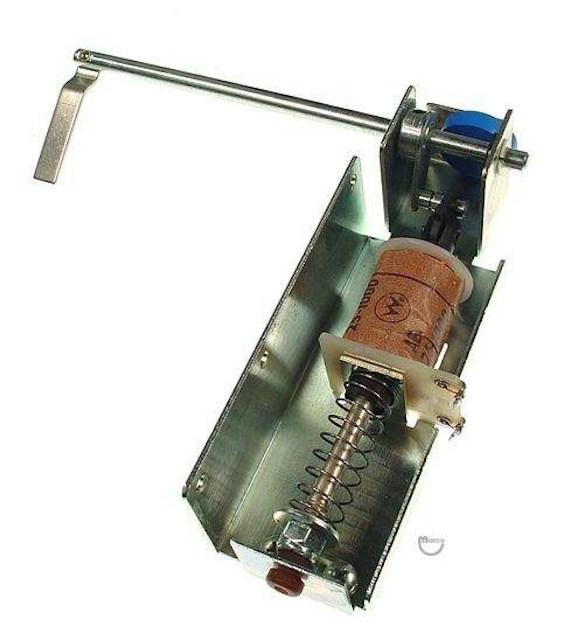

Bally JUDGE DREDD pinball machine diverter assembly
Reference:
A-16802 diverter assembly
01-11573 (1) bracket
01-8-508-T (1) bracket coil retainer
03-7067-5 (1) tubing-coi
l10-437 (1) spring-kicker heavy
20-8712-25 (1) e-ring 1/4 inch shaft
20-8790 (2) nyliner bearing
23-6420 (1) grommet
23-6686 (1) pad-round
4008-01017-04 (2) ms 8-32 x 1/4 p-rh-s4
008-01083-04 (1) ss 8-32 x 1/4 sh-cp-n
4010-01006-04 (2) ms 10-32 x 1/4 p-ph-s
4420-01119-00 (1) nut 1/4-20 esn/ne
4700-00033-00 (1) fw .265 x .750 x .067

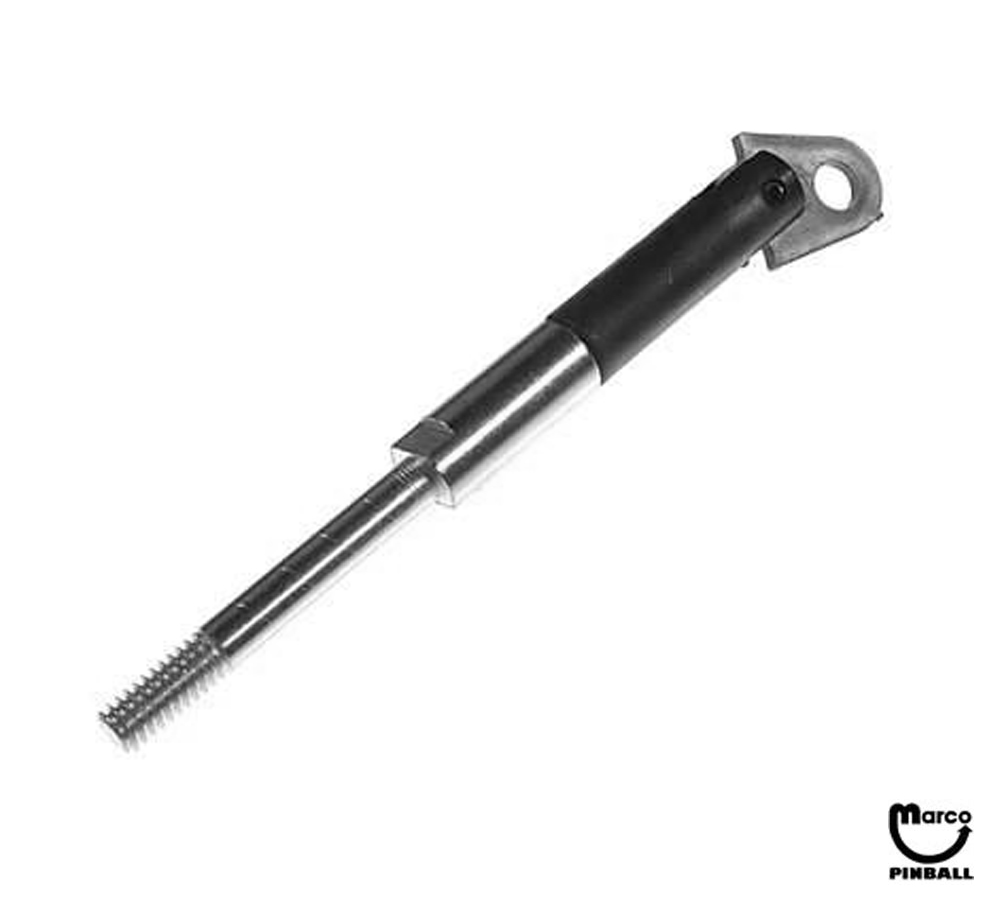

A-16780 (1) plunger assy
A-16782 (1) crank assy
A-16988 (1) bracket assy
A-17616 (1) shaft assy
AE-25-1000 (1) coil
