JUDGE DREDD (Bally) Planet assy
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

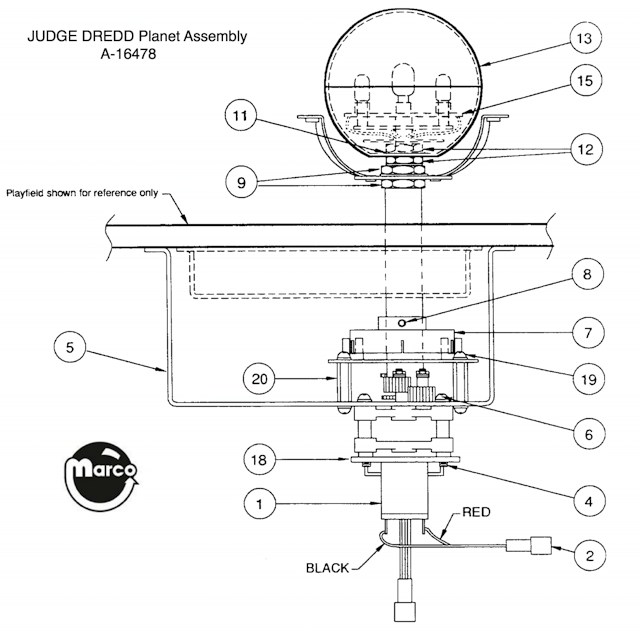

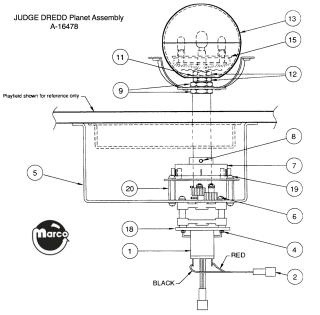

Bally JUDGE DREDD pinball planet assembly
Ships un-assembled
Reference:
A-16478 planet assembly
02-4466-8 (4) spacer f-f 8-32x 15/16 1/4hex
02-4776 (2) nut 750-16
02-4777 (2) nut 1/2-27
03-7520-2 (8) tie wrap-nylon 3 7/8
03-8858 planet
03-8869 lower interrupter
14-7985 motor
4008-01005-06 (8) machine screw 8-32 x 3/8 p-ph
4008-01017-06 (4) machine screw 8-32 x 3/8 p-rh-s
4008-01083-03 ss 8-32 x 1/2 sh-cp-n
4408-01128-00 (2) nut 8-32 keps
4702-00019-00 lock washer 1/2 internal tooth
4702-00023-00 lock washer 3/4 internal tooth
5791-10772-00 (2) 2P11625 03-06-2023
5792-10817-02 2r mt end 22/156
5820-09078-00 (4) pm1560 02-06-2101
A-16336 washer & leg
A-16475 light
A-16527 bracket & opto
A-16598 planet opto pcb
A-16808 motor bracket
CW-30022-0 (22) wire 22awg black
CW-30022-2 (22) wire 22awg red
CW-30022-29 (23) wire 22awg red/wht
CW-30022-5 (23) wire 22awg green
CW-30022-62 (23) wire 22awg blu/red
CW-30022-95 (23) wire 22awg wht/grn
H-16901 planet cable-20020
H-16961 planet-motor cable 20020
RM-23-03 (9) heat shrink tubing 3/16 dia
Select manufacturer to view game compatibility
JUDGE DREDD (Bally) plastic planet
JUDGE DREDD (Bally) lower interrupter
JUDGE DREDD (Bally) Planet motor

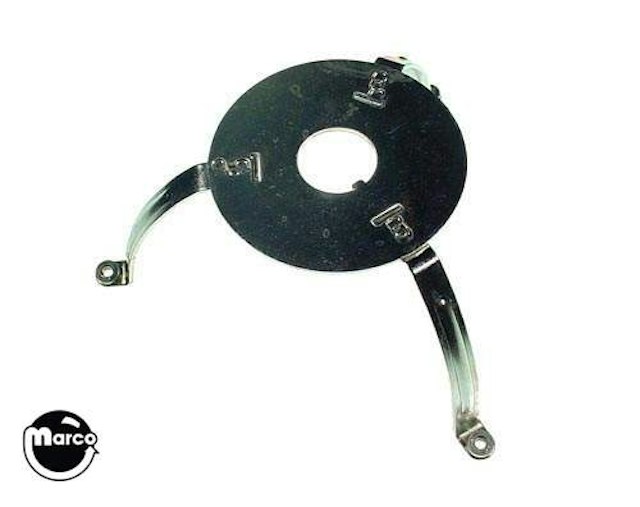

Bally JUDGE DREDD washer & leg. Reference: A-16336

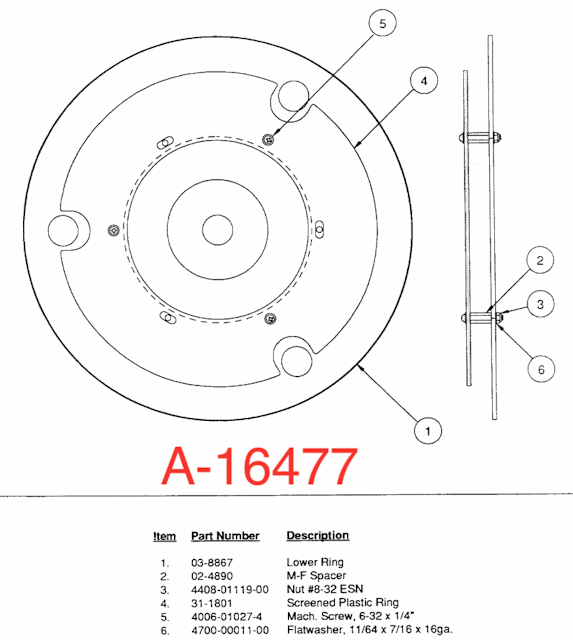

JUDGE DREDD (Bally) Ring assembly
