Ball popper & opto assembly

#A-15769

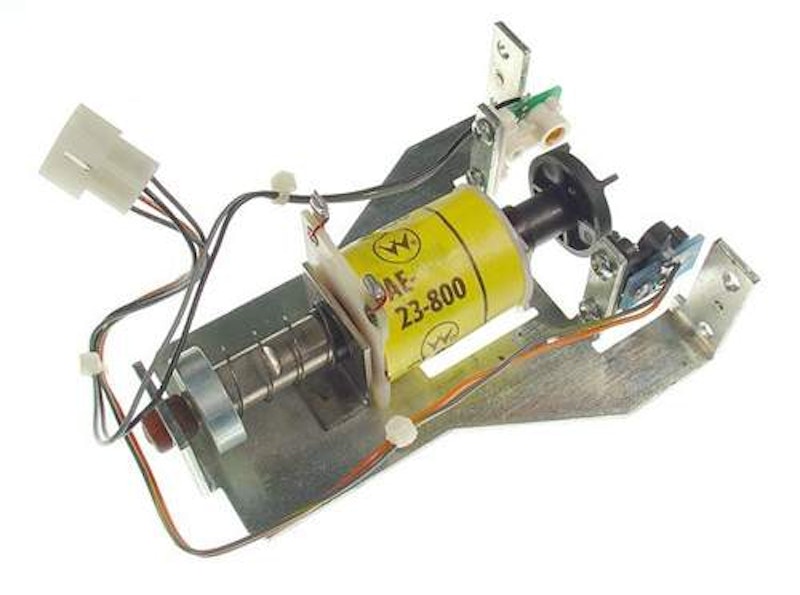

Williams ball popper and opto assembly.

Includes Williams AE-23-800 coil plunger with ball popper, opto set, bracket and cable with connector.

Ships un-assembled

Reference:

  • A-15769 ball popper & opto assy
  • 01-9794 (1) bracket mounting
  • 02-4668 (1) armature & extension
  • 03-7067-5 (1) tubing-coil
  • 03-7520-2 (3) tie wrap-nylon 3 7/8
  • 03-8561 (1) cup-ball popper
  • 10-135 (1) spring-plunger
  • 23-6420 (1) grommet
  • 4008-01017-04 (2) ms 8-32X1/4 p-rh-s
  • 4106-01013-06 (4) sms #6 x 3/8 p-ph t-25
  • 4106-01152-06 (1) sms #6x3/8 tfp-fl
  • 5791-09188-00 (1) 4P1625 03-06-2042
  • 5820-09078-00 (4) pm1560 02-06-2101

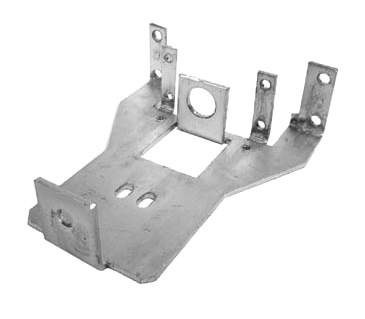

  • A-15914 (1) ball popper bracket
  • A-16908 (1) opto led
  • A-16909 (1) opto photo xmtr
  • AE-23-800 (1) coil assy

    Wire harness not included:

    • CW-30022-0 (10) wire 22awg black
    • CW-30022-3 (10) wire 22awg orange
    • CW-30022-8 (10) wire 22awg gray
    • CW-30022-84 (10) wire 22awg gry/yel

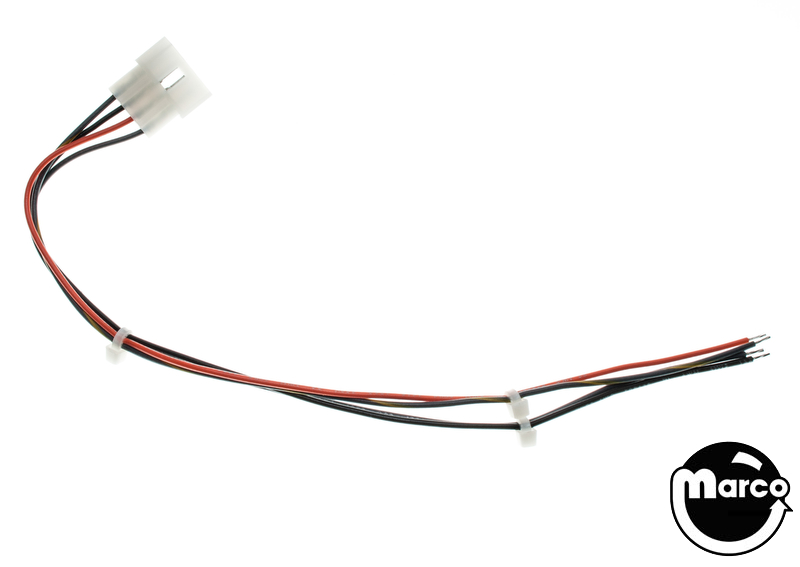

    • H-16229 (1) plfd opto cable

0.78 lb

$59.99

Out Of Stock
