WHITE WATER (Williams) Big Foot mechanism assembly

Name: WHITE WATER (Williams) Big Foot mechanism assembly
SKU: A-15573
Price: 443.99 USD
Availability: OutOfStock

#A-15573For Reference

This product is currently discontinued.

CALIFORNIA WARNING

This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

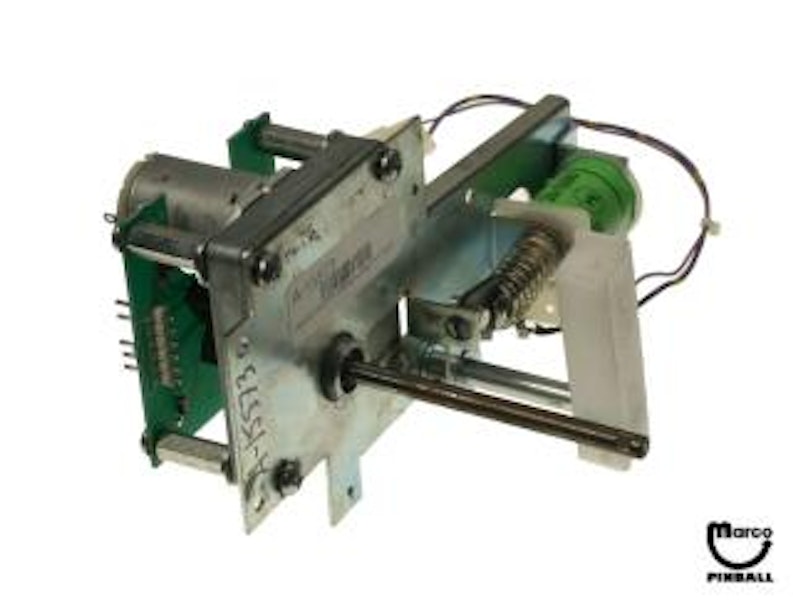

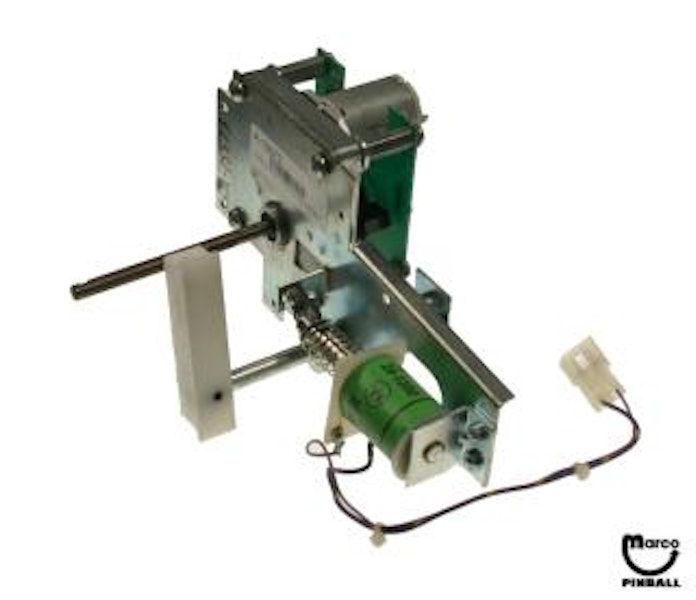

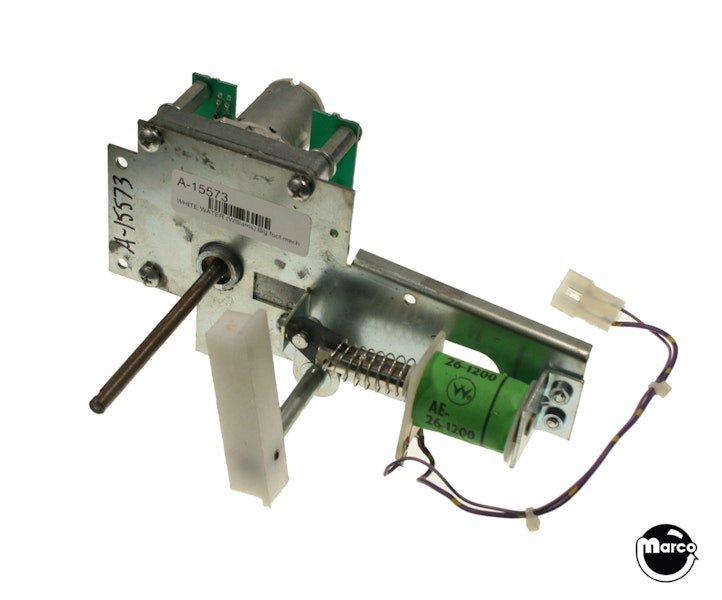

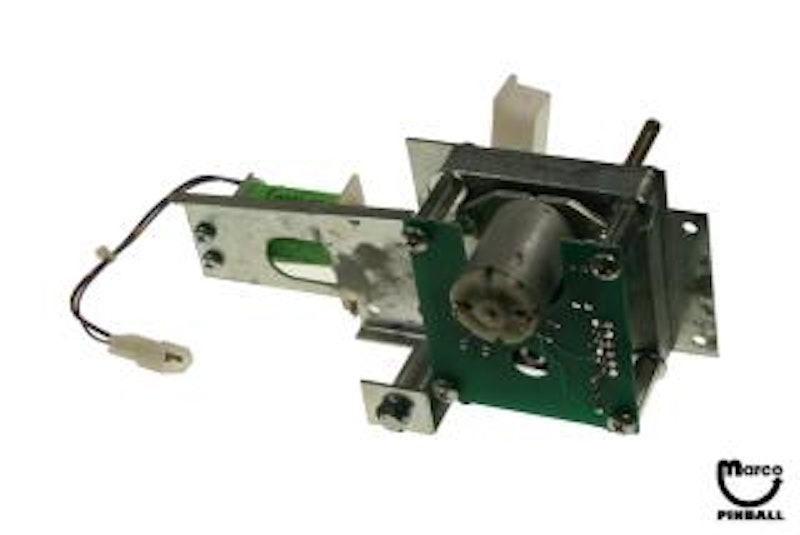

Williams WHITEWATER pinball machine Big Foot mechanism assembly

Ships un-assembled

Reference:

A-15573 Big Foot mechanism assembly01-10746 (1) bracket big foot base01-10892 (1) bracket solenoid02-3407-2 (1) plunger coil 2-1/802-4564 (3) standoff02-4666 (1) block-Big Foot head mount02-4699 (2) hub drive pawl03-7066 (1) tubing-coil03-7520-2 (4) tie wrap-nylon 3 7/803-8085 (1) armature link03-8698 (1) actuator - opto switch10-399 (1) spring-compression12-6227 (1) clip-hair pin14-7973 (1) motor-gear20-8712-31 (1) e ring 5/16 shaft20-8716-5 (1) pin roll 1/8 x 7/1623-6577 (1) rubber bumper plug 5/84006-01017-06 (3) ms 6-32X3/8 p-rh-s4006-01076-04 (1) ss 6-32X1/4 sh-cp4008-01003-05 (2) ms 8-32X5/16 p-ph-s4010-01006-04 (7) ms 10-32x1/4 p-ph-s4106-01033-08B (2) sms No.6X 1/2 p-tr-hd-a4408-01119-01 (1) nut 8-32 esna/ntm4700-00030-00 (1) fw .265X.500X.0674700-00060-00 (3) fw .219X.500X.0634700-00104-00 (1) fw .361X.500X.0595791-10774-00 (1) 4P2004 03 06-20445820-09078-00 (4) pm1560 02-06-2101A-15668 (1) opto 2 switch pcb assemblyA-16046 (1) Big Foot head assemblyA-16047 (1) Big Foot body & log assemblyA-16243 (1) diverter & shaft assemblyAE-26-1200 (1) coil assy compCW-30022-01 (15) wire 22awg blk/brnCW-30022-2 (8) wire 22awg redCW-30022-29 (15) wire 22awg red/whtCW-30022-9 (8) wire 22awg whiteH-15797 (1) Big Foot cable-50018H-15797-C (1) Big Foot cable-50018

#A-15573
