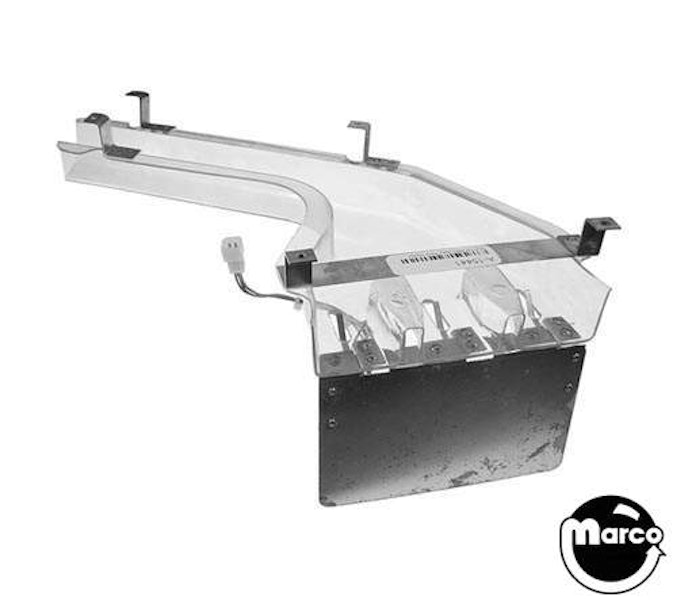

Bally DOCTOR WHO pinball machine lower ramp assembly.
Includes 3 micro switches and wire harness. Sold as is.
Reference:
A-12238 switch assembly01-10678 (5) bracket lower ramp01-10679 (1) bracket ball protector01-10718 (1) plate-ramp cover01-10719 (1) insulator-switch01-10900 (3) bracket switch01-8240 (3) plate-nut No.2-5603-7520-2 (3) tie wrap-nylon03-8665 (1) ramp-lower level07-6688-16N (4) rivet 1/8 x 1/8 nickel07-6688-18N (15) rivet 3/16 x 1/8 nickel07-6688-19N (4) rivet 7/32 x 1/8 nickel4002-01105-07 (6) screw 2-56 x 7/16 p-ph-s5791-10774-00 (1) 4P2004 03 06-20445820-09078-00 (4) pm1560 02-06-2101A-12238 (3) sub mini switchCW-30022-56 (10) wire 22awg grn/bluCW-30022-57 (8) wire 22awg grn/vioCW-30022-58 (6) wire 22awg grn/gryCW-30022-98 (20) wire 22awg wht/gryH-15511 cable assembly
