ADDAMS FAMILY (Bally) Hand drive assembly
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Bally ADDAMS FAMILY pinball machine Hand drive assembly
Ships un-assembled
Reference:
A-14711 hand drive assembly
01-10561 (1) bracket motor
01-10655 (1) bracket anti trap
02-4603 (1) core-magnet
03-7520 (1) tie wrap-nylon 7-1/2"
03-7520-2 (1) tie wrap-nylon 3 7/8
14-7966 (1) motor 140
31-1677 (1) washer-color
31-1684 (1) hand-decorated
4006-01003-04 (2) ms 6-32X1/4 p-ph-s
4008-01003-08 (2) ms 8-32 X 1/2 p-ph-s
4010-01006-10 (1) ms 10-32X5/8 p-ph-s
4010-01062-10 (1) ms 10-32X5/8 sl-bndr-hd brass
4010-01082-04 (1) ss 10-32X1/4 sh-cp

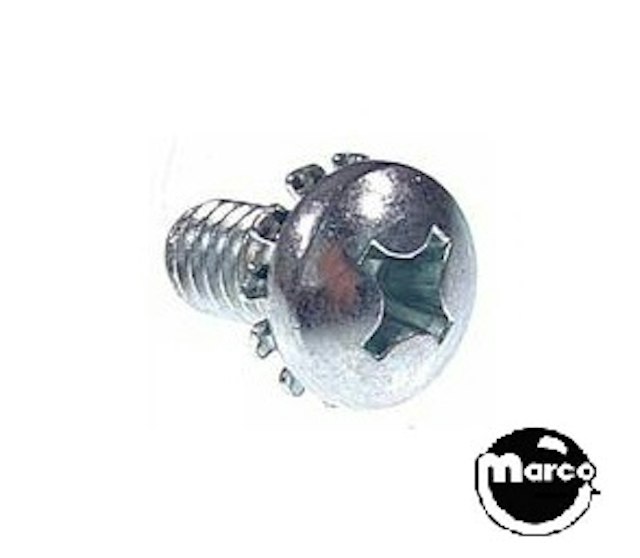

4020-01003-08 (3) ms 1/4-20x1/2 p-ph-s

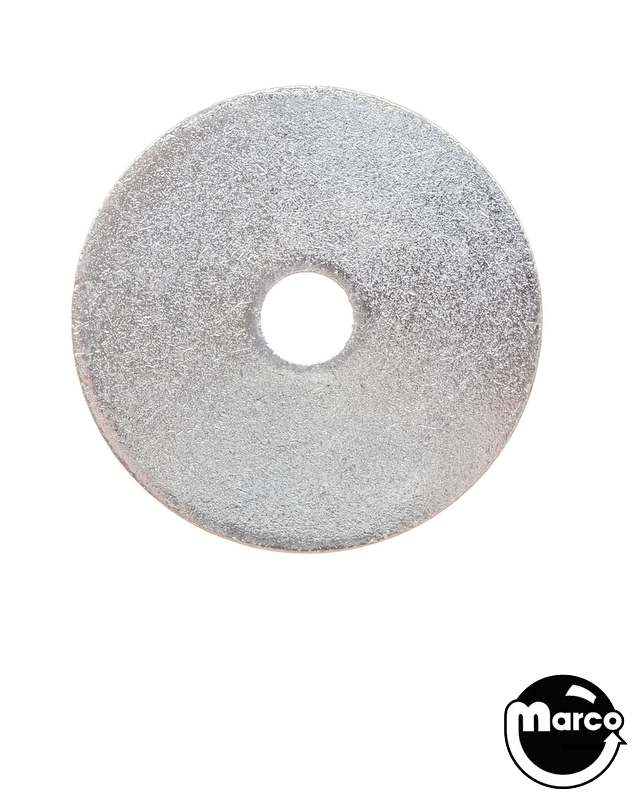

4700-00130-00 (1) fw .205x1.00x.055
5791-10774-00 (1) 4P2004 03 06-2044
5792-10773-00 (1) 2R11625 03-06-1023
5820-09078-00 (4) pm1560 02-06-2101
5821-09079-00 (2) pf1561 02-06-1101

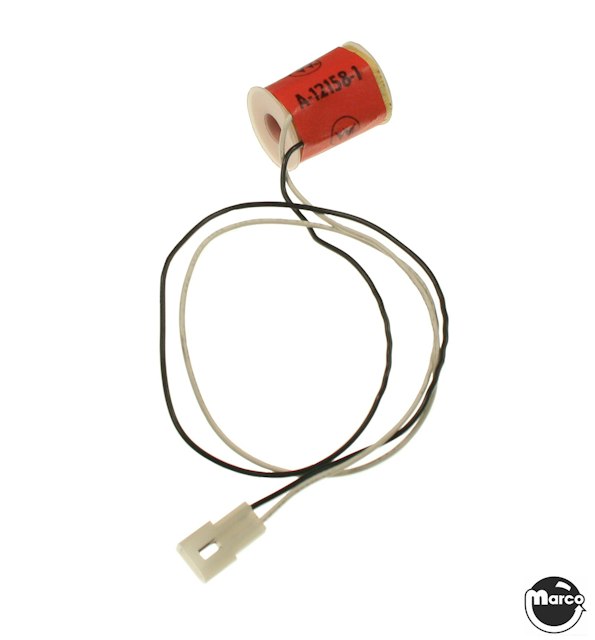

A-12158-1 (1) coil & connct assy
A-15285 (1) opto switch-2 pcb
A-15303 (1) hand bracket
A-15310 (1) interrupter
CW-30022-61 (5) wire 22awg blu/brn
CW-30022-74 (4) wire 22awg vio/yel
CW-30022-76 (4) wire 22awg vio/blu
CW-30022-84 (5) wire 22awg gry/yel

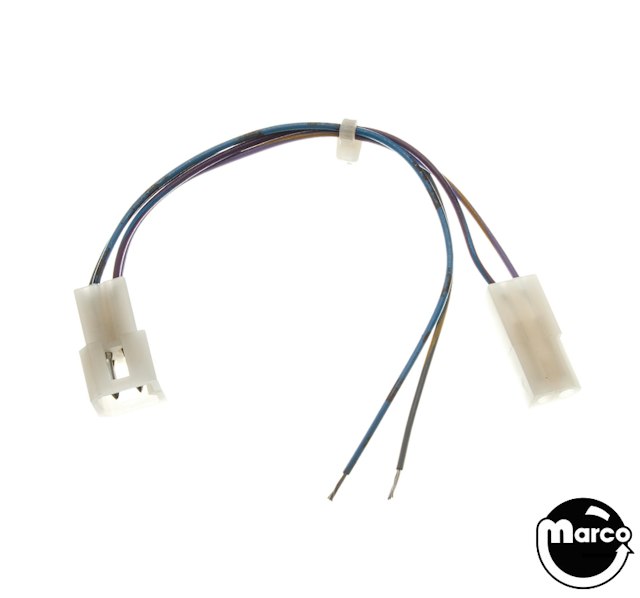

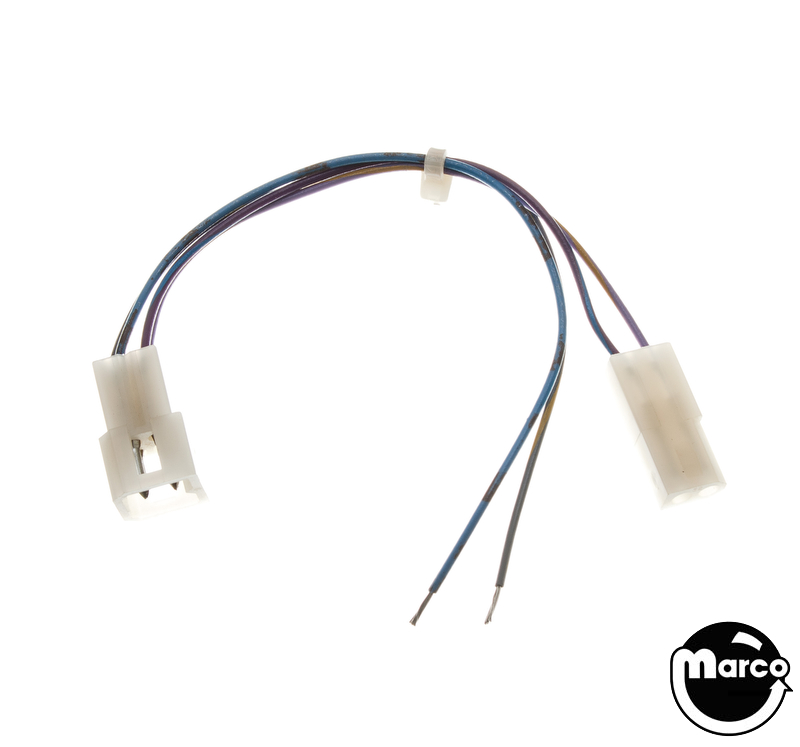

H-15228 (1) hand cable
H-15228-C (1) hand cable-cut
