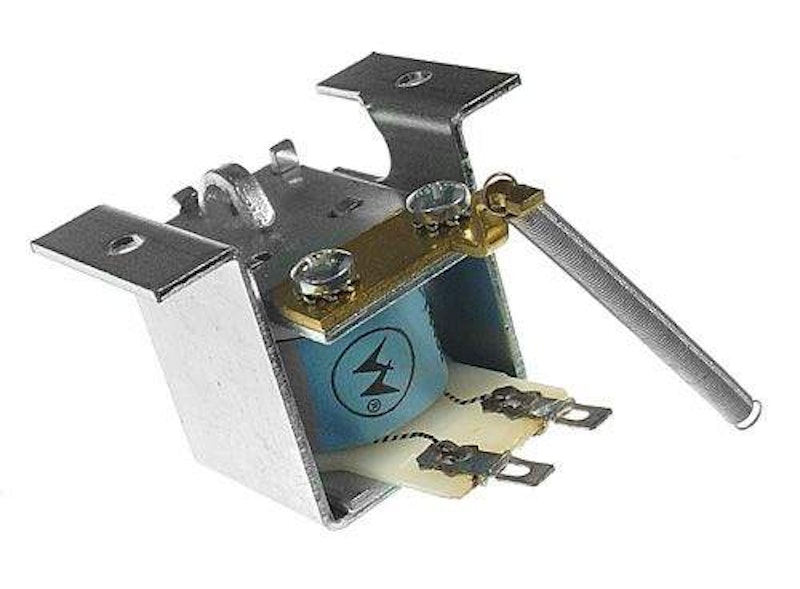

Ball gate actuator assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Ball gate actuator assembly
Ships un-assembled
Reference:

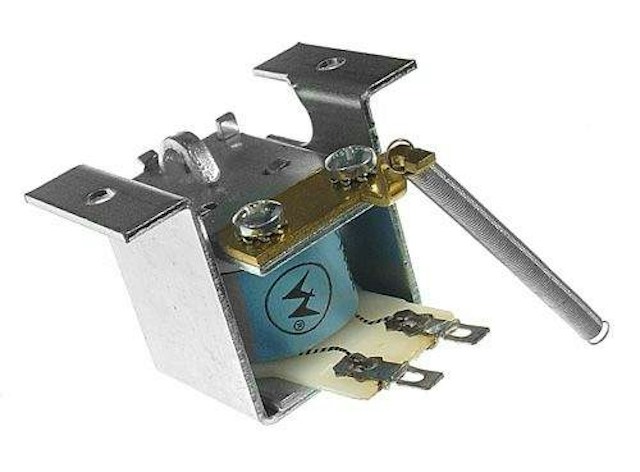

A-14422 ball gate assembly

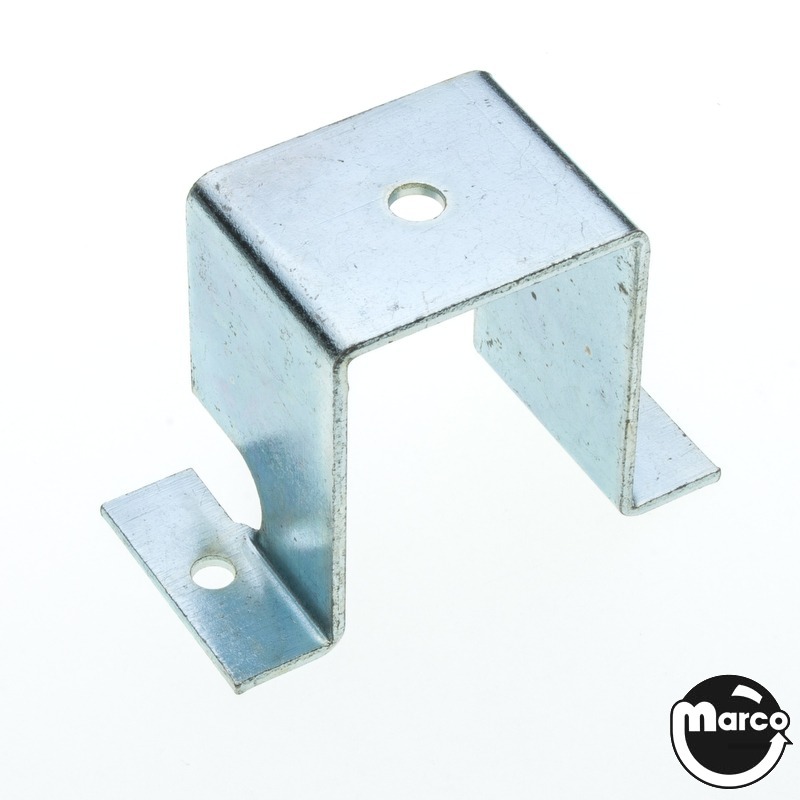

01-8111 bracket ball gate
10-120 spring-armature
10-194 spring-extension
4008-01021-07 machine screw 8-32 x 7/16 p-rh-brass
4700-00089-00 flat washer .172 x .437 x .062 brass
4701-00003-00 lw No.8 split
A-11146 b/g armature assembly
A-14406 coil assembly
A-6892 frame & eyelet assy
Select manufacturer to view game compatibility
Spring - extension
Replace your misplaced or broken lock washer.
Frame & eyelet assembly. Reference: A-6892
Washer .172 x .437 x .062 inch brass
Lower switch bracket
Spring - extension armature plate.
Coil - relay
Armature. Reference: A-15821
Armature extension bracket
Machine screw with 6-32 thread and 3/16" long with phillips pan head and attached lockwasher.
Machine Screw 8-32 x 3/8 inch p-ph-brass
Lower switch bracket
