FUNHOUSE (Williams) Rudy head assembly

Williams FUNHOUSE Rudy head assembly

Ships un-assembled.

Reference:

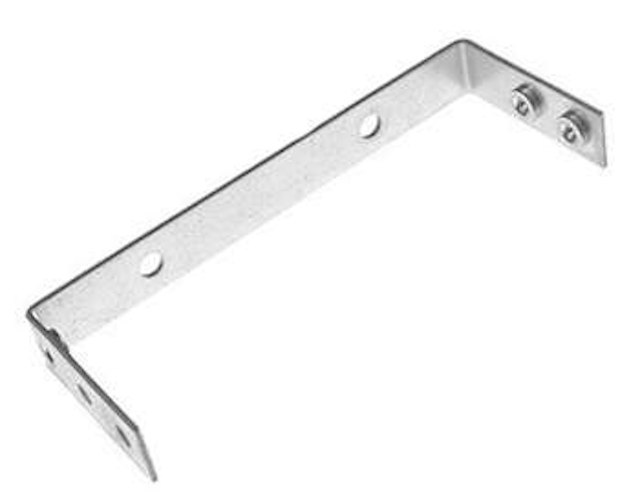

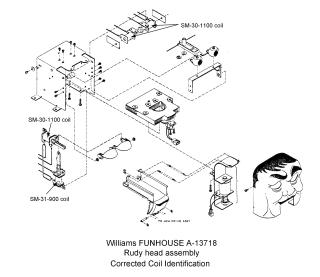

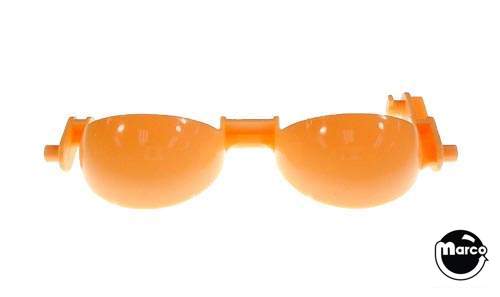

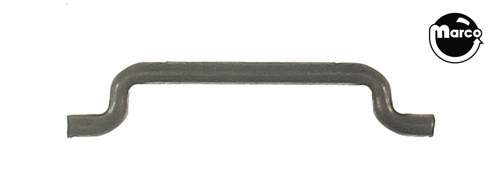

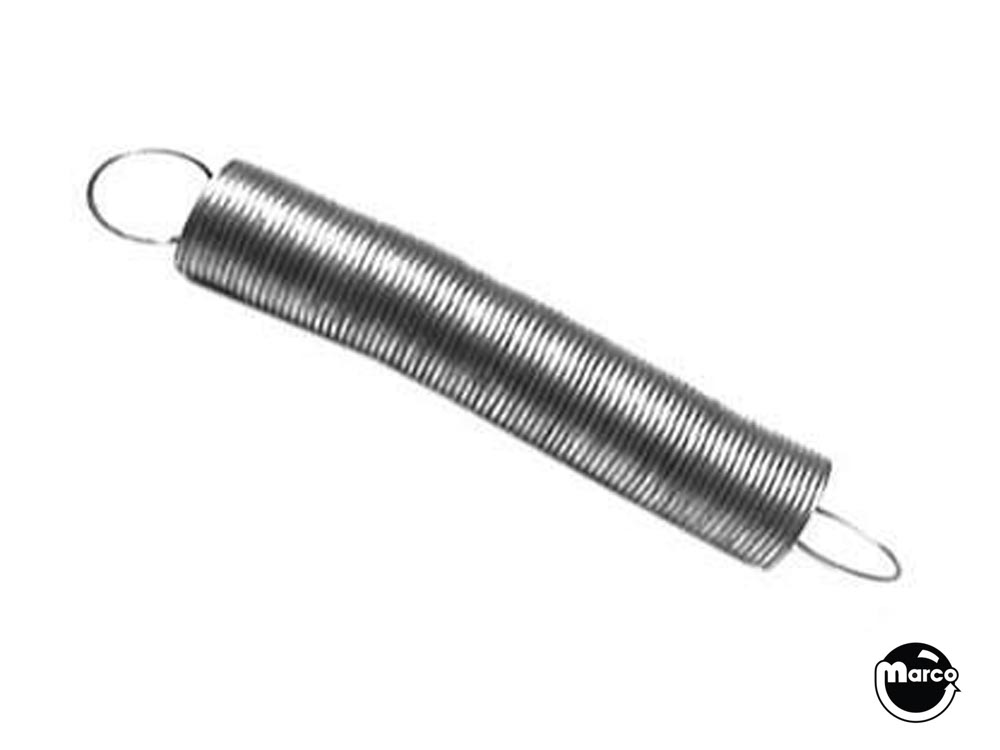

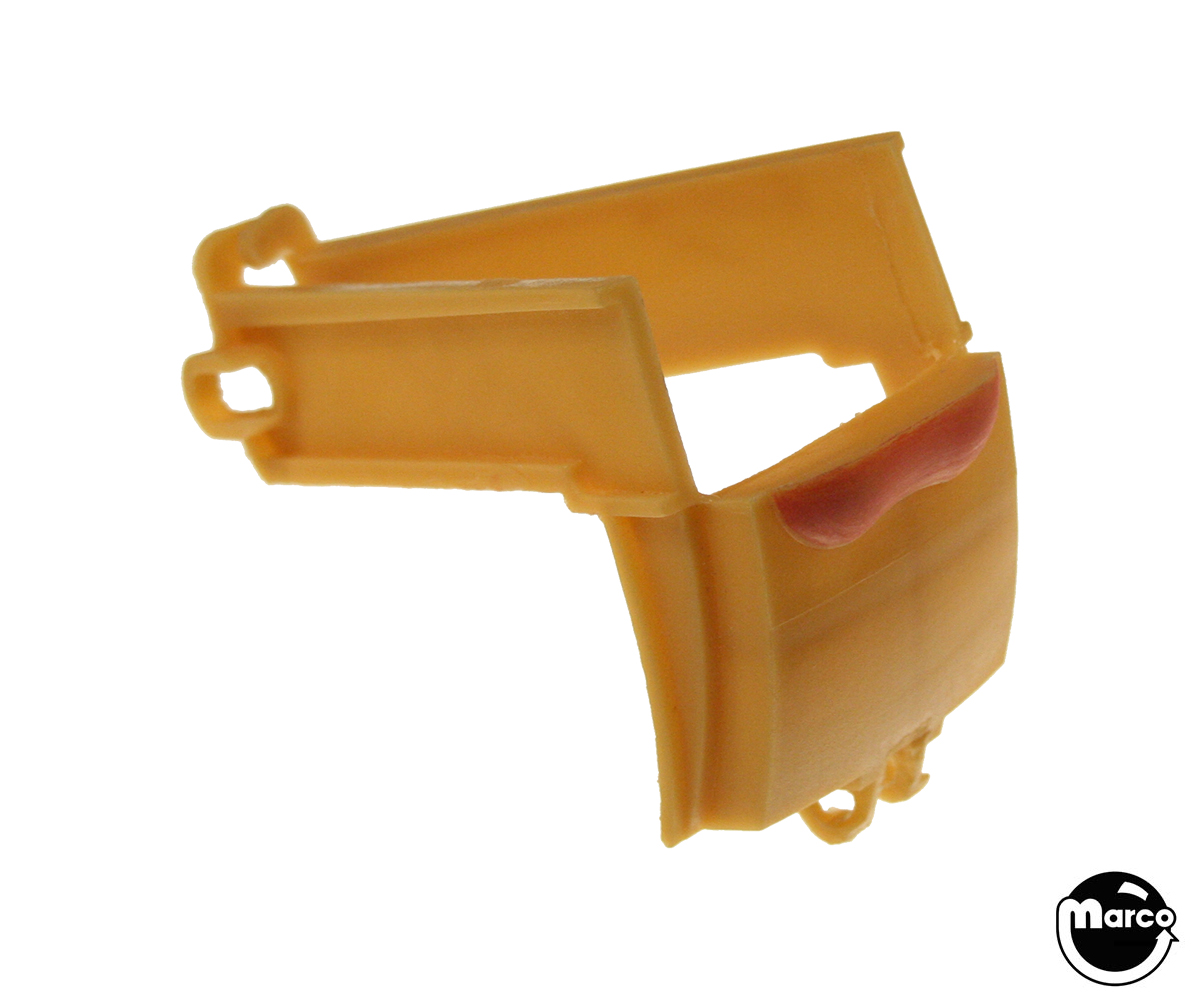

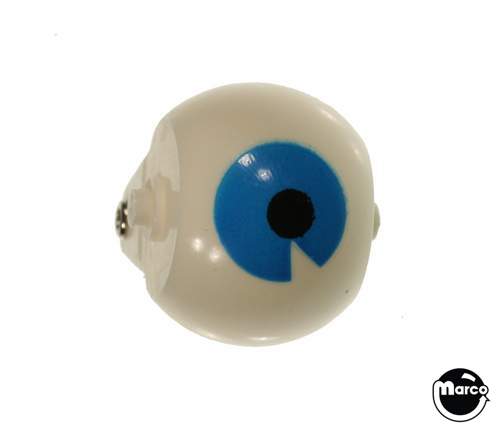

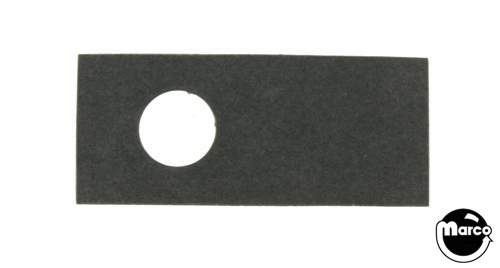

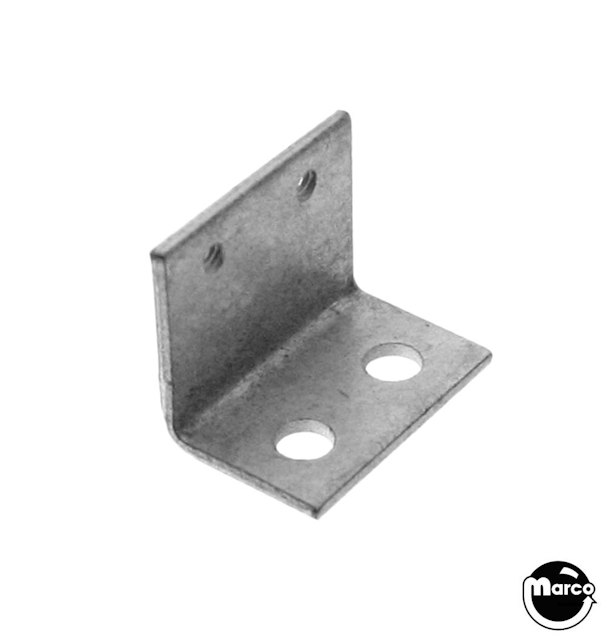

A-13718 head assembly01-9785 (1) bracket switch mtg01-9959 (2) insulator02-4455 (1) plunger-double03-7520-2 (8) tie wrap-nylon 3 7/803-8424 (1) rep by 31-161103-8428 (1) crank03-8468 (2) eye03-8469 (1) eyelid03-8486 (1) flange-centering10-423 (2) spring10-424 (2) spring-compression10-425 (1) spring-bar11-975 (1) head base wood12-6928 (2) link eye16-9095-2 (1) coil tape16-9095-3 (1) coil tape20-8712-25 (3) e ring 1/4 shaft20-8790-1 (2) nyliner20-9668 (2) eyelet 1/8 x 1/431-1611 (1) mandible-decorated4002-01105-06 (2) ms 2-56x3/8 p-ph-s4006-01003-04 (1) ms 6-32X1/4 p-ph-s4006-01003-05 (18) ms 6-32x5/16 p-phs4008-01003-12 (6) ms 8-32X3/4 p-ph-s4106-01114-08 (2) tcs No.6X1/2 pl-hwh t-174700-00005-00 (2) fw .141X.437X.0324700-00072-00 (3) fw .265X.500X.0325070-06258-00 (2) diode-1N4001 1.0a5647-12073-43 (1) switch-sub mini micro5791-09838-00 (1) P1625-5 03-06-20545791-10770-00 (1) 3p11625 03-06-2032 nmt sm5791-10772-00 (1) 2P11625 03-06-20235820-09078-00 (9) pm1560 02-06-2101A-13029 (2) bobbinA-13734 (1) head bracketA-13735 (5) coil bracketA-13941 (1) eject assemblyA-14026 (1) centering bracketA-14027 (1) eye bracketA-14028 (1) plunger assyA-14029 (1) plunger stop bracket assyA-14030 (1) main lid plungerCW-30022-18 (8) wire 22awg brn/gryCW-30022-5 (12) wire 22awg greenCW-30022-61 (13) wire 22awg blu/brnCW-30022-62 (9) wire 22awg blu/redCW-30022-63 (9) wire 22awg blu/orgCW-30022-64 (10) wire 22awg blu/yelCW-30022-75 (8) wire 22awg vio/grnCW-30022-9 (12) wire 22awg whiteH-14252-2 (1) cable-ramp switchH-14252-2-C (1) ramp switch cable-w/cut wireH-14252-3 (1) cable-Rudy s eyesH-14252-3-C (1) Rudy eyes-cableH-14252-4 (1) cable-Rudy s kickerH-14252-4-C (1) Rudy kicker-cable-w/cut wireMW-130-30 (1) magnet wire-130deg c sns 30gaMW-130-31 (1) magnet wire-130deg c sns 31gaSM-30-1100-DC (3) coilSM-31-900-DC (1) coil
