TORPEDO ALLEY (Data East) Backbox tech chart
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

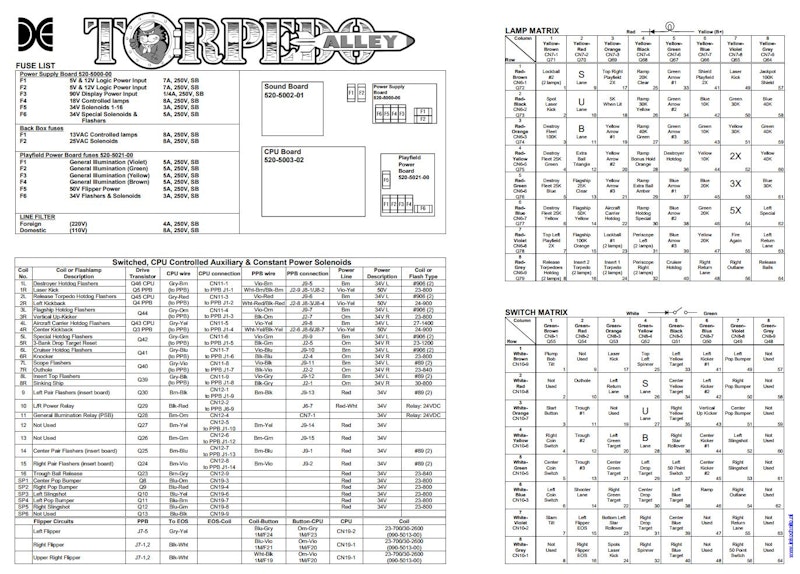

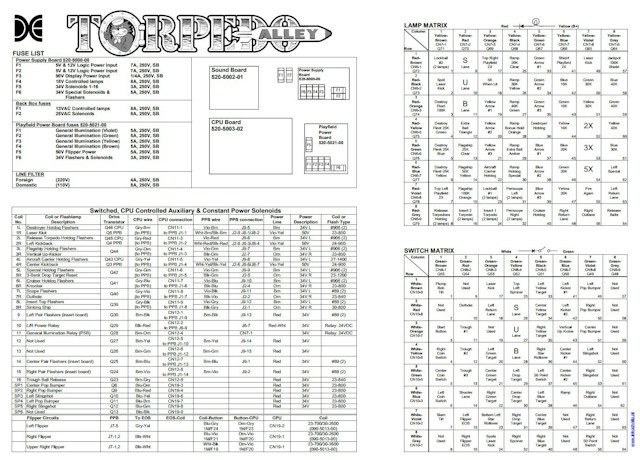

Data East TORPEDO ALLEY pinball machine backbox technical information chart.
Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.
11 x 17 inch peel & stick vinyl
Reference:
780-5003-10
