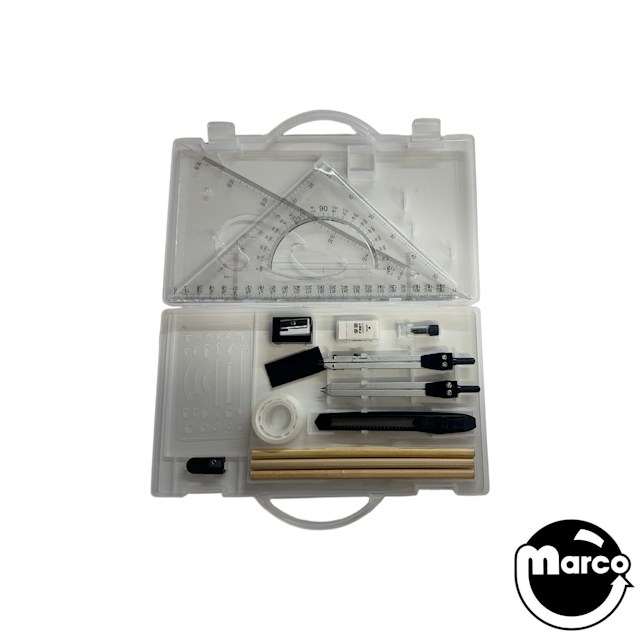

15 piece Professional Homebrew Geometry Set
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Designed for Homebrew Pinball Creators
This precision tool set provides all the essentials for planning, sketching, and fine-tuning your custom pinball layouts. Whether you’re mapping out playfield geometry, aligning shot angles, or detailing ramp and flipper placements, these tools give you the accuracy and control you need to bring your ideas to life.
Each instrument is built for durability and precision, from crisp line work to perfect curve alignment. The set comes in a sturdy plastic case that keeps everything organized and protected — ideal for use in the workshop, garage, or home design space.
Compact and easy to carry, it’s perfect for both quick adjustments and deep design sessions. Tailored for the unique needs of pinball builders, modders, and hobby engineers, this set supports every stage of your creative process — from concept sketches to playfield blueprints.
Whether you’re prototyping your first homebrew machine or refining your latest project, this geometry set is a practical, reliable companion for every pinball designer’s toolkit.

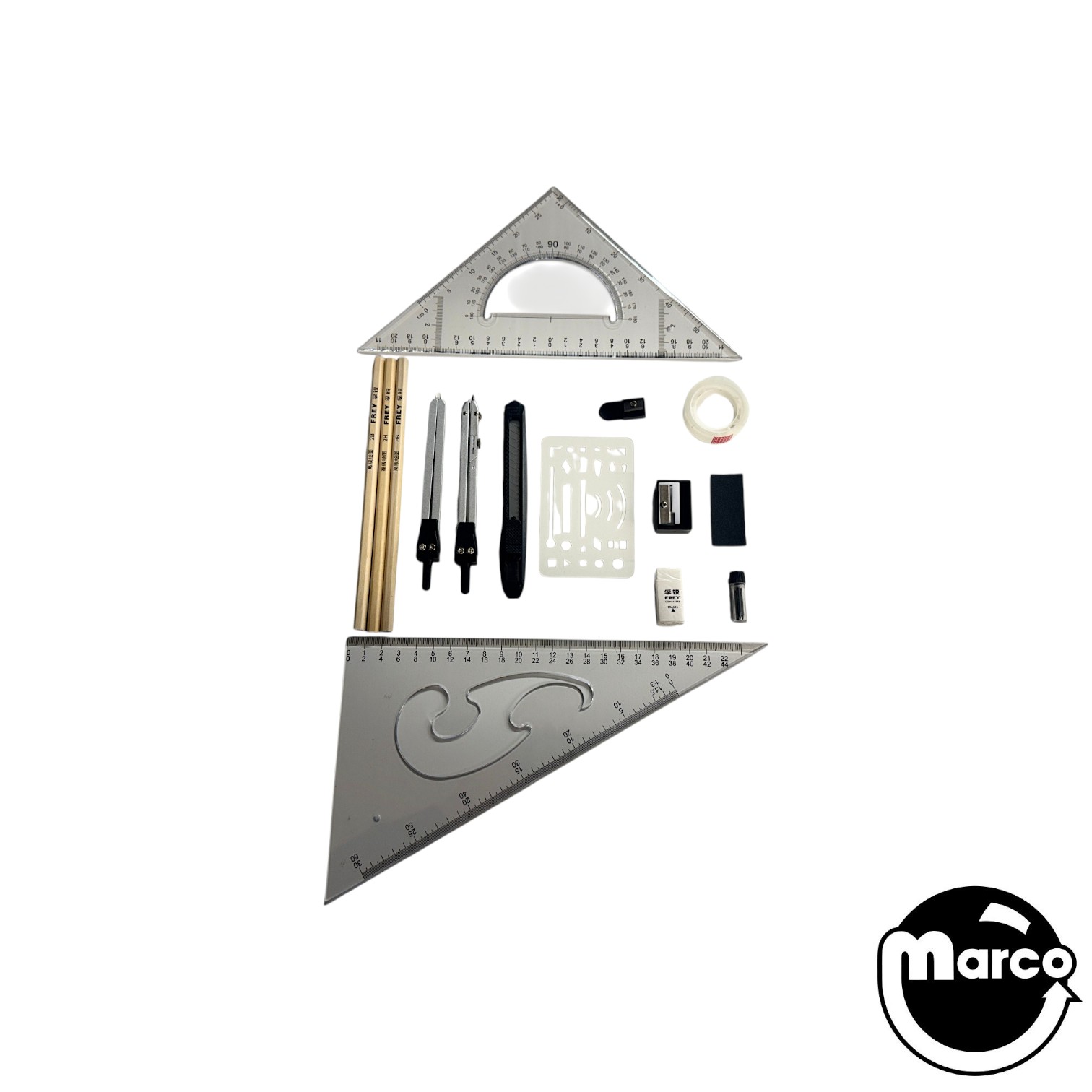

This package includes:
Triangles with built in Ruler and Compass - Ideal for creating accurate flipper angles, ramps, and playfield geometry.
Protractor – Perfect for checking shot trajectories and fine-tuning playfield alignment.
Compass Pencils – Designed to fit your compasses for consistent, clean marking.
Pencil Sharpener – Keeps your pencils ready for clean, accurate lines.
Eraser – Removes layout lines and design tweaks without smudging.
Pencil Lead Refills – Ensures uninterrupted work during long design sessions.
And More!
Reference:
77-PGS
