Shaker motor kit Stern SAM template

Installation mounting template for factory authorized Stern shaker motor kit for late model Stern SAM system pinball machines.

Use genuine Stern authorized kits to avoid warranty problems. Refer to Stern service bulletin No.184 regarding off-brand shaker motor problems.

Designed to work with the Stern SAM pinball computer systems.

All games made after 2007 accommodate a shaker motor option. Before this the shakers were included as original equipment.

Kit includes:

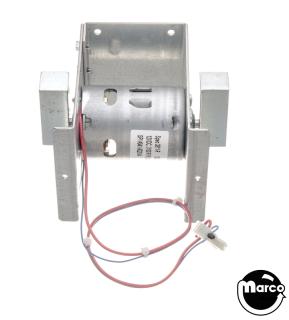

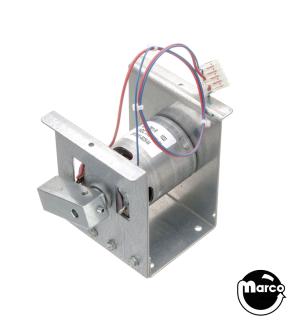

• Shaker motor with mounting bracket and wiring harness

• PCB board

• Hard plastic cover

• Mounting hardware

• Cable ties

• 756-5027-02 instruction sheet

• 756-5027-00T installation template

Reference:

• 502-5027-00 complete shaker kit

• 041-5029-04 Motor

• 520-5065-00 Control board

INSTALLATION INSTRUCTIONS
