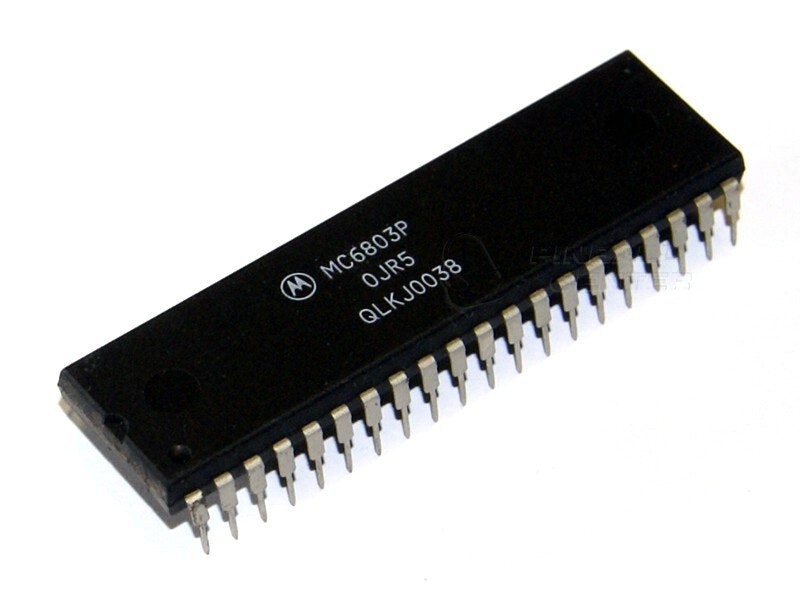

IC - 40 pin DIP microprocessor MC6803P 1.5 MHz
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
MC6803 integrated circuit 40 pin microprocessor.
Motorola MC6803P-1
1.25 MHZ microcontroller
40-PIN plastic DIP package
MOS (N-channel, silicon-gate, depletion load)
Data width: 8 bit
Physical memory: 64 KB
On-chip peripherals: Serial communications interface, parallel I/O, 16-bit three-function programmable timer, internal clock generator
On-chip RAM: 128 (64 standby)
V core (V): 5 ± 5%
Operating Temp Range(°C): Extended range 0 - +85°C
Min/Max power dissipation(W): 0.03 (Standby) / 1.2
E-620-265
6803
MC6803P-1
MC6803
Select manufacturer to view game compatibility
DIP (dual in-line pin) IC socket for 40 pin IC's.

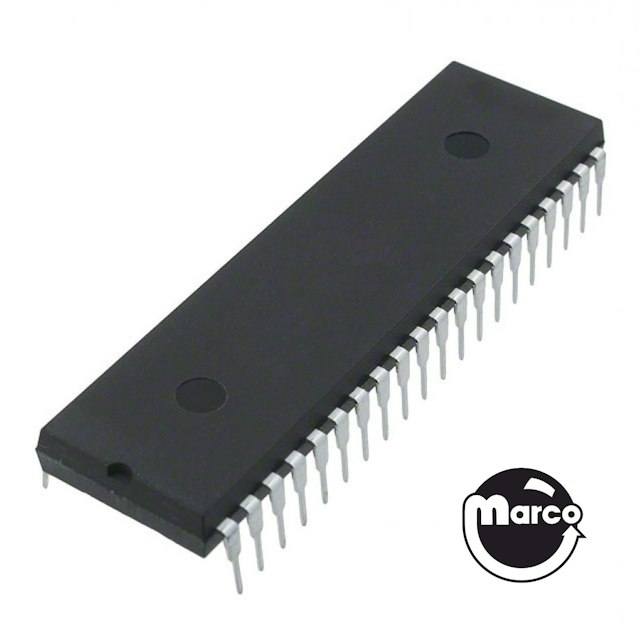

Integrated circuit 40 pin DIP microprocessor.
