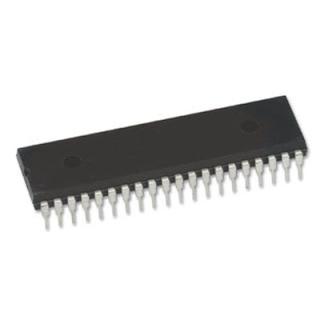

Rockwell R6532 Ram Input Output Timer 40 pin integrated circuit used in many Gottlieb pinball CPU boards.
- 128 x 8 static RAM
- Two 8 bit bidirectional data ports
- Programmable internal timer with interrupt
- TTL & CMOS compatible peripheral lines
- One port has direct transistor drive capability
- Programmable edge-sensitive interrupt input
- 8 bit bi-directional data bus
- 6500/6800 bus compatible
- Single +5v power supply
Reference:
- 6532
- R6532
- R6532P
- XO-361
- XO361
0.0062
lb
