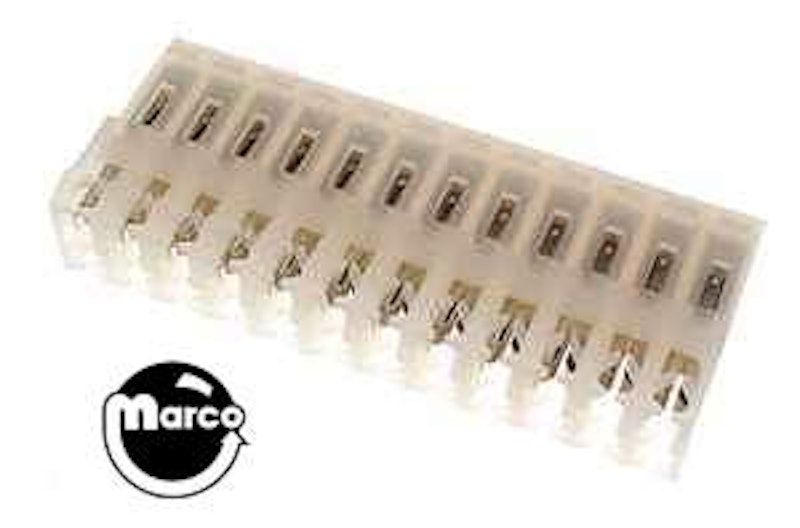

.156" spacing 12 position Insulation Displacement style connector
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
0.156" on-center spacing 12 position 22awg IDC connector.
May substitute crimp style terminals and 12 position housing for better electrical connection and vibration resistance. See part numbers below
CT156T-1 (pack of 30 pins)
CF15612 (12 position molex connector)
CE156F22-12
Reference:
5792-10847-12
