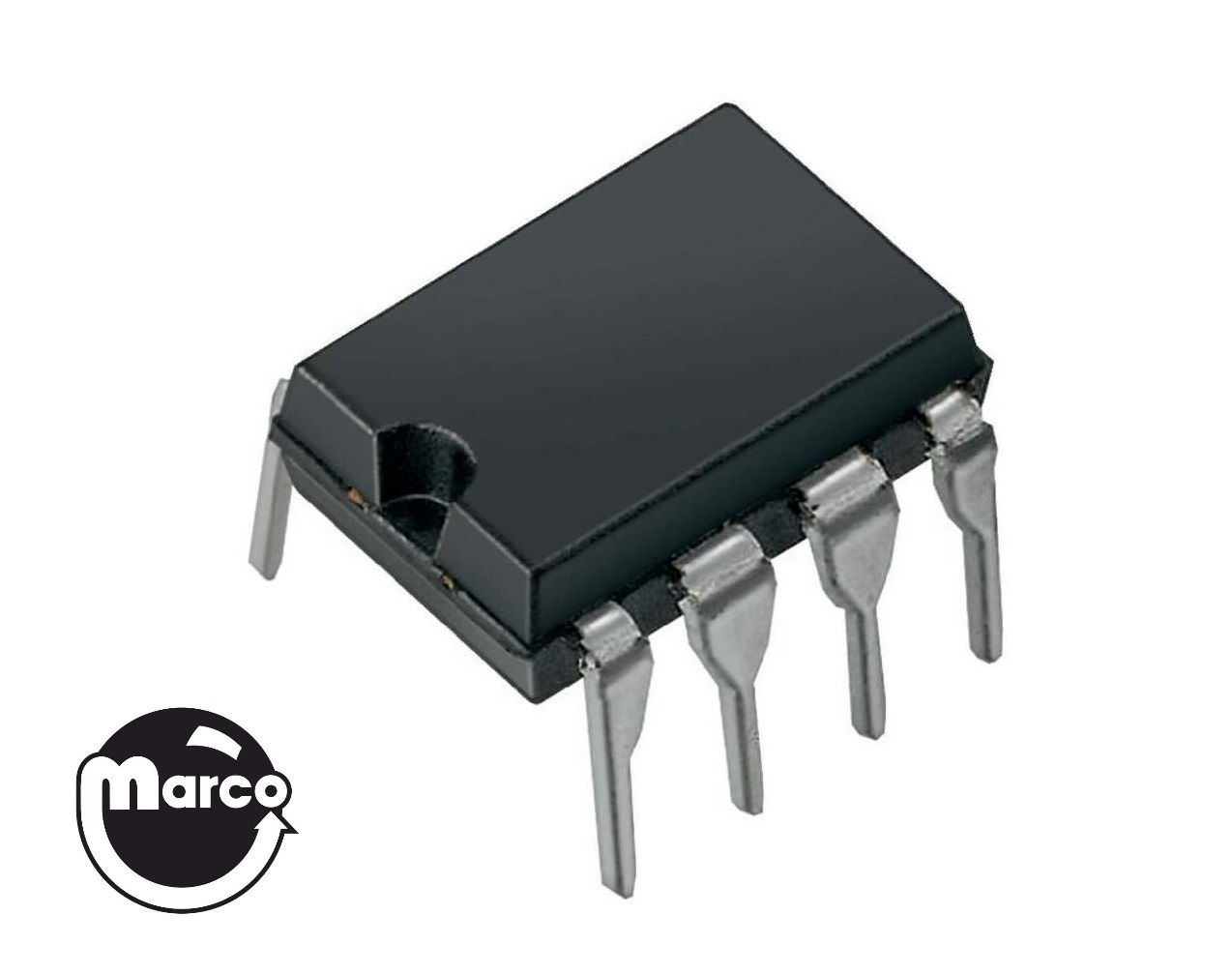

IC - 8 pin DIP MC3340P attenuator

8 pin DIP IC MC3340P electronic attenuator

MC3340 is a simple but effective electronic attenuator. Offers up to 80dB of attenuation control for frequencies to 1.0MHz. THD (distortion) is less than 1% – up to 15dB attenuation and less than 3% – up to 40db.

Designed for use in:

• DC Operated Volume Control
• Compression and Expansion Amplifier Applications
• Controlled by DC Voltage or external variable resistor

Reference:

• MC3340P
• ECG829
