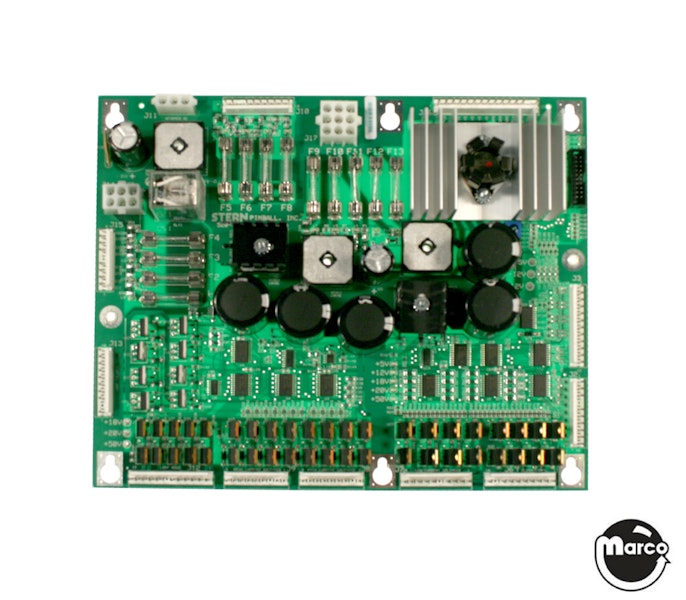

I/O Power Driver Board for new Stern S.A.M. pinball machine systems.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Mini I/O Power Driver Board for 2005 Stern S.A.M. pinball machine systems.
Reference:
520-5249-00 power driver SAM system
520-5246-00 CPU/Sound board SAM system
Select manufacturer to view game compatibility
14 pin ribbon cable 32 inch long
New Stern S.A.M. system CPU / Sound board for select games built from 2006-2011
20 pin 3.5 inch ribbon cable connects I/O Power Driver board to CPU/Sound board
Stern S.A.M. system CPU / Sound board
IC - SMD 44 pin IDT71V016SA15Y SRAM 1mbit
Diode - SMD DL4004 400V 1.0A MELF case
XC95144XL programmed for U42 on S.A.M system CPU/sound board.
IC - SMD 44 pin IDT71V416S15Y RAM S.A.M. CPU board
IC - SMD 32 pin CY62128 SRAM
IC - SMD 100 pin XC95144XL-10TQG100C
