CPU/Sound Board component update kit
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Sega/Stern CPU/Sound board component update or repair kit.
Compatible with 520-5136-XX CPU/Sound boards.
Many Sega Pinball machines had their manufacturing costs reduced by omitting one of the sound channels from the CPU / Sound board. The sound portion of the circuit board was left with one amplifier "un-stuffed" with electronic components. The design philosophy was that stereo sound wasn't necessary for operation in busy street locations.
Now that many of these machines are in collector's homes, stereo sound can again be appreciated by installing this kit.
GAME APPLICATIONS
1995-1996 Sega Pinball games up to and including GOLDENEYE have two backbox speakers and a lower cabinet speaker, and run in true stereo. All 3 audio amps are populated on the CPU board and this update kit is not required. These games are:
1995-01 Mary Shelley's FRANKENSTEIN
1995-02 BAYWATCH
1995-07 BATMAN FOREVER
1995-10 APOLLO 13
1996-03 GOLDENEYE
Late Sega and Stern Pinball games from LOST IN SPACE onwards have two backbox speakers but they are effectively mono as they are both connected to the left channel audio amp on the CPU board. The right channel amplifier circuitry is un-populated. These game are:
1998-05 LOST IN SPACE
1998-06 GOLDEN CUE
1998-08 GODZILLA
1999-02 SOUTH PARK
1999-09 Sega HARLEY DAVIDSON®

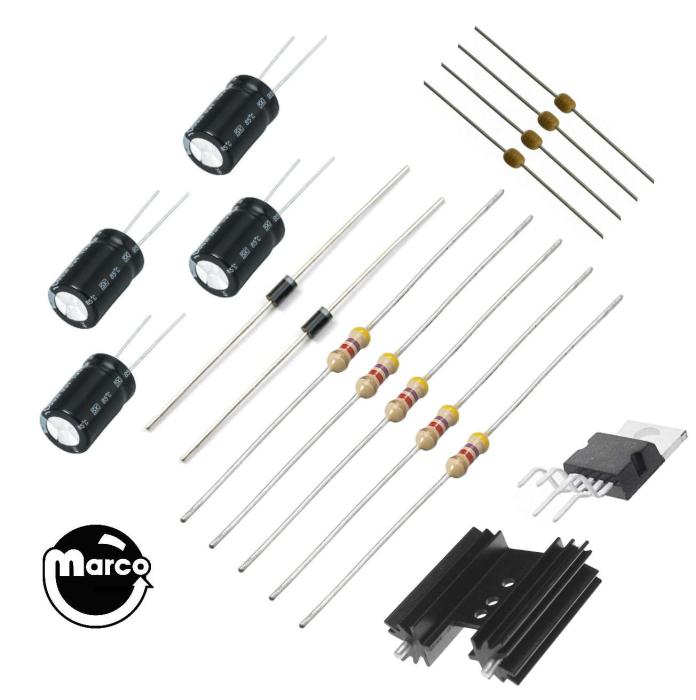

Kit includes:
R19 - 100KΩ ¼W resistor
R100/102 - 22KΩ ¼W resistor
R101 - 470Ω ¼W resistor
R103 - 1Ω ¼W resistor
C100 - 35V 10µF radial electrolytic capacitor
C101 - 25V 22µF radial electrolytic capacitor
C102/104 - 25V 100µF radial electrolytic capacitors
C103/105/106/C122 - 0.1µF @ 50 v axial ceramic capacitors
D100/101 - 1N4004 diodes
TDA2030A - Amplifier IC
535-5000-10 - Heatsink U101,2,3
Reference:
520-5136-16
Select manufacturer to view game compatibility
Capacitor 100uf @ 25 volts with radial leads.

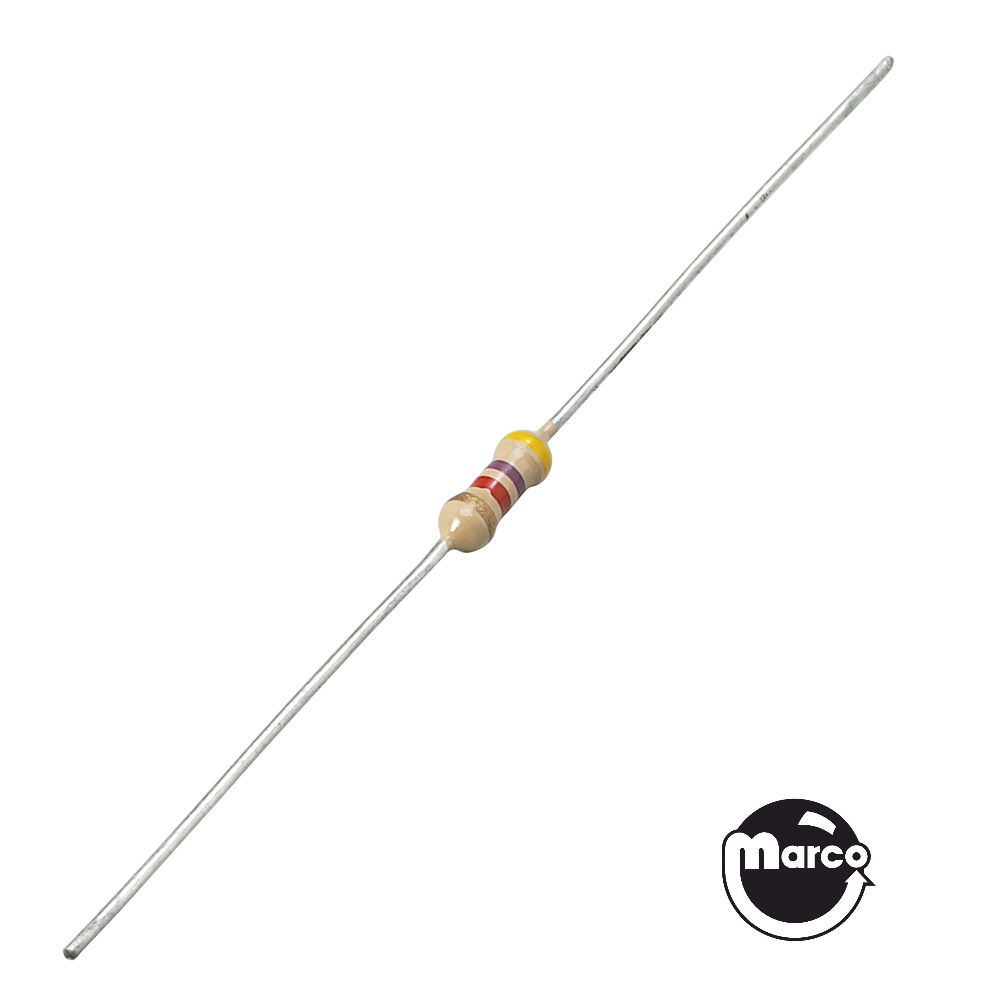

Resistor 1/4 watt 100,000 ohms. Reference: Bally E-102-226

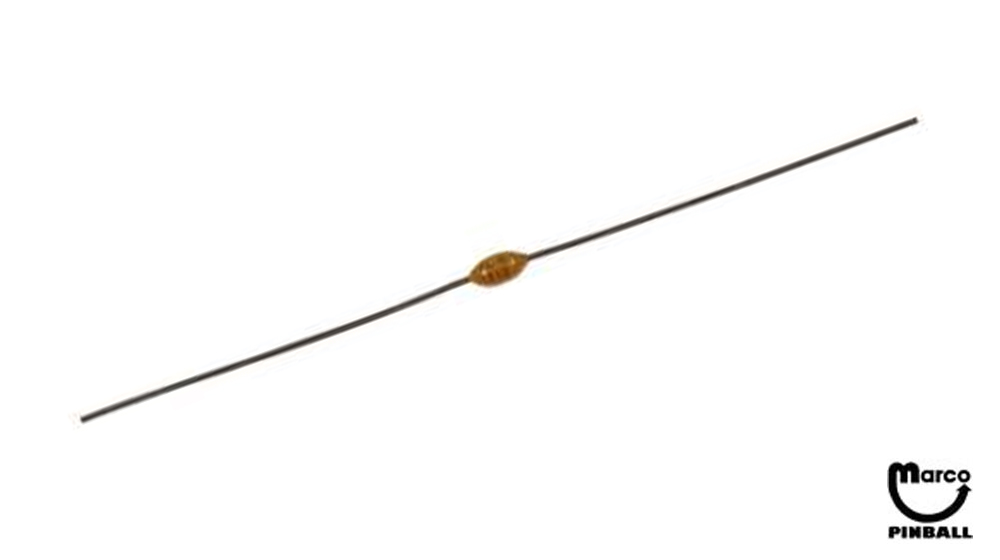

.1 uf @ 50 volts bead style capacitor Reference: 125-5031-00
Resistor - 22,000 ohms 1/4 watt
Heatsink U100 U101 U102
470 ohm 1/4 watt resistor

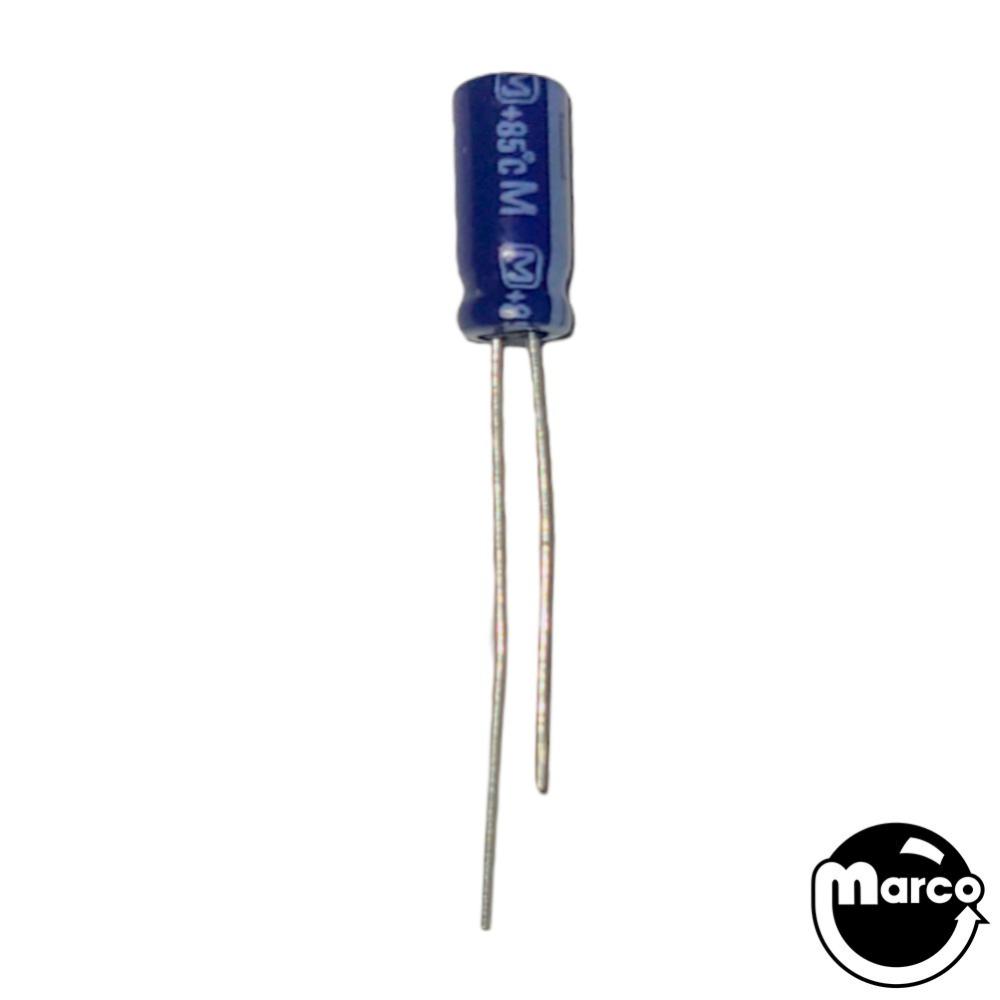

Capacitor 10 uF 35 v radial

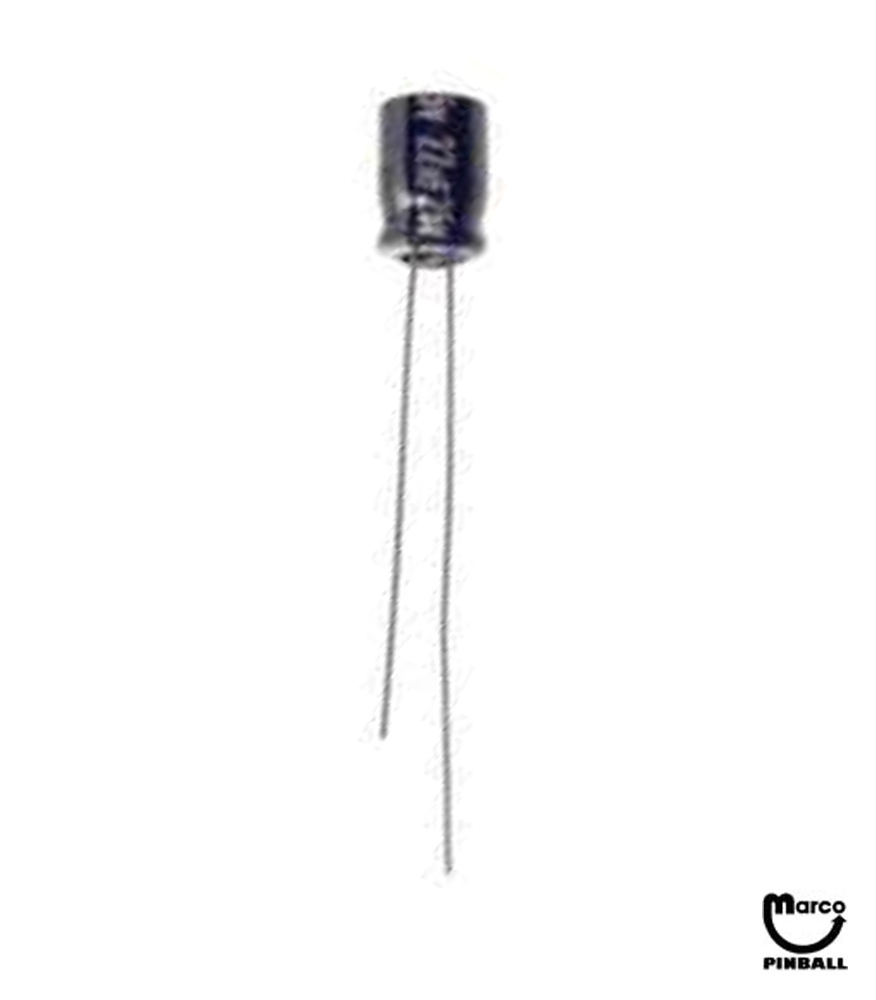

5/16 tall x 3/16 inch diameter 22 uf @ 25 volts radial lead capacitor.
Diode - 400 volts 1 amp XO-254
Integrated circuit audio amp 18 watt. Reference: Williams 5370-1341...

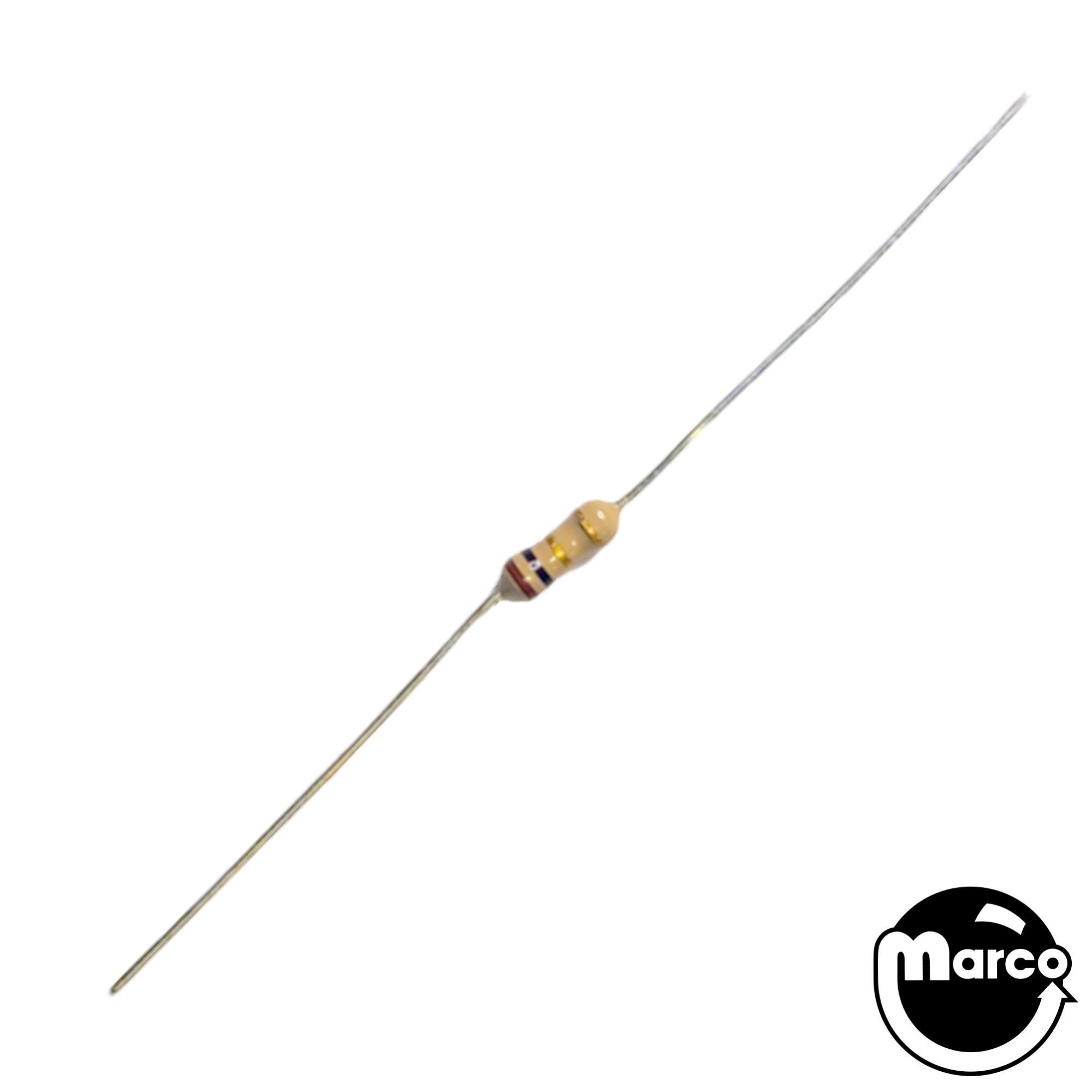

Resistor - 1 ohm 1/4 watt
