APOLLO 13 (Sega) Moon Unit Motor

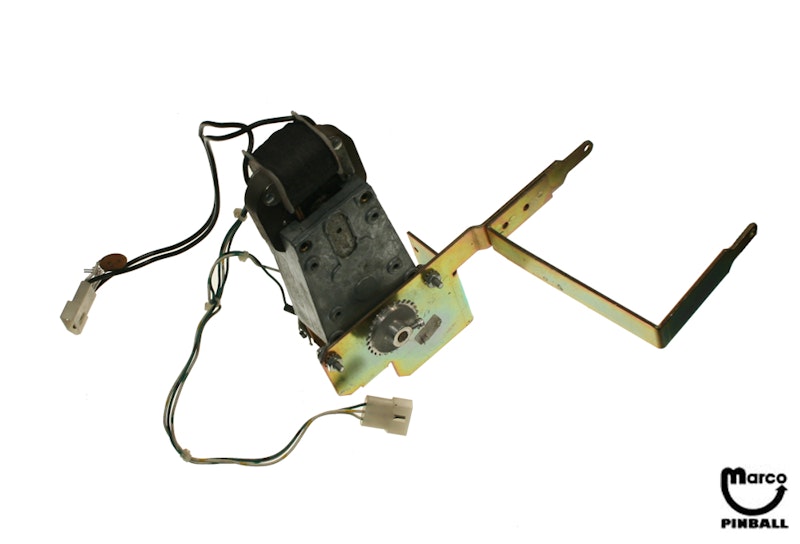

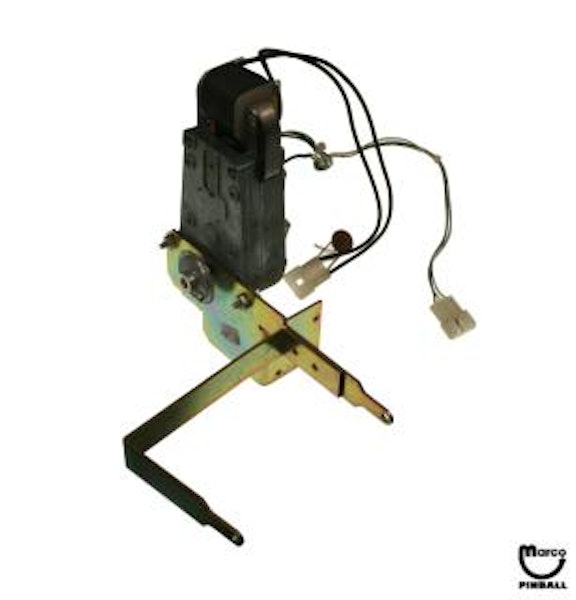

Sega APOLLO 13 pinball machine Moon Unit rotational orbit motor,cables with connectors, bracket & cam assembly.

Ships un-assembled

Reference:

• 500-6021-00-44 Moon Unit assembly
• 515-6408-00 Moon sub assembly
• 515-6407-00 Motor, bracket & cam sub assembly
• 515-6487-00 Motor and gearbox assembly

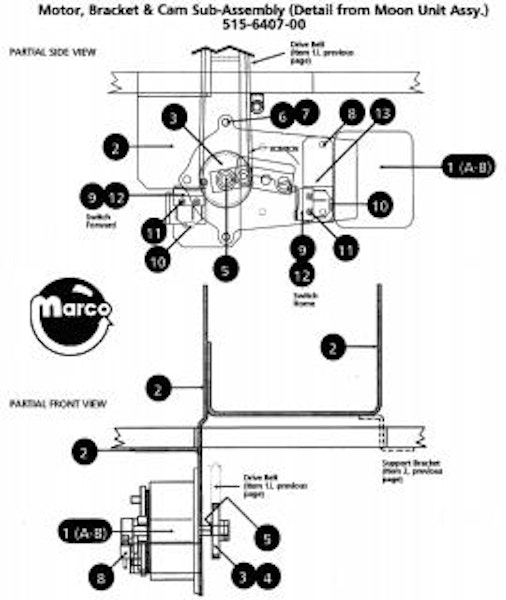

  Drawing items:

  • 1 Moon sub assembly 515-6408-00


    1A Moon half left 545-5642-00
    1B Moon half right 545-5641-00
    1C Magnet coil 090-5042-01
    1D Magnet core 530-5372-00
    1E Shaft and gate 515-6406-00
    1F Retaining ring 270-5001-00
    1G 6-32 stop nut 240-5005-00
    1H Fastening plate 515-6404-00
    1J Drive belt 545-5643-00
    1K #6 washer 245-5001-00

    • 2 Support bracket 535-7538-00
    • 3 Roller assembly 515-6451-00
    • 4 Motor bracket and cam 515-6407-00
