Moving Target Assembly (Jersey Jack Pinball, JJP)
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

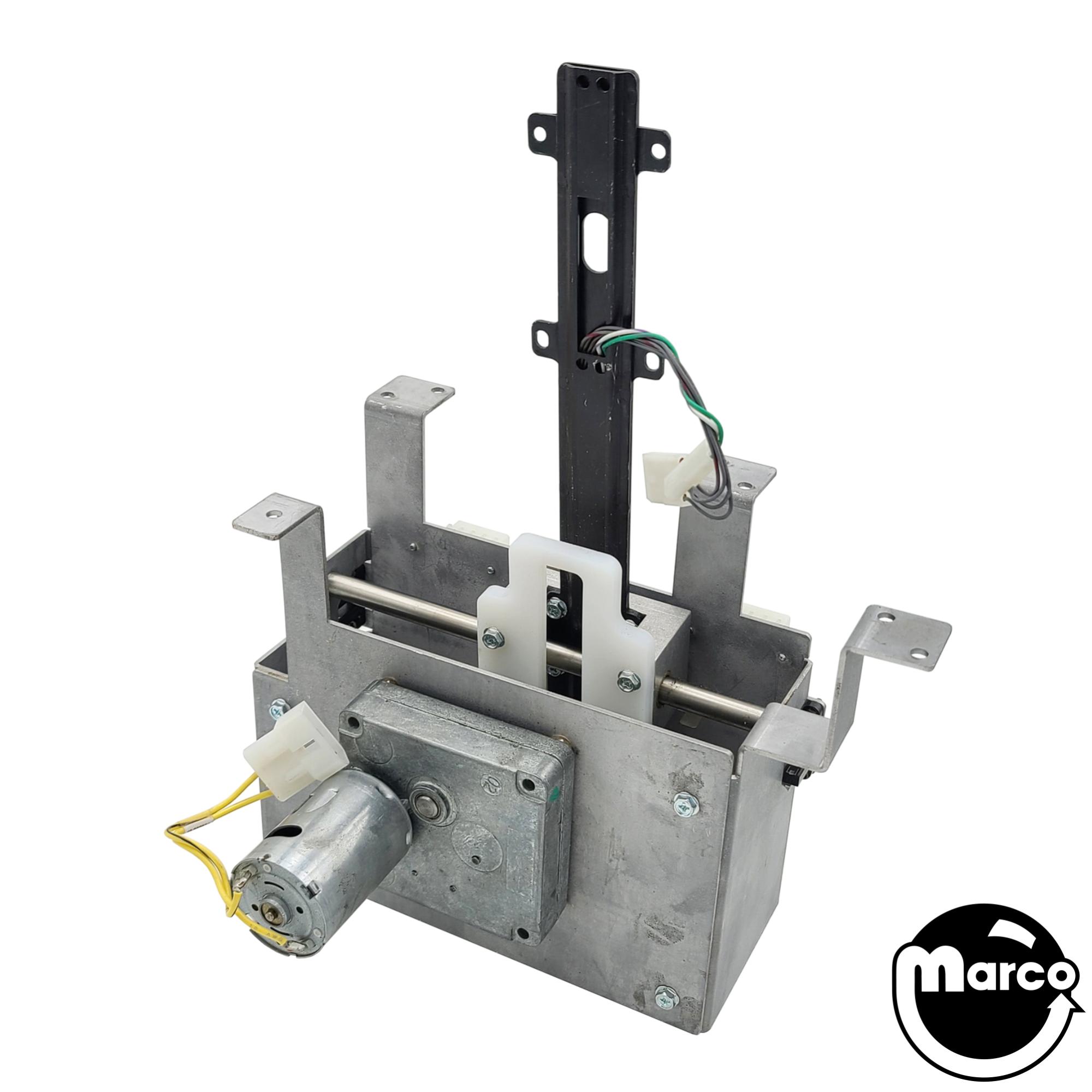

New complete Moving Target Assembly used in Jersey Jack Pinball (JJP) Dialed In.
Contains:
Item: 1 - Part Number: 10-000211-02 - Description: Moving Target Stand-Up Mtg Brkt - Qty: 1
Item: 2 - Part Number: 10-000211-01 - Description: Moving Target Rear Brkt - Qty: 1
Item: 3 - Part Number: 10-000211-00 - Description: Moving Target Front Brkt - Qty: 1
Item: 4 - Part Number: 18-005000-00 - Description: U-Shaped Opto, OPB816Z - Qty: 2
Item: 5 - Part Number: 23-005009-00 - Description: Gear Motor Assy, 12VDC, 8rpm - Qty: 1
Item: 6 - Part Number: 51-000081-10 - Description: Moving Target Cam Assy - Qty: 1
a) Part Number: 11-000043-01 - Description: Cam Hub Weldment - Qty: 1
b) Part Number: 85-004010-06 - Description: 10-32 x 3/8" Set Screw, Cup Point - Qty: 2
c) Part Number: 91-000010-00 - Description: 10-24 Nylon Stop Nut - Qty: 1
d) Part Number: 94-003020-05 - Description: Round Spacer, 0.25" ID, 0.375" OD, 0.3" L, Alum - Qty: 1
e) Part Number: 96-001002-00 - Description: Ball Bearing, Double Sealed, 1/4" Shaft, 5/8" OD - Qty: 1
f) Part Number: 85-000010-08 - Description: 10-24 x 1/4" x 1/2" SH Shoulder Bolt - Qty: 1
Item: 7 - Part Number: 10-000211-03 - Description: Moving Target Bearing Block Assy - Qty: 1
Item: 8 - Part Number: 10-000211-04 - Description: Moving Target Opto Interrupter Blade - Qty: 1
Item: 9 - Part Number: 30-000086-00 - Description: Moving Target Cam Follower - Qty: 1
Item: 10 - Part Number: 91-000010-00 - Description: 10-32 Nylon Stop Nut - Qty: 4
Item: 11 - Part Number: 80-002008-08 - Description: 8-32 x 1/2" HWH Phillips MS, Serrated - Qty: 12
Item: 12 - Part Number: 80-002010-06 - Description: 10-32 x 3/8" HWH Phillips MS, Serrated - Qty: 2
Item: 13 - Part Number: 80-002006-04 - Description: 6-32 x 1/4" HWH Phillips MS, Serrated - Qty: 2
Item: 14 - Part Number: 80-000004-10 - Description: 4-40 x 5/8" PPH MS - Qty: 8
Item: 15 - Part Number: 94-003005-00 - Description: No.4 x 3/8" Nylon PCB Stand-Off - Qty: 8
Item: 16 - Part Number: 15-000007-00 - Description: Opto 1/0 Bd - Qty: 2
Item: 17 - Part Number: 11-000043-00 - Description: Moving Target Travel Shaft - Qty: 1
Item: 18 - Part Number: 80-002104-06 - Description: 4-40 x 3/8" HWH MS, Black - Qty: 4
Reference:
51-000081-00
Select manufacturer to view game compatibility
DIALED IN (JJP) MAINTENANCE KIT
Pinball Event Tune-Up Kit
Three ball wire ramp for Jersey Jack DIALED IN pinball machine. Includes full wiring harness, ball lock mechanism, and hardware.
Left wire exit ramp for Jersey Jack DIALED IN pinball machine.

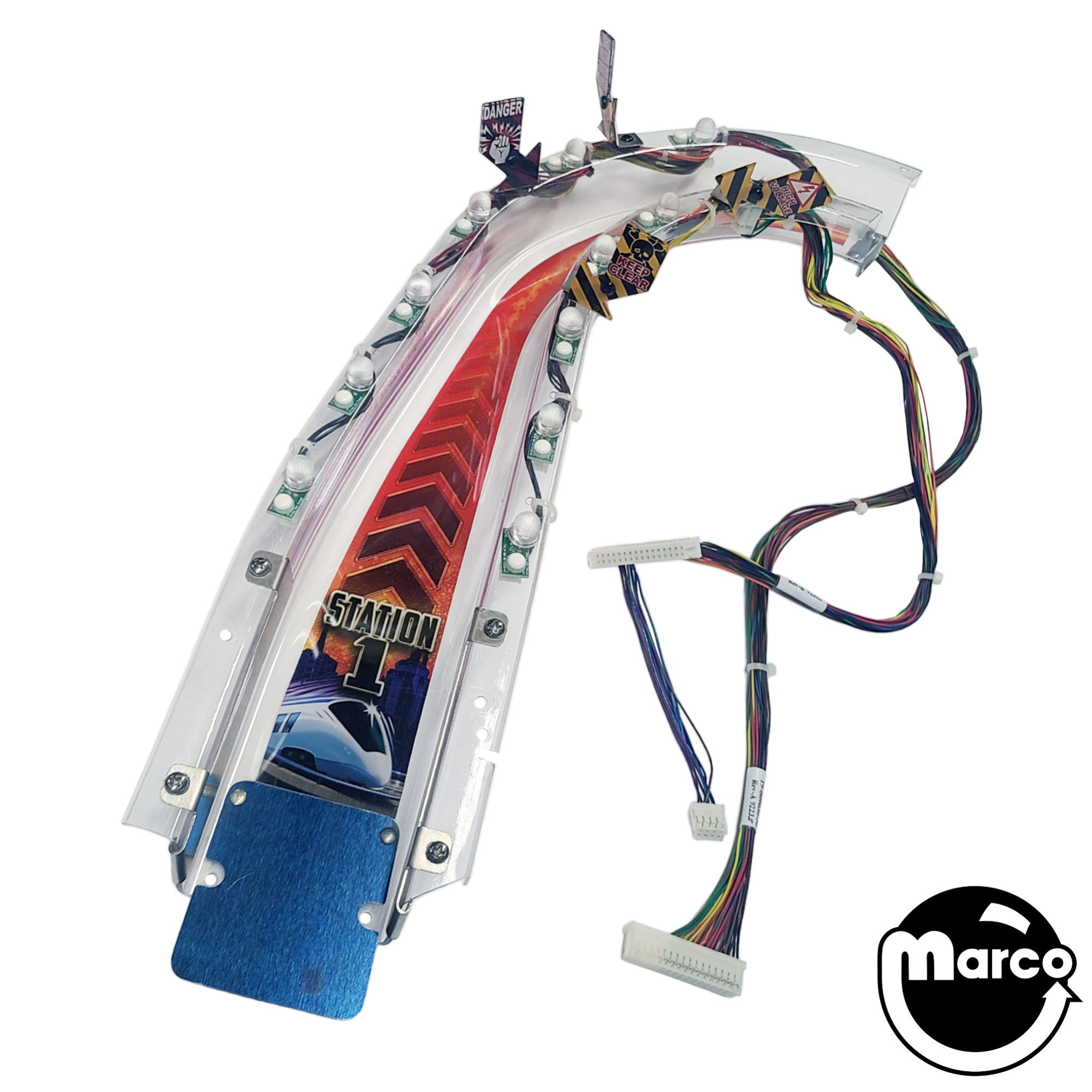

Left ramp assembly for Jersey Jack DIALED IN pinball machine.
