Target switch modular PCB

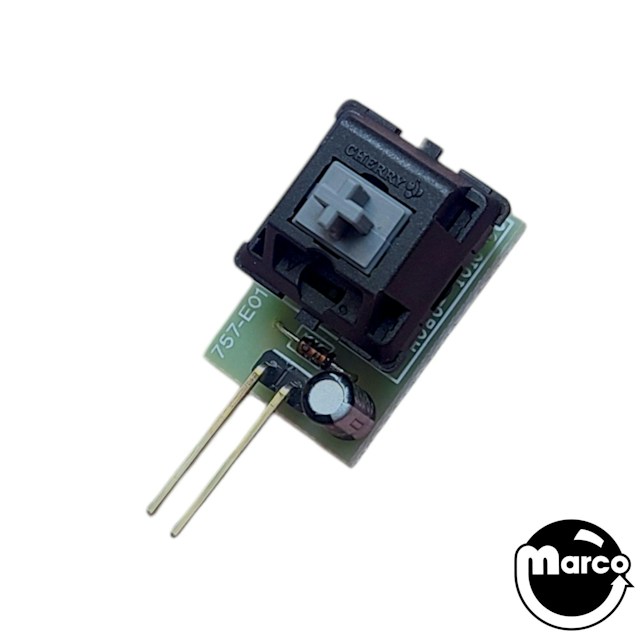

Modular target switch printed circuit board sub assembly.

Internal circuit board with pushbutton switch, diode, capacitor and connector assembly used in all plastic housing modular style switches.

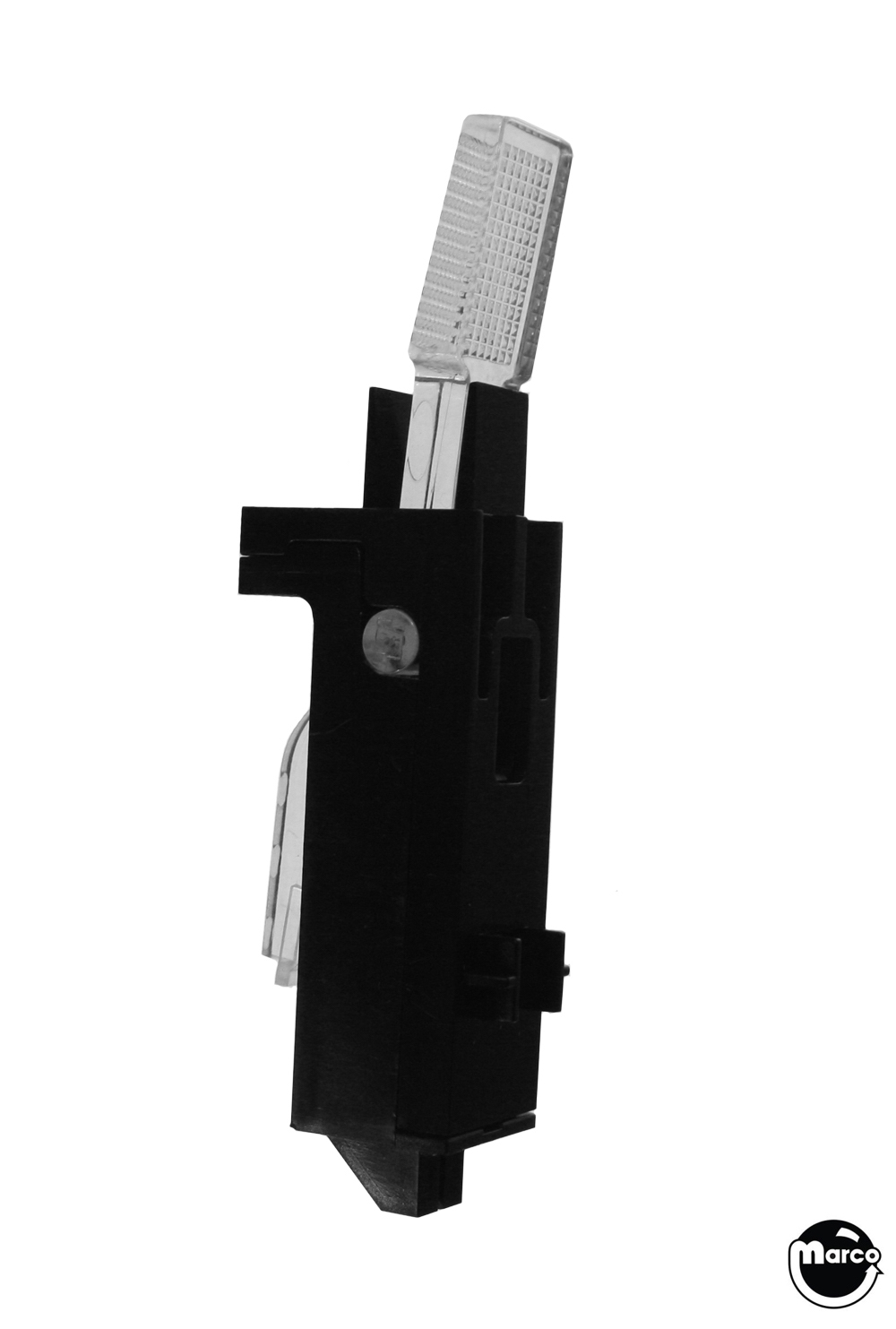

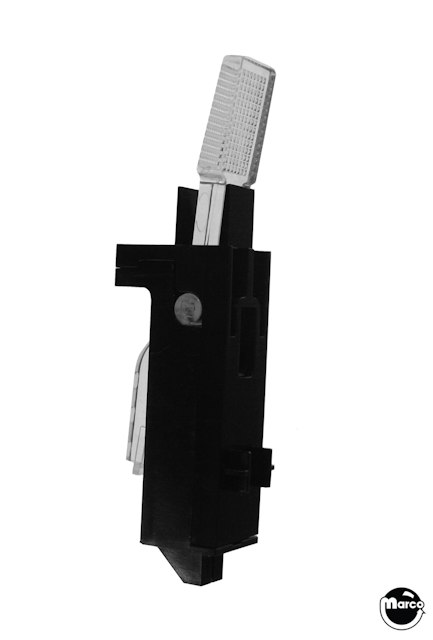

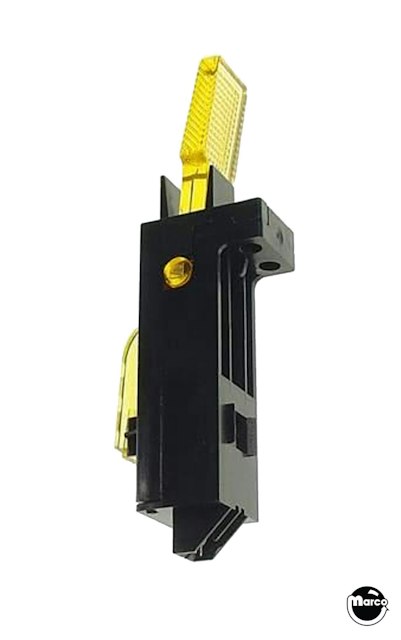

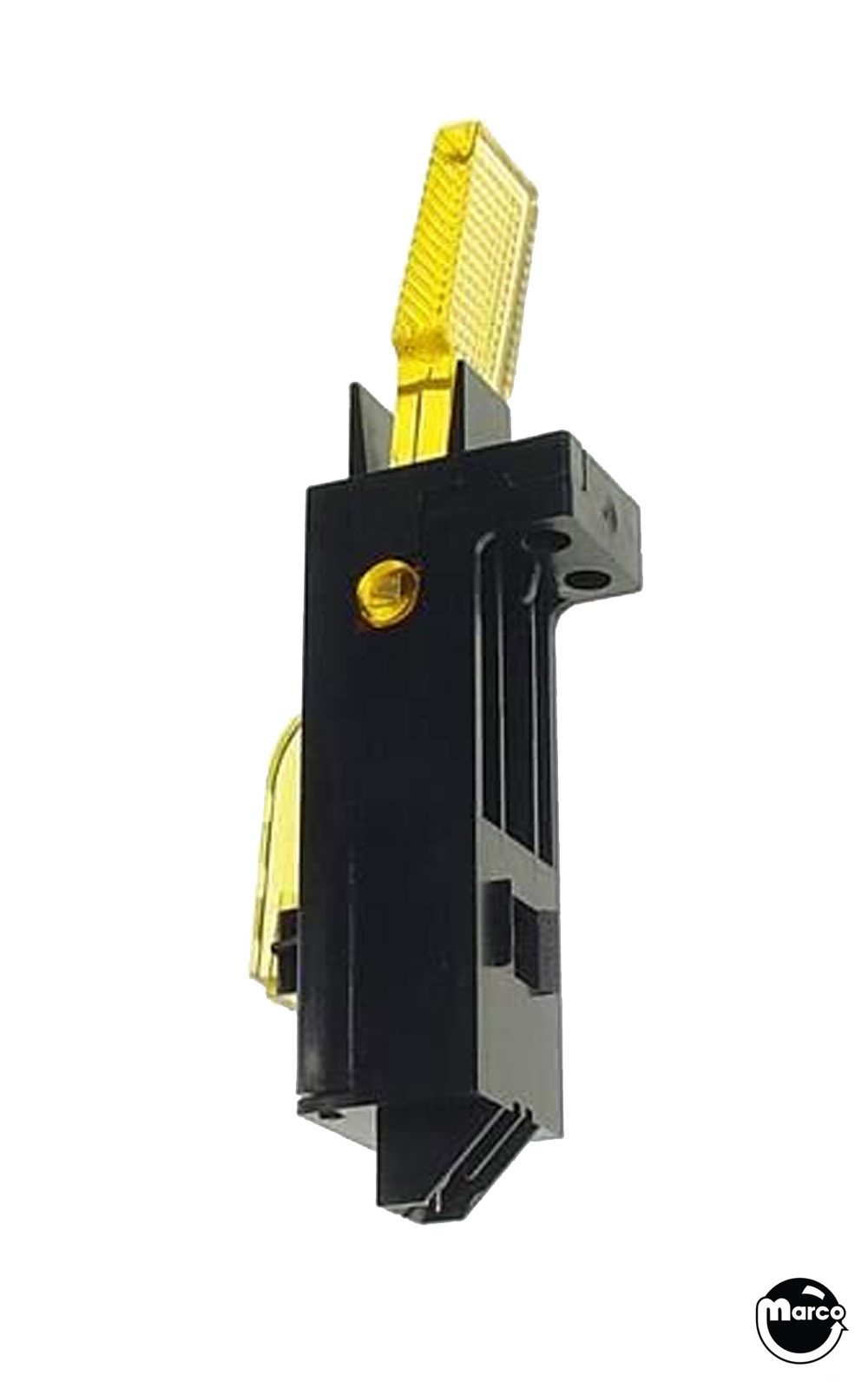

Used in the following modular target switches:

• 500-6138-01
• 500-6138-02
• 500-6138-04
• 500-6138-06
• 500-6138-11
• 500-6139-02
• 500-6139-04
• 500-6139-09
• 500-6139-11
• 500-6228-02
• 500-6228-05
• 500-6228-06
• 500-6075-01
• 500-6075-02
• 500-6075-03
• 500-6075-09
• 500-6075-11
• 500-6189-02
• 500-6189-03

  Reference:

  • 757-E01
