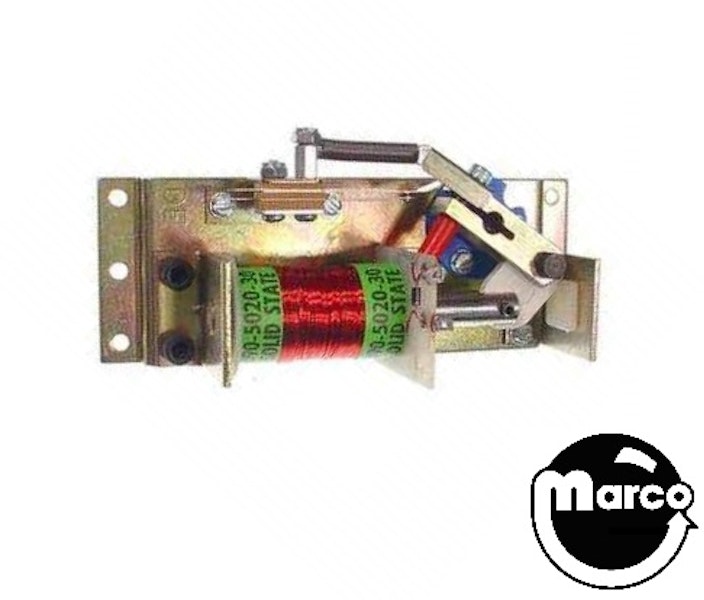

Data East left side flipper assembly with 090-5020-30 coil.
Ships un-assembled.
Reference:
500-5693-02 left side
500-5693-01 right side
Flipper bushing DE/Sega/Stern 1/4 ID notched 545-5070-00
Machine screw 6-32 x 3/8 inch sl-hwh HTT-004 234-5000-00
Screw 10-32 x 5/8" socket head 232-2206-12
Bracket - flipper spring DE right 535-6663-01
Spring - extension flipper return 1-5/8 inch 265-5029-02
Bracket - flipper spring switch DE 535-6469-00
Flipper base plate Data East/Sega left 515-5077-02
Coil stop Data East/Sega 515-5346-00
Machine Screw 1/4-20 x 3/8 inch socket head R/A 237-5861-00
Spring washer .531 x .75 x 1 inch 269-5002-00
Coil - flipper with diode DE/Sega/Stern 090-5020-30
Coil bracket notched flipper 515-5129-00
Sheet metal screw No.8 x 3/8 inch pl-hwh-a 4108-01115-06
Plunger link & pawl Data East/Sega 515-5051-00
Roll pin 5/32 x 7/16 inch 20-9370-1
Crank arm block 530-5070-00
Shoulder bolt 8-32 x 7/16 inch shaft 231-5019-00
Shoulder bolt 10-24 x 7/16 inch shaft 231-5019-01
Bracket - coil mount 535-5279-00
Grommet - button bumper 545-5105-00
