Coin door assembly Sega/Stern Whitestar USE 501-5018-173

#500-5018-172
Availability
For Reference
Order
This product is currently discontinued. Email me if it becomes available
Product details

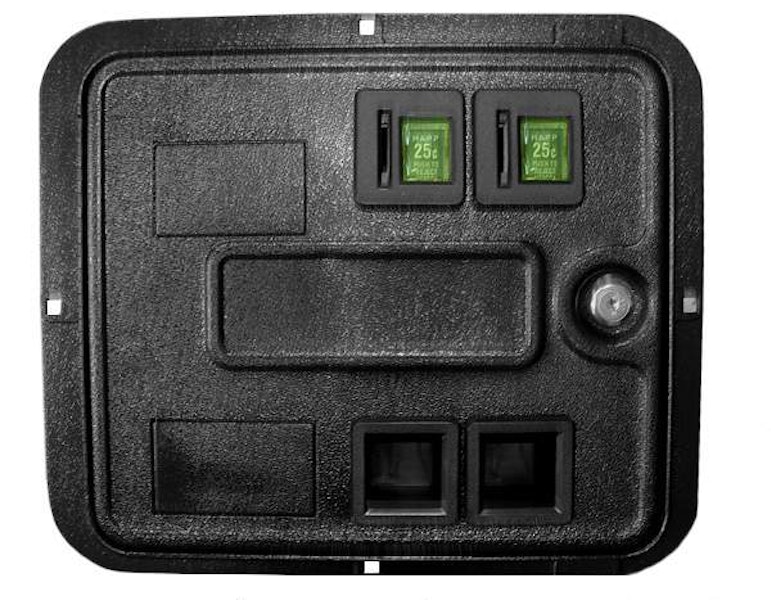

Stern / Sega Whitestar System style pinball machine coin door includes frame, coin mech holders, coin switches, coin slot lamps and lamp sockets, lock and keys. 3 button service switch.

Coin mechanisms are not included.

Standard OEM (original equipment manufacturer) two-slot replacement coin door for Stern Whitestar System pinball machines.

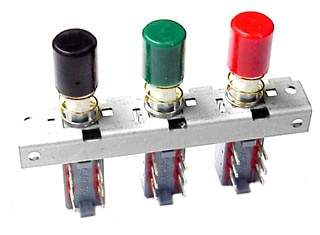

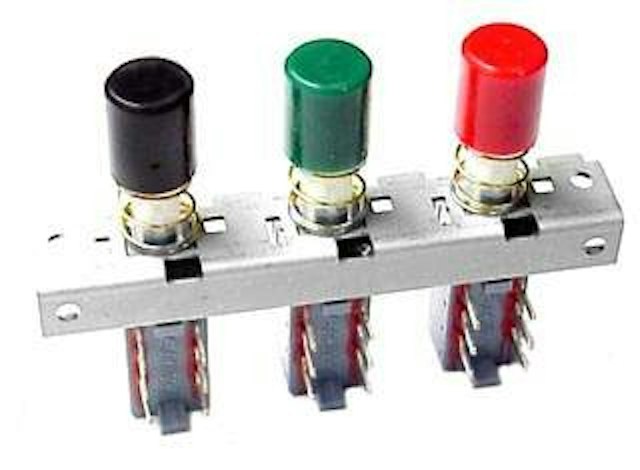

Includes frame, 3 button service switch assembly, lock and keys, slam-tilt switch, coin mechanism mounting brackets and wiring harness.

Coin mechanisms not included but available separately.

If you would also like new hardware for your door, the following is what was used to attach the door to the cabinet:

  • Qty 4 231-5003-00 Carriage bolt - 1/4-20 x 1 - 1/4" (4320-1123-20B)

  • Qty 4 4420-01141-00 Nut - 1/4-20 serrated flanged nut

  • Qty 4 4700-00041-00 Washer - .312 x .750 x .06.
    Reference:

    Instructions for mounting optional upstacker bill validators:

    This coin door will accommodate the following manufacturers' bill validators:

    • MEI model Series 2000 upstacker

    • ICT model A6, S6, PAT Series upstackerr

    • Pyramid model APEX 5000-U, XLC 5000-U series upstacker

    Instructions

    1. Remove 2 bottom hex nuts (E & F) from bottom studs and remove 2 white spacers (retain both for later use)

    2. Remove 2 hex nuts (C & D) from middle studs

    3. Remove the blanking plate from the door

    4. Place the 2 white spacers removed in step No.1 over the 2 long studs at the bottom of the door (E & F)

    5. Remove the 2 top hex nuts (A & B) from top long studs and keep the existing 2 white spacers on the 2 long studs (A & B)

    6. Place the upstacker bill validator over the 4 studs with spacers on them (A, B, E & F)

    7. Place ground wire coming from the bill validator unit on the ground stud

    8. Secure hex nuts (A, B, E & F) removed in steps No.1 and No.2
